Nokia FXED
HUAWEI
HUAWEI RRU3936
HUAWEI RRU3936
HUAWEI RRU3936

HUAWEI RRU3936 900MHz 02310MNP

RRU3936 Radio Unit(900MHz PGSM/-48V)

RRU3936 for Multi-mode Radio Unit(900MHz EGSM)

RRU3936 for Multi-mode(1800MHz) Spare Part

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

HUAWEI RRU3936 900MHz 02310MNP

Product Description

HUAWEI RRU3936 is a Remote Radio Unit RRU designed for Huawei BTS Base Transceiver Station equipment. It operates in the 900MHz and 1800MHz frequency bands and supports EGSM Extended Global System for Mobile Communications technology.

The HUAWEI RRU3936 is used to extend the coverage and capacity of a BTS by providing radio connectivity in the specified frequency bands. It connects to the BTS equipment through a wireless link, enabling communication with mobile devices within its coverage area.

Modes and frequency bands supported by an RRU3936

Type

Capacity

Maximum Output Power

Typical Output Power

RRU3936 (850 MHz)

GSM: 8 carriers

UMTS: 6 carriers

LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.

LTE NB-IoT: 1 carrier

1x80 W

For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) and NB-IoT Typical Power Configurations (RRU).

RRU3936 (900 MHz)

GSM: 8 carriers

UMTS: 6 carriers

LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.

LTE NB-IoT: 1 carrier

1x80W

For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) and NB-IoT Typical Power Configurations (RRU).

RRU3936 (1900 MHz)

GSM: 8 carriers

UMTS: 6 carriers

LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.

1x80W

For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) .

RRU3936 (1800 MHz)

GSM: 8 carriers

LTE FDD: 2 carriers. The bandwidth per carrier is 1.4, 3, 5, 10, 15, or 20 MHz.

LTE NB-IoT: 1 carrier

1x80W

For details, see Typical Power Configuration Reference for RRU (Excluding NB-IoT) and NB-IoT Typical Power Configurations (RRU).

 Receiver sensitivity of an RRU3936

Type

TX/RX Channel

Receiver Sensitivity with One Antenna (dBm)

Receiver Sensitivity with Two Antennas (dBm)

RRU3936

1T2R

GSM:
  • 850 MHz: -113.4
  • 900 PGSM: -113.7
  • 900 EGSM: -113.7
  • 1800 MHz: -114.0
  • 1900 MHz: -113.7
UMTS:
  • 850 MHz: -125.5
  • 900 PGSM: -125.8
  • 900 EGSM: -125.8
  • 1900 MHz: -125.8
LTE FDD:
  • 850 MHz: -106.0
  • 900 PGSM: -106.3
  • 900 EGSM: -106.3
  • 1800 MHz: -106.6
  • 1900 MHz: -106.3

LTE NB-IoT: -127.3

GSM:
  • 850 MHz: -116.2
  • 900 PGSM: -116.5
  • 900 EGSM: -116.5
  • 1800 MHz: -116.8
  • 1900 MHz: -116.5
UMTS:
  • 850 MHz: -128.3
  • 900 PGSM: -128.6
  • 900 EGSM: -128.6
  • 1900 MHz: -128.6
LTE FDD:
  • 850 MHz: -108.8
  • 900 PGSM: -109.1
  • 900 EGSM: -109.1
  • 1800 MHz: -109.4
  • 1900 MHz: -109.1

LTE NB-IoT: -130.1

Dimensions and weight of an RRU3936

Type

Dimensions (H x W x D)

Weight (kg)

RRU3936

400 mm x 300 mm x 100 mm (12 L, without the housing)

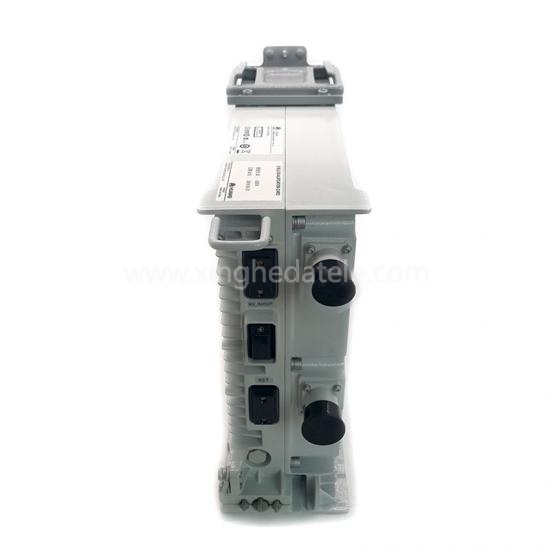

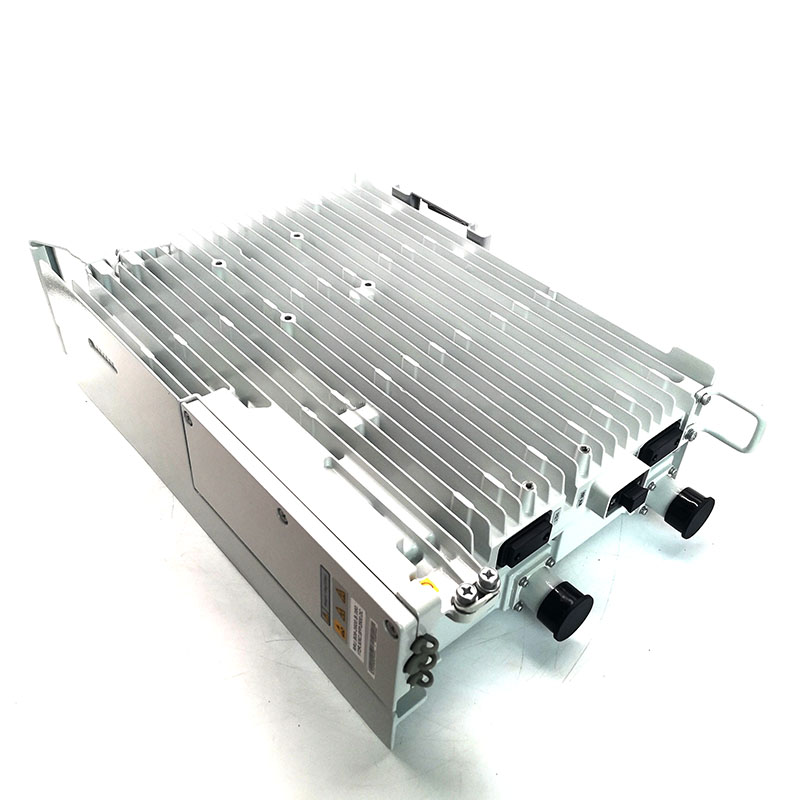

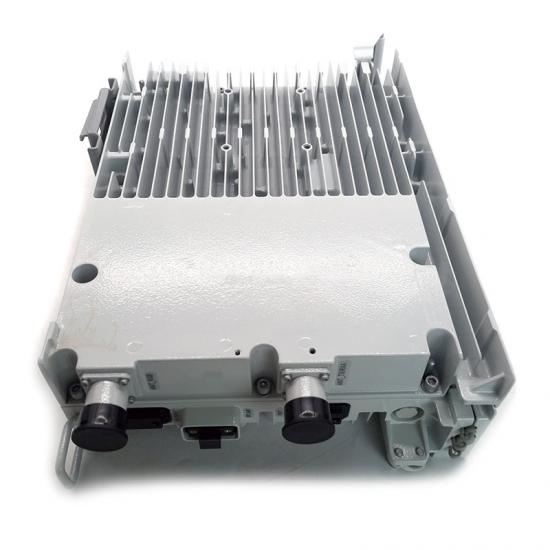

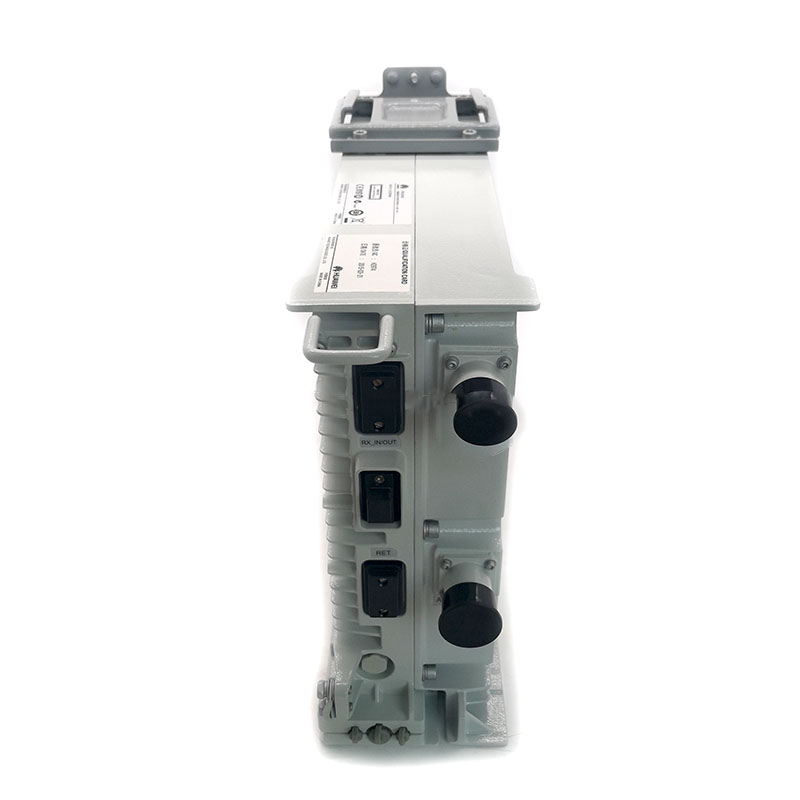

Product Details

HUAWEI RRU3936

HUAWEI RRU3936

Our Advantages

We have HUAWEI RRU3936-900 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


HUAWEI RRU3936-900, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


HUAWEI RRU3936-900 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
