Nokia EXGA
Nokia EXGA

Nokia BTS in Telecommunication Flexi EDGE EXGA GSM900 470215A.101

EXGA includes baseband and RF parts [two carriers this module contains the general (2 carrier) baseband part and two part has two independent RF transceiver (transmitter and receiver chain)]

  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Nokia BTS in Telecommunication Flexi EDGE EXGA GSM900 470215A.101

Product Description

BOIA 467868A 467868A.102 467868A.103
467868A.104 467868A.105
467868A.106 467868A.107
467868A.108
The system unit
BB2A 467869A 467869A.105 467869A.106
467869A.107
Transceiver baseband board
BB2E 468131A 468131A.202 Transceiver baseband board
BB2F 469643A 469643A.102 469643A.103
469643A.202
Transceiver baseband board
VXEA 467201A 467201A.101 467201A.102
467201A.103 467201A.104
467201A.105
The transmission unit(MC E1/T1)
VXTA 467612A 467612A.103 467612A.104
467612A.106 467612A.107
467612A.108 467612A.109
The transmission unit(MXC E1)
VXTB 467611A 467611A.104 467611A.105
467611A.107 467611A.108
467611A.109
The transmission unit(MXC E1/T1))
VXRA 467537A 467537A.101 The transmission unit(MC RRI))
VXRB 467610A 467610A.103 467610A.104
467610A.107 467610X.2
The transmission unit(MXC RRI))
TSGA 467800A 467800A.105 467800A.106
467800A.107 467800A.108
Carrier unit(900MHz)
TSGB 468704A 468704A.104 468704A.105
468704A.206 468704A.207
468704A.209 468704A.413
Carrier unit(EDGE900 MHz)
TSDA 467828A 467828A.106 467828A.107
467828A.108 467828A.110
Carrier unit(1800MHz)
TSDB 469089A 469089A.207 469089A.209
469089A.411
Carrier unit(EDGE1800 MHz)
DVGA 468216A 468216A.101 468216A.102
468216A.103 468216A.104
Combiner unit(900MHz band)
DVHA 468217A 468217A.101 468217A.102
468217A.103 468217A.104
Combiner unit(900MHz H band)
DVDA 468219A 468219A.102 468219A.103
468219A.104 468219A.105
468219A.106
Combiner unit(1800MHz A band)
DVDB 468220A 468220A.103 468220A.104 Combiner unit(1800MHz B band)
DVDC 468619A 468619A.101 468619A.102
468619A.103 468619A.104
Combiner unit(1800MHz band)
DVJA 468218A 468218A.101 468218A.103
468218A.104
Combiner unit(900MHz J band)
RTCC 465369A 465369A.203
RTDA 467858A 467858A.102 467858A.103
467858A.104
Remote tune combiner(1800MHz A band)
RTDB 467859A 467859A.102 467859A.103 Remote tune combiner(1800MHz B band)
RTDC 468721A 468721A.101 468721A.102
468721A.103
Remote tune combiner(1800MHz band)
RTGA 467857A 467857A.102 467857A.103
467857A.104 467857A.105
Remote tune combiner(900MHz band)
RTHA 467861A 467861A.101 467861A.102 Remote tune combiner(900MHz H band)
RTJA 467862A 467862A.102 467862A.104 Remote tune combiner(900MHz J band)
WCDA 467834A 467834A.101 467834A.102
467834A.103 467834A.104
Wideband combiner(GSM1800MHz)
WCGA 467833A 467833A.101 467833A.102
467833A.103
Wideband combiner(GSM900MHz)
WCGT 470327A 470327A.101
M2LA 468530A 468530A.105 468530A.106
468530A.107 468530A.108
468530A.109
Receiver multicouplers(800/900MHz)
M6LA 468531A 468531A.101 468531A.102
468531A.104 468531A.105
468531A.106
Receiver multicouplers(800/900MHz)
M2HA 468532A 468532A.101 468532A.105
468532A.107 468532A.108
468532A.109
Receiver multicouplers(1800/1900MHz)
M6HA 468533A 468533A.104 468533A.105
468533A.106
Receiver multicouplers(1800/1900MHz)
PWSA 467865A 467865A.104 467865A.105
467865A.206
Power(220V AC)
PWSB 467866A 467866A.102 467866A.103
467866A.105 467866A.106
467866A.209 467866A.210
467866A.211 467866A.212
Power(24V DC)
PWSC 468664A 468664A.101 468664A.103
468664A.104
Power(-48V DC)
RFU 063912A 063912A.101 063912A.103
063912A.104
Cabinet backplane
COMMON 082126A 082126A.101 082126A.102 Cabinet backplane
FAN 066971A 066971A.101 066971A.102
066971A.103 066971A.104
Fan
ESMA 470246A 470246A.102 470246A.103 470246A.104 470246A.105 470246A.106 System module
ESEA 470330A 470330A.102 470330A.103 470330A.104 470330A.105 System expansion modules
FIEA 470247A 470247A.102 Transmission module (E1, SMB)
FIFA 471007A 471007A.105 Transmission module (microwave interface 1X)
FIPA 470248A 470248A.101 470248A.102 470248A.103 Transmission module (E1/T1, RJ45)
EOCA 471576A 471576A.101 Optical fiber remote unit
EXDA 470216A 470216A.101 470216A.102 470216A.103 Dual carrier unit (1800MHz)
EXDB 472045A 472045A.101 472045A.102 472045A.103 472045A.104 Dual carrier unit (E-EDGE, 1800MHz)
EXGA 470215A 470215A.101 470215A.102 470215A.103 Dual carrier unit (900MHz)
EXGB 472044A 472044A.101 472044A.102 472044A.103 Dual carrier unit (E-EDGE, 900MHz)
EWDA 470256A Wideband combiner (1800MHz)
EWDB 471493A 471493A.101 471493A.102 Wideband combiner (1800MHz)
EWGA 470255A 470255A.101 Wideband combiner (GSM800MHz/900MHz)
EWGB 471492A 471492A.101 471492A.102 471492A.105 Wideband combiner (900MHz)
ERDA 470253A 470253A.101 470253A.102 Combiner (1800MHz)
ERGA 470250A 470250A.101 470250A.102 Combiner (900MHz)
ECDA 470260A 470260A.101 Narrow band combiner (1800MHz)
ECGA 470258A 470258A.101 Narrow band combiner (900MHz)
FPAA 470140A 470140A.101 470140A.102 470140A.204 Power supply (230VAC/48VDC)
FPAB 471279A 471279A.103 Power supply (230VAC/48VDC)
FPDA 470067A 470067A.102 Power (DC/DC 24~48V supply)
FSEB 471424A 471424A.202 471424A.203 471424A.304 External alarm collection
FAN 083180A 083180A.101 083180A.103 083180A.104 083180A.10X Fan
ESMB 472109A 472109A.101 472109A.102 System module (18TRX)
ESMC 472059A 472059A.101 472059A.102 System module (36TRX)
FXDA 472083A 472083A.101 472083A.102 472083A.203 472083A.X51 RF module (18 frequency 900MHz)
FXEA 472084A 472084A.101 472084A.102 472084A.203 RF module (18 frequency 1800MHz)
FHDA 472132A 472132A.102 472132A.203 RF module (12 frequency 900MHz) support a total cell
FHDB 472649A 472649A.102
FHEA 472168A 472084A.101 472168A.102 472084A.203 RF module (12 frequency 1800MHz) support a total cell
FAN Assy 084594A 084594A.106

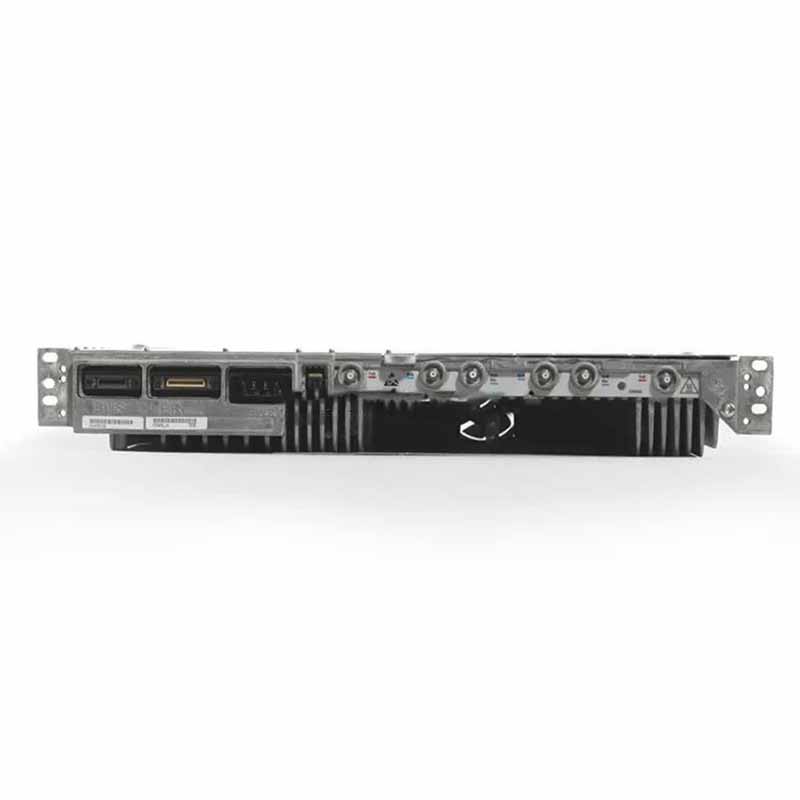

EXGA – GSM900

EXGA consists of two independent EDGE carrier.

1. Double TRX module (DTRX) is a dual carrier TRX unit.

2. EXGA includes baseband and RF parts [two carriers this module contains the general (2 carrier) baseband part and two part has two independent RF transceiver (transmitter and receiver chain)]

3. Each of the 3 carriers were activated by licence key (each with double TRX transceiver module are available on BSC license key activation alone)

4. EXGA module for dual duplexer module combination, form a logical sector module

5. EXGA is used to remote tune combiner (RTC) single TRX module(Nokia EXGA 470215A.101

6. EXGA was used as the extension of TRX module.

7. EXGA can be installed two broadband combiner (EWGB) is an optional two multi frequency combiner (WBC) space

8. Double TRX module and the system communication module is controlled by a single Ethernet interface.

9. EXGA including Power cable, Bus cable cable, RF cables.

Double TRX module contains two transceiver can be used:

› In the same sector as a separate TRX (in the sector of module in the TRXs in the same sector);

› In different sectors as a separate TRX (by Sector module, different in the expansion of double TRX module in the TRX can be connected to the two sector);

› Or as a dual power TRX (synchronous way, two transmitters to a TRX with double the output power and the single TRX capacity).

GSM wireless base station for Nokia Flexi EDGE EXGA 470215A.101 in stock.

Nokia Flexi EDGE is an indoor macro base station, we have all version in this store.

If you need more information, pls directly contact us through online tool or other way you prefer to.
