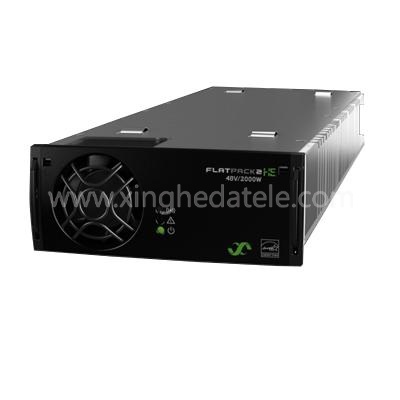

Eltek 241115.200：Flatpack2 24/2000
Product Details
| Item | Specifications |

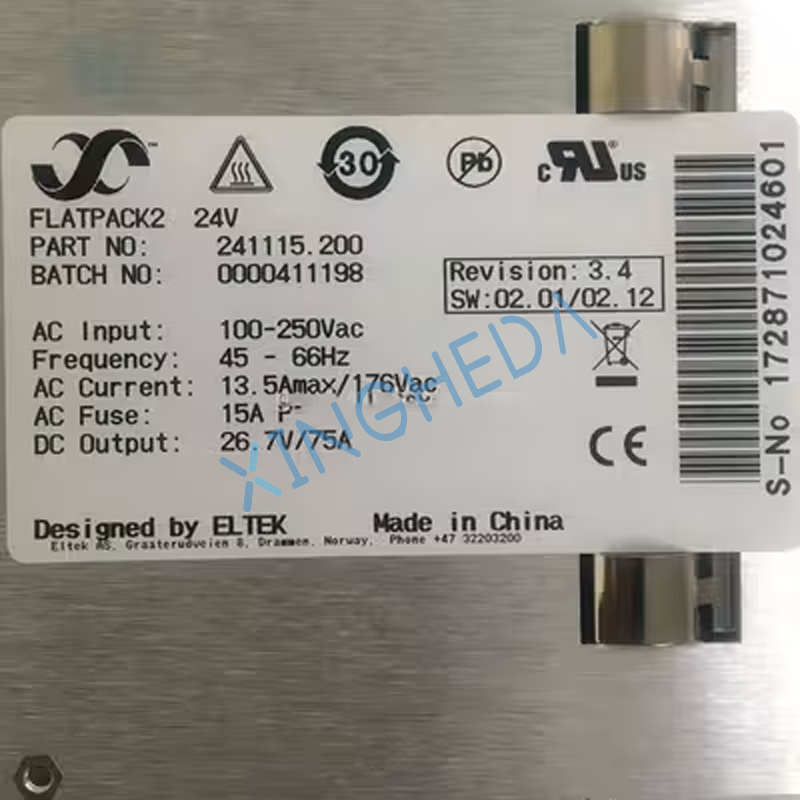

| Part Number | 241115.200, Model: Flatpack2 24/2000Made-in-Ch... |
| AC Input | |
| Operating Voltage Range | 85‑290 VAC; Nominal:100‑250 VAC |
| AC Frequency | 44‑66 Hz |
| Max Input Current | 13 Arms (full‑load nominal input) |
| Power Factor | ≥0.99 at full loadAlibaba |
| DC Output | |
| Rated Output Power | 2000 W (nominal AC input) |
| Default Output Voltage | 26.7 VDC; Adjustable range: 21.0‑29.0 VDC |
| Max Output Current | 84 A |
| Static Voltage Regulation | ±0.5 % (10‑100 % load) |
| Current Sharing | ±5 % between parallel modules |
| Typical Efficiency | Up to 92.5 %‑95 % |
| Ripple & Noise | <100 mVpp (30 MHz bandwidth) |
| Protection Features | Over‑voltage shutdown, short‑circuit proof, over‑temperature protection, low‑mains shutdown, inrush‑current limiting, internal OR‑blocking diode, fan failure alarm |
| Communication & Status | CAN‑bus interface; Red alarm‑LED, yellow warning‑LED for status indicationteknica.cl |
| Isolation | Input‑to‑Output:3.0 kVAC; Input‑to‑Earth:1.5 kVAC; Output‑to‑Earth:0.5 kVDC |
| Mechanical | |
| Dimensions(W×H×D) | 109 × 41.5 × 327 mm |
| Weight | 1.9 kg / 4.19 lbs |
| Installation | Hot‑swappable, plug‑in for Flatpack2 system shelvesDelta |
| Standards | IEC 60950‑1, UL 60950‑1, ETSI EN 300 386, EN 61000‑6‑4 |
Flatpack2 mainstream communication rectifier module:
1.48V series:
241114.100：Flatpack2 48/1500
241114.105：Flatpack2 48/1500 HE
241115.001：Flatpack2 48/2000
241115.100：Flatpack2 48/2000
241115.105：Flatpack2 48/2000 HE
241115.650：Flatpack2 48/1500 HE SOLAR
241119.100：Flatpack2 48/3000
241119.105：Flatpack2 48/3000 HE
2.24V Series
241115.200：Flatpack2 24/2000
