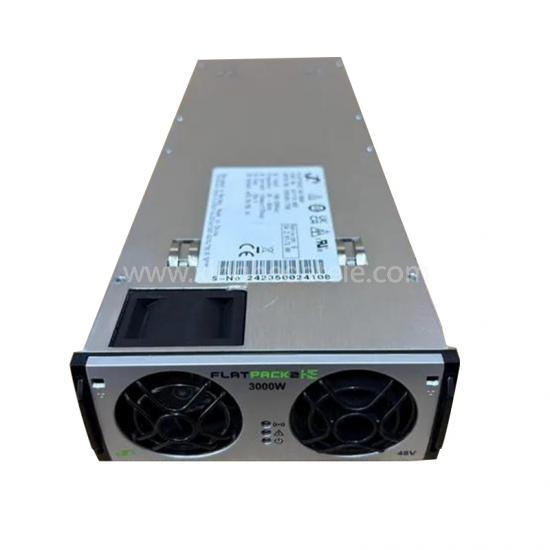

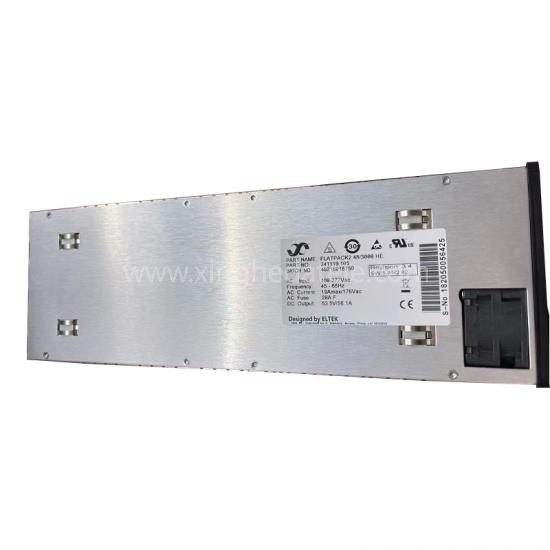

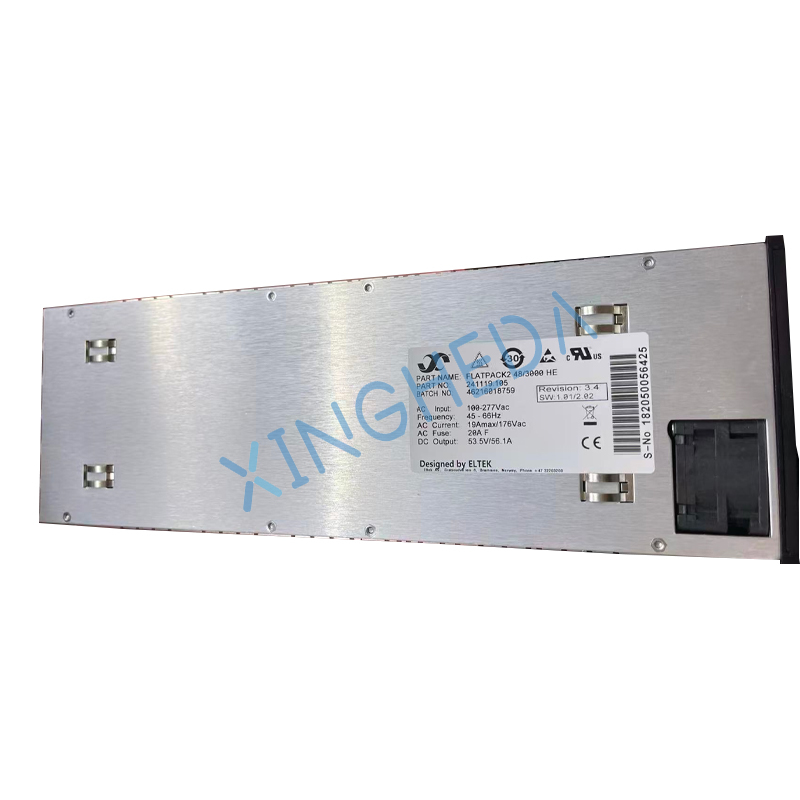

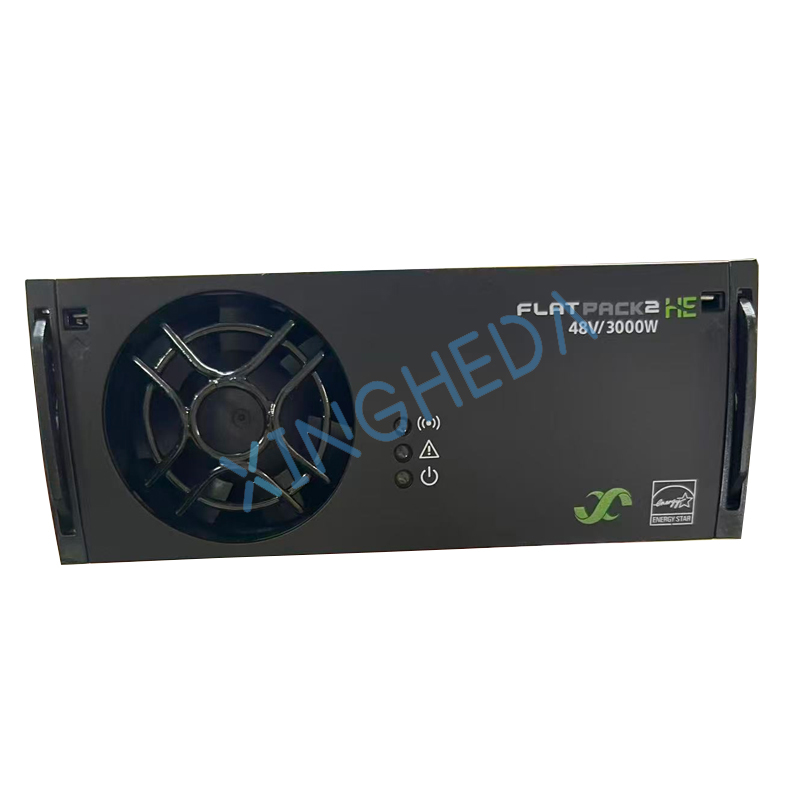

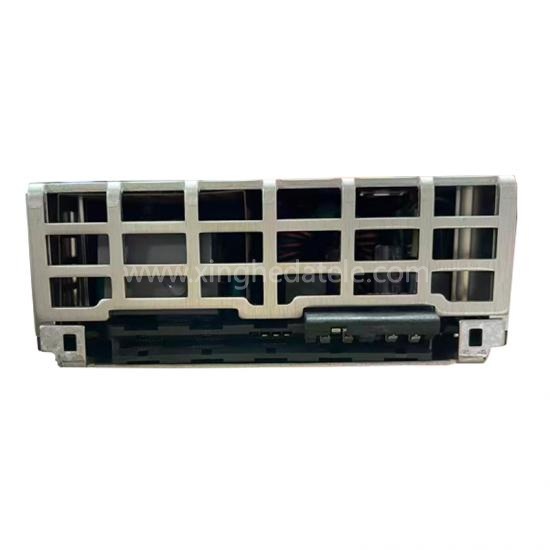

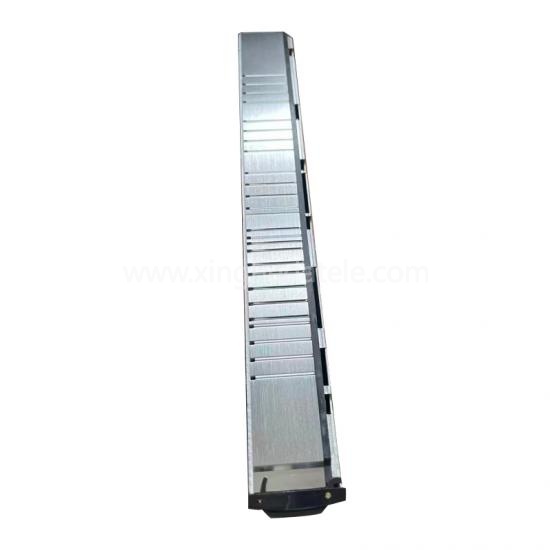

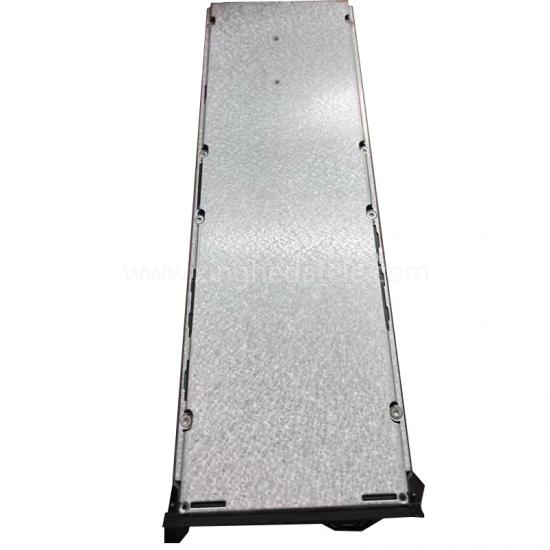

Eltek Rectifier Module 48V 3000W Eltek Flatpack2 48/3000 241119.105

Eltek Rectifier Module 48V 3000W Eltek Flatpack2 48/3000 241119.105

Product Details

Parameter	Value
Nominal Voltage	48VDC (default: 53.5 VDC)
Adjustable Range	43.2–57.6 VDC
Max Power	3000W @ 230VAC; 1380W @ 85VAC
Max Current	62.5 A @ 48VD
Efficiency	95–96.5% (230VAC, 50–100% load)
Static Regulation	±0.5% (10–100% load)
Dynamic Regulation	±5% (10–90% load step, <50ms response)
Ripple	<150 mVpp (30MHz bandwidth)
Current Sharing	±5% (10–100% load)
Dimensions (W×H×D)	109 × 41.5 × 327 mm (4.25 × 1.69 × 13")
Weight	1.85–1.95 kg (4.1–4.3 lbs)
Operating Temp	-40°C to +75°C (derating >55°C)

Model & Part Numbers

• Model: Flatpack2 48/3000 HE
• Part Numbers:
  • 241119.105 (Standard HE, global)
  • 241119.902 / 241119.903 (CC HE, China grid optimized)

Key Features

• High Efficiency: Up to 96.5% (230VAC, 50–100% load), ~50% lower losses than conventional modules.
• High Power Density: 33 W/in³, compact 1U form factor saves cabinet space.
• Digital Control: Full digital monitoring/control with CAN bus for remote configuration & managementEltek.
• Wide Operating Range: -40°C to +75°C, robust for harsh environments.
• Hot-Swappable: Tool-less insertion/removal for easy maintenanceEltek.
• Full Protection: OVP, UVP, OCP, short-circuit, over-temperature, and fan-failure protection.

FAQ

Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.

Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
