Ericsson Baseband 6631 KDU 137 0071/11 BBU Base Station

Ericsson Baseband 6631 KDU 137 0071/11
Ericsson Baseband 6631 KDU 137 0071/11
Ericsson Baseband 6631 KDU 137 0071/11
Ericsson Baseband 6631 KDU 137 0071/11

Ericsson Baseband 6631 KDU 137 0071/11 BBU Base Station

Ericsson Baseband 6631 (KDU 137 0071/11) is a 19-inch rack-mountable RAN baseband unit supporting multi-RAT (GSM/WCDMA/LTE/NR) with 5Gbps/1Gbps throughput, dual -48V DC power, and 4 QSFP28 + 1 RJ45 interfaces, ideal for 4G/5G mixed - mode deployment.


Large stock available for immediate shipping. Contact us now to get a real-time quote and technical data sheet within 24 hours!

  • Min.Order Quantity:

    1pc

  • Price:

    Negotiable

  • Delivery Time:

    3-5 days

  • warranty time:

    six months

  • Place of Origin:

    China

  • Payment Terms:

    T/T, Western Union, MoneyGram
Inquiry now
  • Share To :
  • Facebook
  • Linkedin
  • Youtube
  • Pinterest

Ericsson Baseband 6631 KDU 137 0071/11 BBU Base Station

Product Description


Category Details
Mechanical Dimensions: 483mm (W) × 44mm (H) × 383mm (D); Weight: 7kg; Mounting: 19" rack; Cooling: Self - contained; Protection: IP20
Electrical Power Input: Dual -48V DC (redundant); Typical Power: 130W

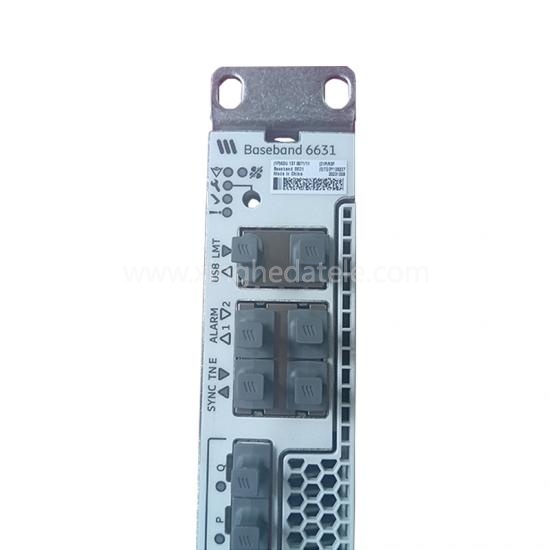

Interfaces 4 × QSFP28 (for CPRI/eCPRI, 1G/10G SFP+ compatible); 1 × 1Gbps RJ45 (management/transport)
Environmental Operating Temperature: 0°C - 55°C; Storage Temperature: -40°C - 70°C; Humidity: 5% - 95% (non - condensing)
Compliance Safety: IEC/EN 62368 - 1; EMC: ETSI EN 301489 - 1 (Class B); NEBS: GR - 63; Certification: CE

Performance & Capacity

  • User Capacity: Up to 1,000 users per sector, well - suited for high - density areas like stadiums and business districts.
  • Cell Support: Can handle multiple cells (dependent on RAT mix and configuration).
  • Throughput: 5Gbps fabric/1Gbps access, enabling high - speed data transfer for 5G services.

Deployment Scenarios

  • 5G Standalone (SA): Supports NR FR1 (n78, 3.3-3.8GHz) and other bands for 5G SA networks.
  • 4G/5G Non - Standalone (NSA): Works seamlessly with LTE eNBs to provide 5G coverage.
  • Multi - RAT Mixed Mode: Allows the coexistence of GSM, WCDMA, LTE, and NR on a single unit, optimizing spectrum usage.


Product Details

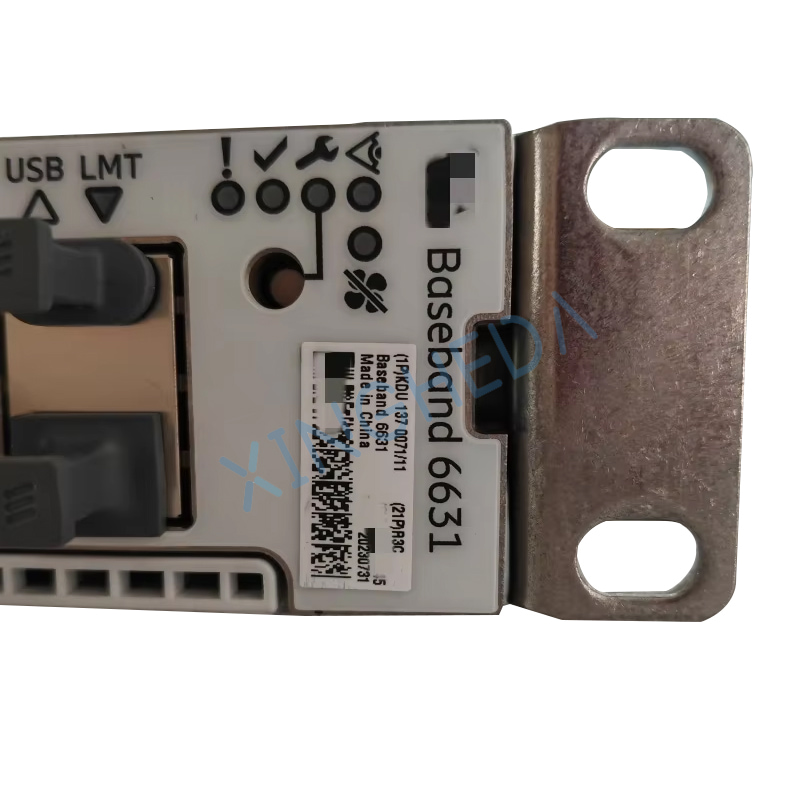

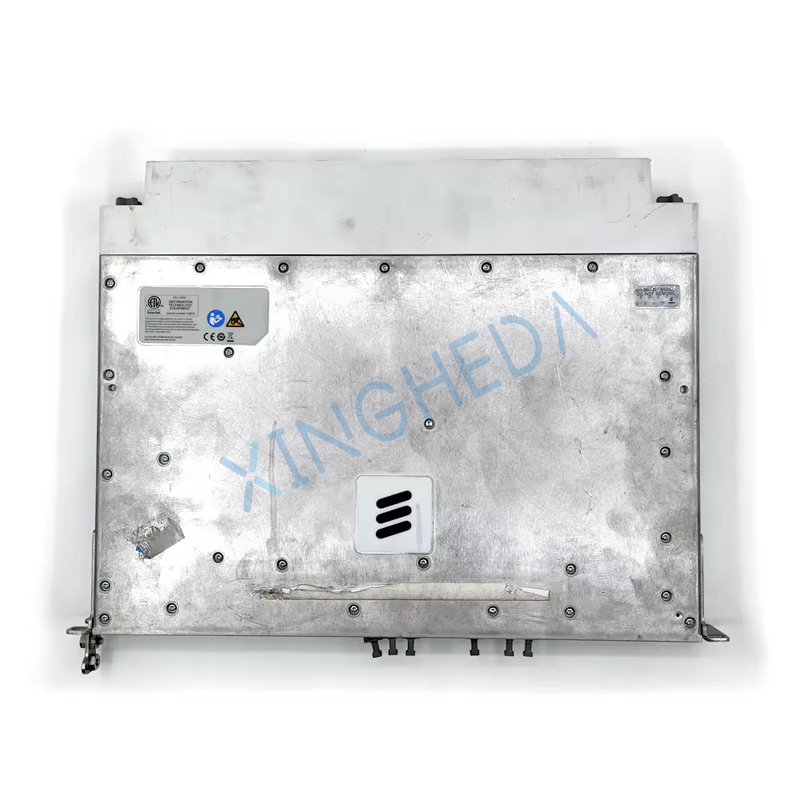

Ericsson 6631

Ericsson 6631


FAQ

Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.

Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
