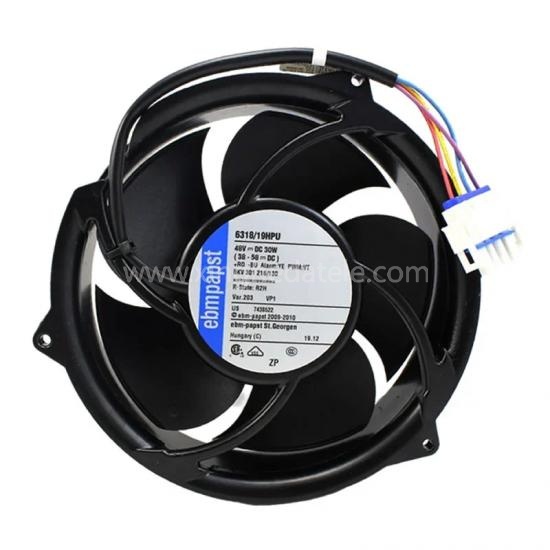

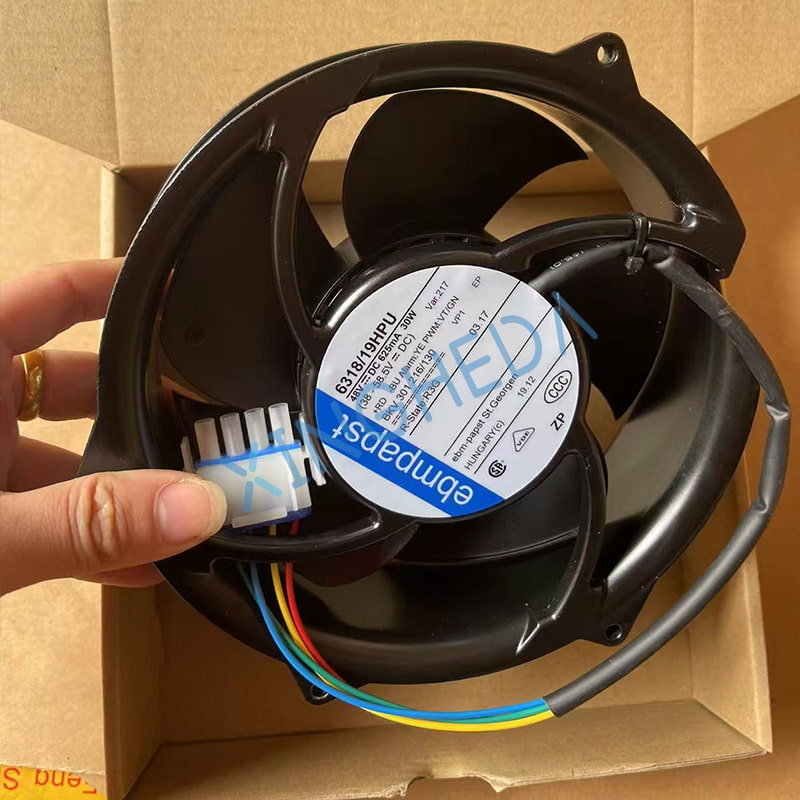

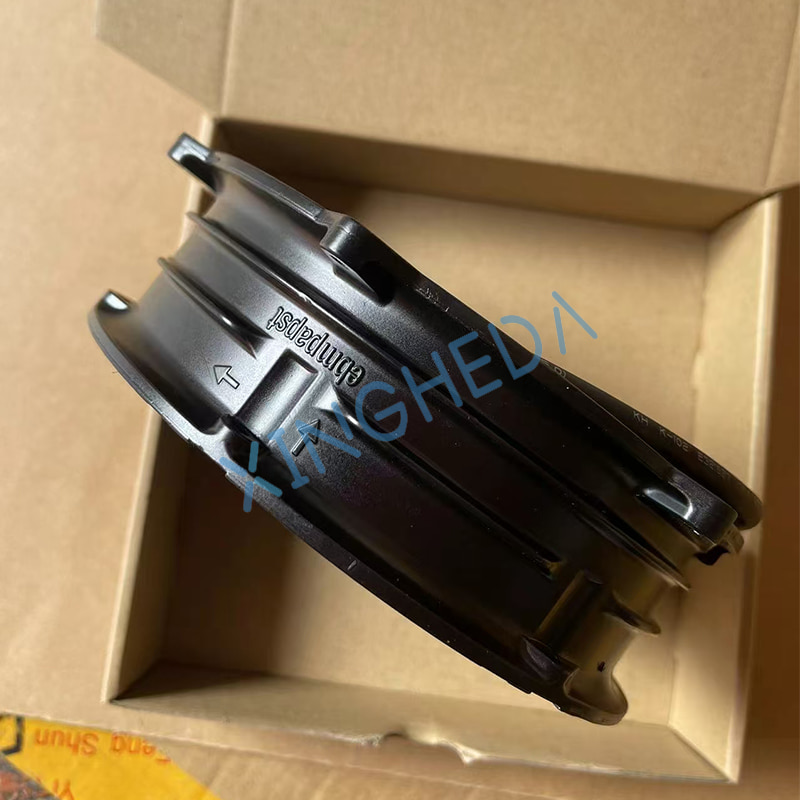

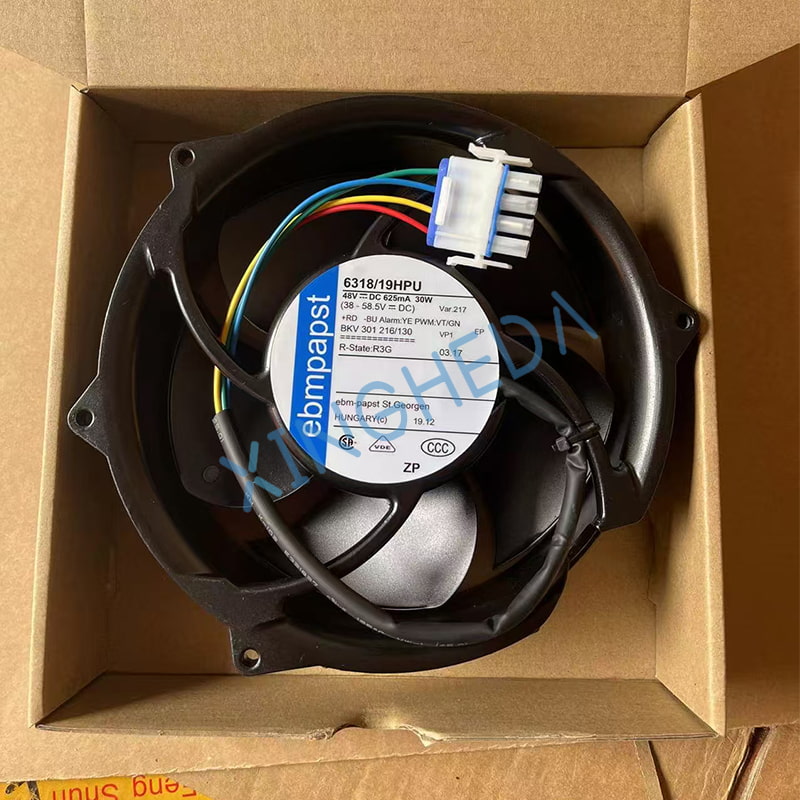

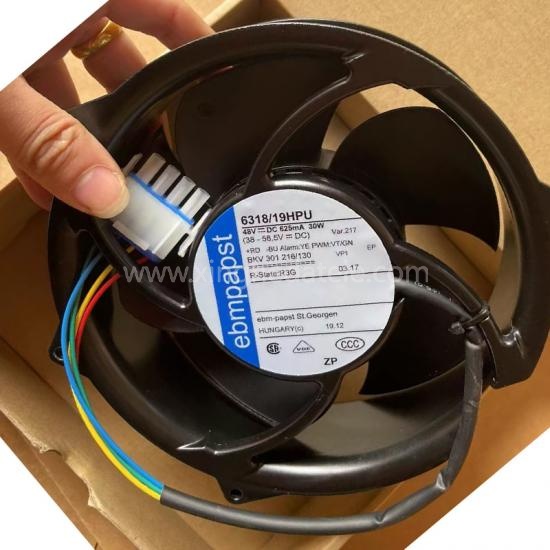

Ericsson External Fan Module Nidec BKV 301 216/130 Y17L48BS2AA5-09E02 48.0 VDC 6318/19HPU
Product Details
BKV301 216/130 is an original OEM DC axial cooling fan customized for Ericsson outdoor GSM macro base station cabinets, mass-produced by two authorized subcontractors: Nidec (Model:Y17L48BS2AA5-09E02) and EBM‑PAPST (Model:6318/19HPU).
It is a standard thermal control spare part for Ericsson RBS2206, RBS2308, RBS3418 series outdoor telecom cabinets, responsible for forced air cooling of power modules, transceiver units and indoor climate control system.
Equipped with 4‑wire PWM speed regulation + FG tachometer feedback circuit, the fan realizes real‑time rotating speed monitoring and fault alarming via baseband mainboard, automatically adjusting rotation speed following cabinet inner temperature to optimize power consumption and noise performance.
Adopts double ball bearing and reinforced aluminum alloy frame with dustproof & damp‑proof structure, specially designed to withstand wide temperature fluctuation of outdoor unmanned communication sites.
| Item | Specification |
| Rated Voltage | DC 48V (Standard Ericsson telecom power supply) |
| Rated Current | 1.1A (Typical); 0.8~1.1A for Nidec variant |
| Rated Power | 30~33W |
| Wire Definition | 4-core cable with dedicated 4P plug: VCC(+48V), GND, PWM speed control, FG rotation speed signal output |
| Dimension | 171.5×171.5×50.8mm (172×172×51mm) round axial outline |
| Structure | Aluminum alloy frame + engineering plastic impeller, double maintenance‑free ball bearing |
| Operating Temperature Range | -20℃ ~ +75℃ (Outdoor grade) |
| Design Service Life | ≥50,000 hours under rated working condition |
| Net Weight | ≈1.0kg per unit |
FAQ
Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.
Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.
Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
Q:Can you provide test reports before shipping?
A:In addition to brand new products in their original packaging, all other used products will be tested and a test report will be provided.
