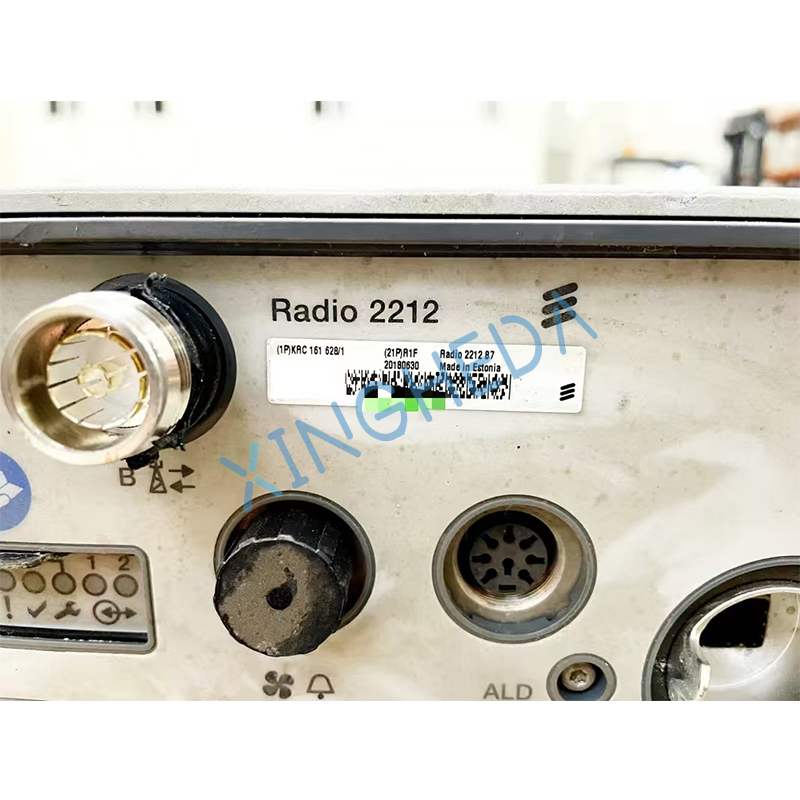

Ericsson Radio 2212 B7 with product code KRC 161 628/1 is a compact, outdoor Remote Radio Unit (RRU) designed for LTE and 5G NR network deployments, optimized for Band 7 (2600 MHz) operations. It is engineered to deliver high performance, flexible deployment, and robust environmental adaptability for medium-to-high capacity base station sites.
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram
Ericsson Radio 2212 B7 KRC 161 628/1 2600MHZ 2T2R 2X80W LTE
| Parameter Category | Details |
|---|---|
| Operating Band | Band 7 (2600 MHz), compliant with 3GPP standards |
| RF Architecture | 2T2R (2 Transmitters, 2 Receivers) |
| Output Power | 2×80 W (total radiated power) |
| Bandwidth Support | Up to 75 MHz for LTE; compatible with 5G NR bandwidth configurations |
| Power Supply | -48 VDC (standard telecom power specification) |
| BBU-RRU Connection | Fiber-optic link, maximum separation distance of 40 km between BBU and RRU |
| Dimensions (W×H×D) | 335 mm × 380 mm × 129 mm |
| Weight | Approximately 17 kg |
