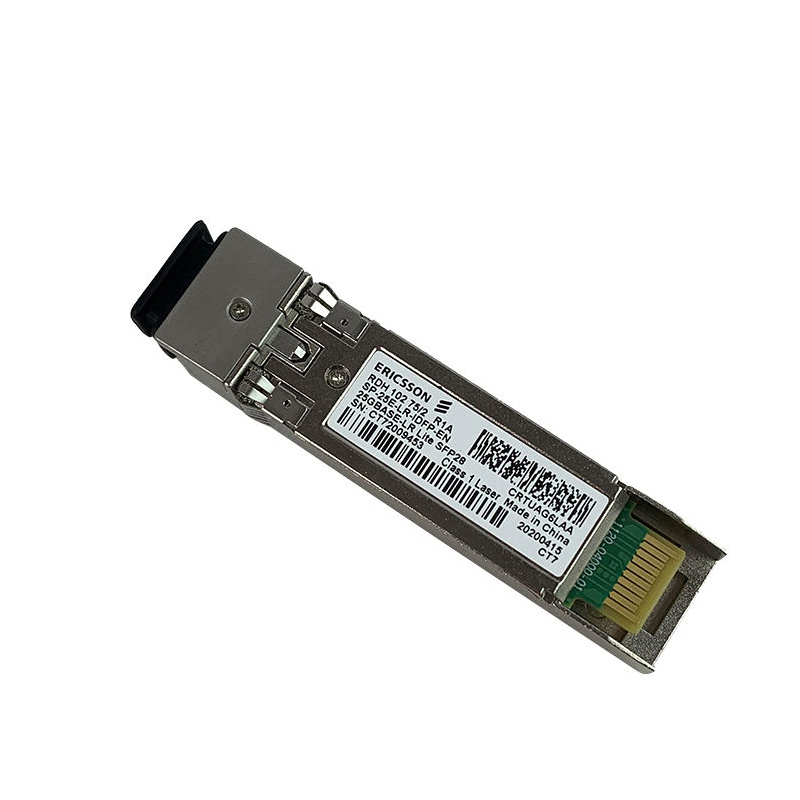

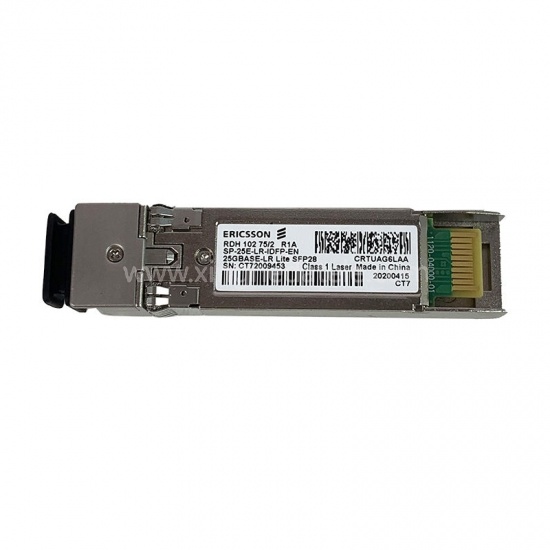

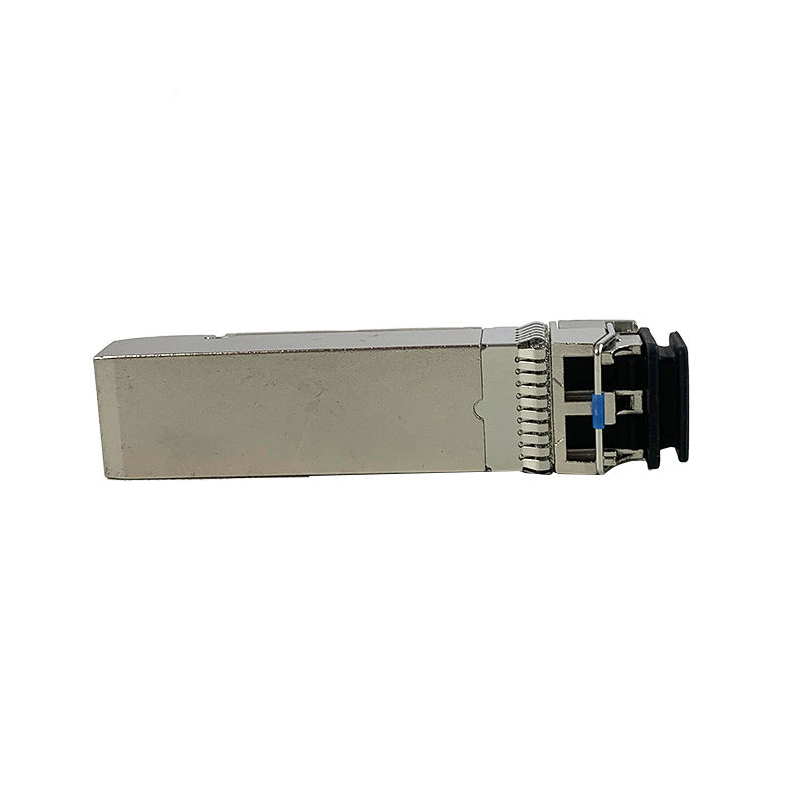

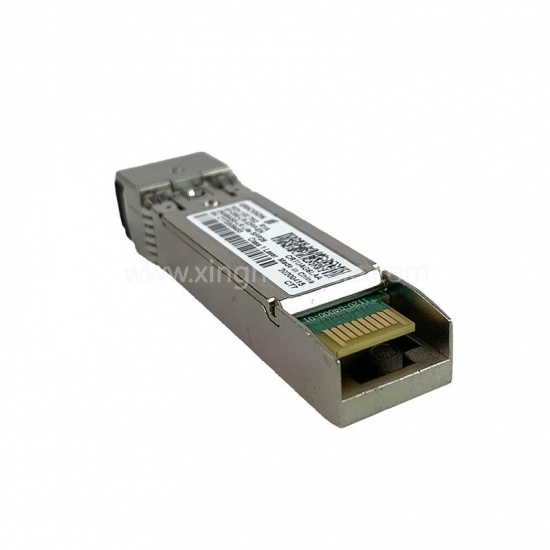

Ericsson RDH10275/2 25GBASE-LR Lite SFP28 1310nm 2km DOM Transceiver Module SP-25E-LR-IDFP-EN

Ericsson RDH10275/2 25GBASE-LR Lite SFP28 1310nm 2km DOM Transceiver Module SP-25E-LR-IDFP-EN

Product Description

It operates at a wavelength of 1310nm and is capable of transmitting data over a distance of up to 2 kilometers. The DOM Digital Optical Monitoring feature allows for real-time monitoring of optical parameters such as optical power, temperature, and receiver/transmitter status. Ericsson RDH10275/2 is a 25GBASE-LR Lite SFP28 transceiver module.The module is designed for use in Ethernet applications and supports a data rate of 25 Gbps. It is compatible with SFP28 ports and is commonly used in high-speed data transmission networks.

Features

Support CPRI wireless and 25GBASE-LR application

Support multi-rate for both 10Gps and 25Gbps

Up to 2km transmission on SMF

1310nm FP laser and PIN receiver

SFI high speed electrical interface

2-wire interface with integrated Digital Diagnostic monitoring

SFP+ MSA package with duplex LC connector

Single +3.3V power supply

Power consumption lower than 1.2W

Operating case temperature: -40~+85°C

Specifications

Manufacturer: Ericsson

Part Number: RDH10275/2

MPN: SP-25E-LR-IDFP-EN

Form Factor: 25G LR Lite

Data Rate: 25.78125 Gb/s

Transmitter: FP

Receiver: PIN

Wavelength (nm): 1310

Reach (km): 2

Temperature Range: Industrial

Product Details

Our Advantages

We have Ericsson RDH10275/2 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Ericsson RDH10275/2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Ericsson RDH10275/2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
