Nokia 472898A FWEA Flexi Zone 1800 Micro BTS 1800MHz Radio
Nokia 472898A FWEA Flexi Zone 1800 Micro BTS 1800MHz Radio
Nokia 472898A FWEA Flexi Zone 1800 Micro BTS 1800MHz Radio
Nokia 472898A FWEA Flexi Zone 1800 Micro BTS 1800MHz Radio

Nokia 472898A FWEA Flexi Zone 1800 Micro BTS 1800MHz Radio

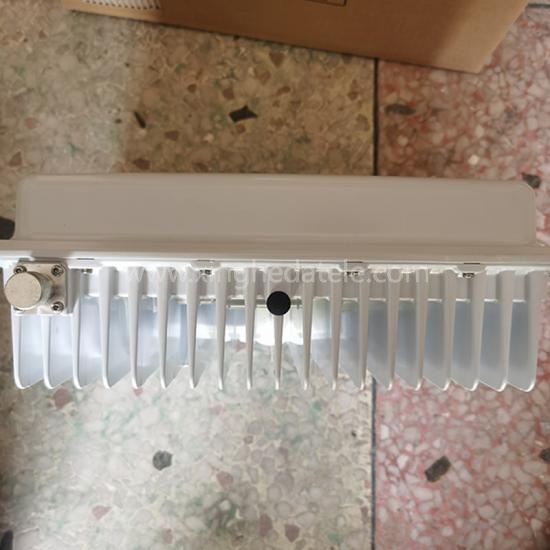

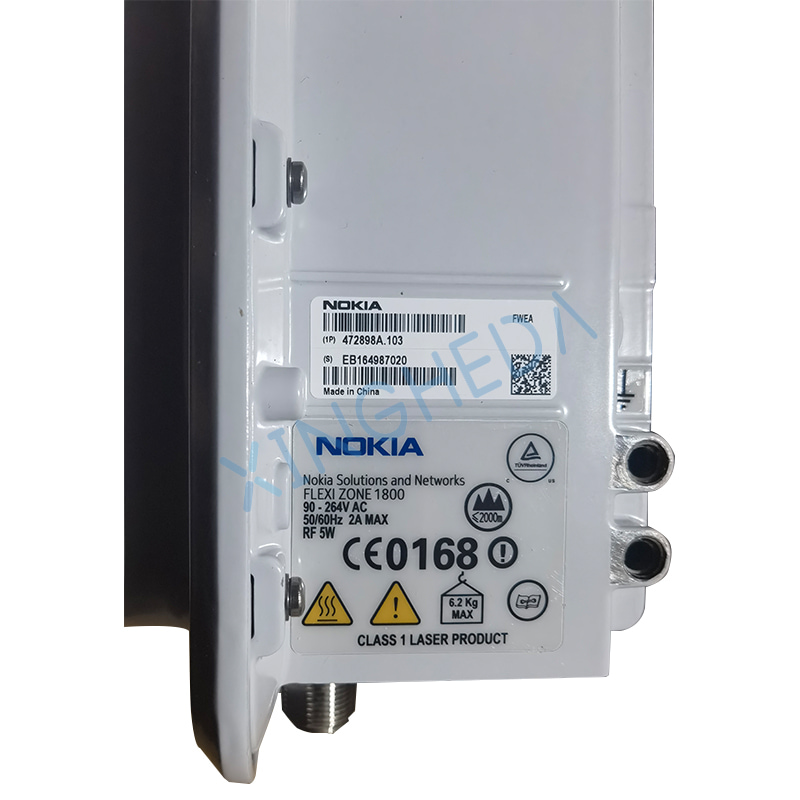

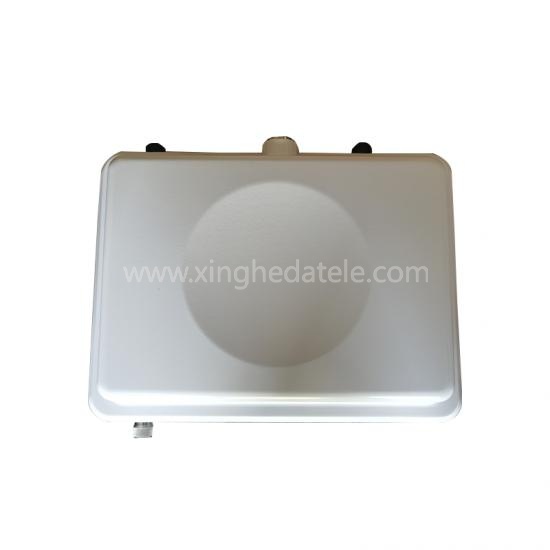

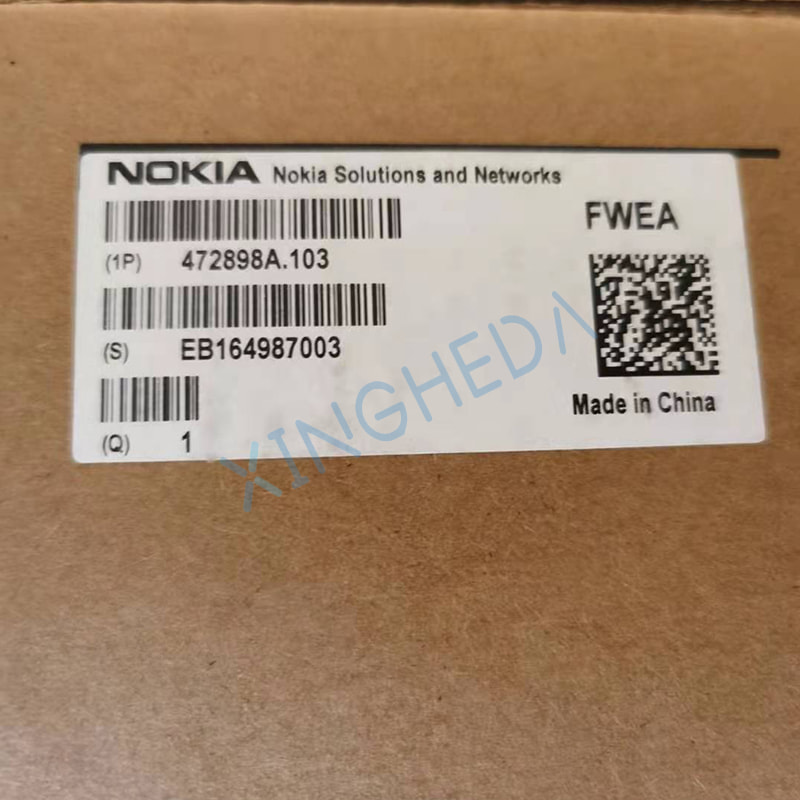

Nokia 472898A FWEA is a Flexi Zone 1800 MHz micro base transceiver station (Micro BTS), designed for mobile network operators to boost coverage and capacity in high-density urban areas, shopping malls, enterprise campuses and hotspots where macro sites cannot be deployed easily.

This outdoor-capable compact BTS unit supports GSM / LTE 1800 band. It adopts an aluminum waterproof enclosure, supports wall or pole mounting, and integrates radio, baseband and power interface in one box. It can connect to Nokia Flexi core network system, delivering reliable voice and data services with low installation effort and small footprint. It is widely used for network capacity expansion, coverage hole filling and indoor/outdoor hotspot deployment.


Large stock available for immediate shipping.Contact us now to get a real-time quote and technical data sheet within 24 hours!


  • Min.Order Quantity:

    1 pc

  • Price:

    Negotiable

  • Delivery Time:

    3-5 days

  • warranty time:

    six months

  • Place of Origin:

    China

  • Payment Terms:

    T/T, Western Union, MoneyGram
Inquiry now
  • Share To :
  • Linkedin
  • Youtube

Nokia 472898A FWEA Flexi Zone 1800 Micro BTS 1800MHz Radio


Product Details

Item Parameter
Part Number 472898A (FWEA), Flexi Zone 1800
Frequency Band 1800 MHz (GSM / LTE Band 3)
Enclosure Material High-grade aluminum, IP65 waterproof
Mounting Wall mount / Pole mount
Power Supply 90–264V AC, 2A Max
Weight Approx. 6.2 kg
Application Scenario Outdoor / semi-outdoor hotspot, coverage enhancement
Compatibility Nokia Flexi Multiradio BTS system
Main Function Radio signal transmitting & receiving, cellular signal processing



FAQ

1. Q: What network standard does Nokia 472898A FWEA support?

A: FWEA 472898A works on 1800MHz band, supports GSM and LTE Band 3, used for 2G / 4G cellular network coverage and capacity expansion. It is not a 5G radio unit.

2. Q: Is this unit outdoor waterproof?

A: Yes. The aluminum housing is IP65 rated. It can be installed outdoors with wall or pole brackets, suitable for humid and dusty outdoor environments.

3. Q: What power input does FWEA 472898A require?

A: It accepts 90–264V AC wide-range AC input, maximum current 2A. Please use matched power cable and lightning protection during site installation.

4. Q: Can FWEA work alone without Nokia baseband controller?

A: No. FWEA is a micro BTS radio unit. It must connect to Nokia Flexi system baseband board to complete cellular signal processing and core network connection.

5. Q: What are typical deployment sites for 472898A FWEA?

A: It is commonly deployed for urban blind spot filling, commercial districts, campus, underground parking, station and other high-traffic hotspot areas where macro base stations are hard to install.
