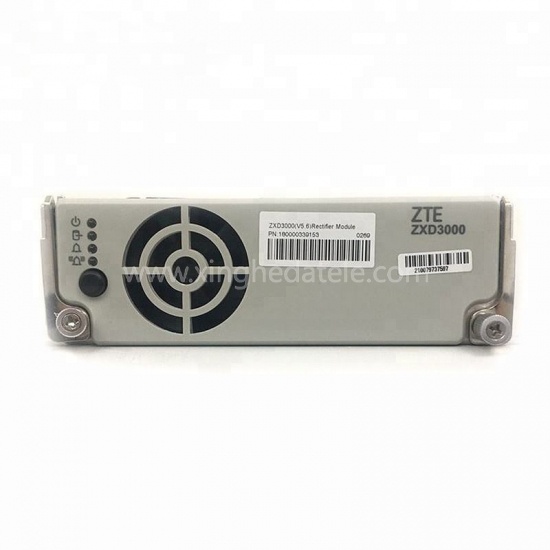

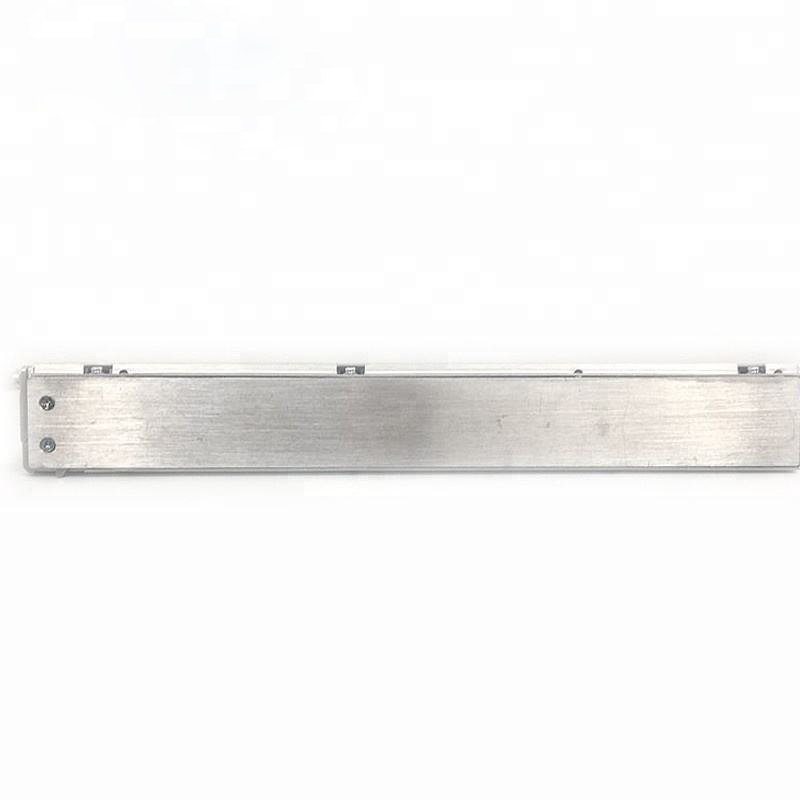

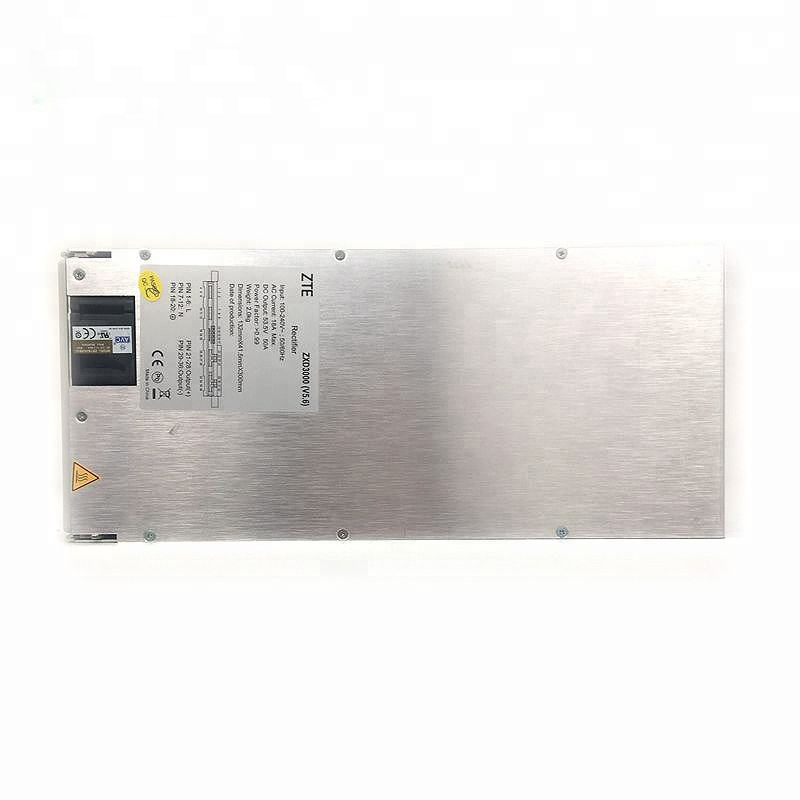

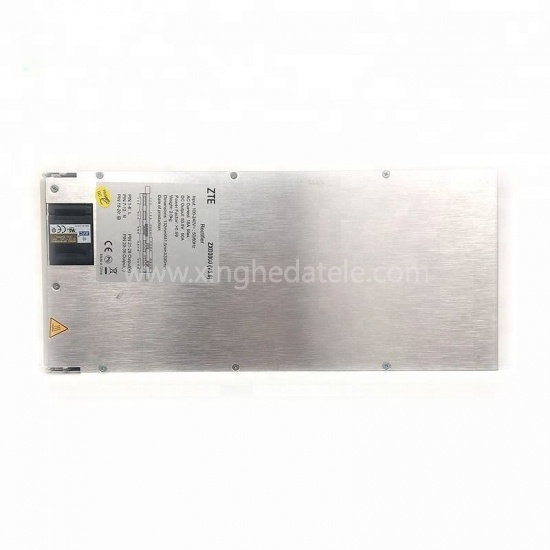

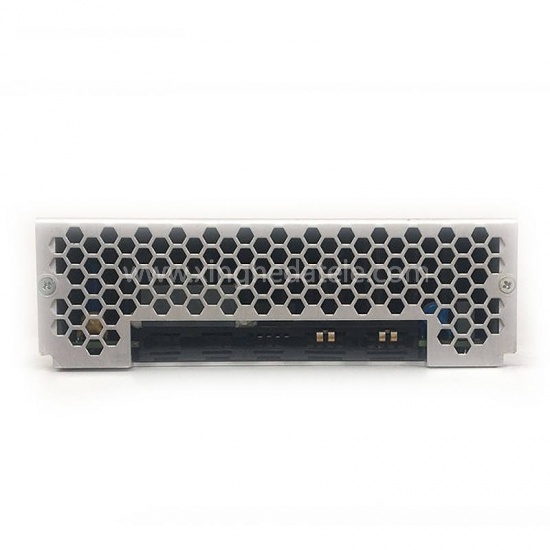

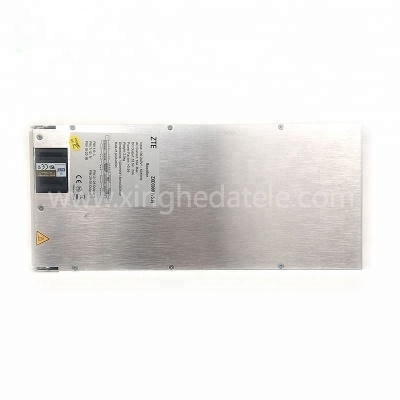

Rectifiers ZTE ZXD3000 ZXD-3000 48V 3000W for ZXDU68 B201 Rectifier Module

The ZXD3000 rectifiers convert AC to DC, power DC loads and charge the batteries.
  • Min.Order Quantity::

    1 pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Rectifiers ZTE ZXD3000 ZXD-3000 48V 3000W for ZXDU68 B201 FOB Reference Price:Get Latest Price

Product Description

The ZXD3000 V5.0 rectifier automatically adjusts its operational status according to the AC input voltage.

The input features include the under-voltage protection, over-voltage protection, and power limit.

48V 3000W rectifier input and output Features:

1) Under-Voltage Protection

When the AC input voltage is lower than the under-voltage threshold, the rectifier automatically shuts down and provides no output. Meanwhile, the alarm indicator is on. After the AC input voltage reaches the under-voltage recovery threshold, the rectifier automatically recovers.

The under-voltage recovery threshold = the AC input under-voltage threshold + the return difference.

The AC input under-voltage threshold is (85 ± 5) V and the return difference ranges from 8 V to 12 V.

2) Over-Voltage Protection

When the AC input voltage is higher than the over-voltage threshold, the rectifier automatically shuts down and provides no output. Meanwhile,ZTE ZXD3000 the alarm indicator is on. After the AC input voltage falls to the over-voltage recovery threshold, the rectifier automatically recovers.

The over-voltage recovery threshold = the AC input over-voltage threshold - the return difference.

The AC input over-voltage threshold is (295 ± 5) V and the return difference ranges from 5 V to 10 V.es

Wide temperature operating range -40°C / -40 °F to +75°C / 167°F -meets the harshest climatic

3) Power Limit

The rectifier limits its output power according to the input voltage.

Product Details

ZTE ZXD3000

ZTE ZXD3000


Our Advantages

We have ZTE ZXD3000 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.


ZTE ZXD3000, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.


ZTE ZXD3000 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
