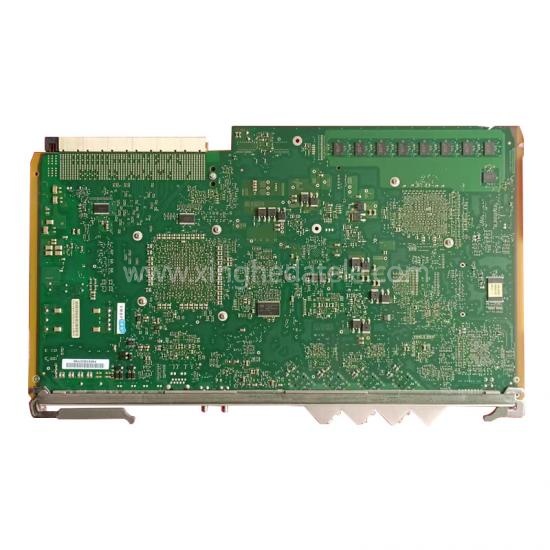

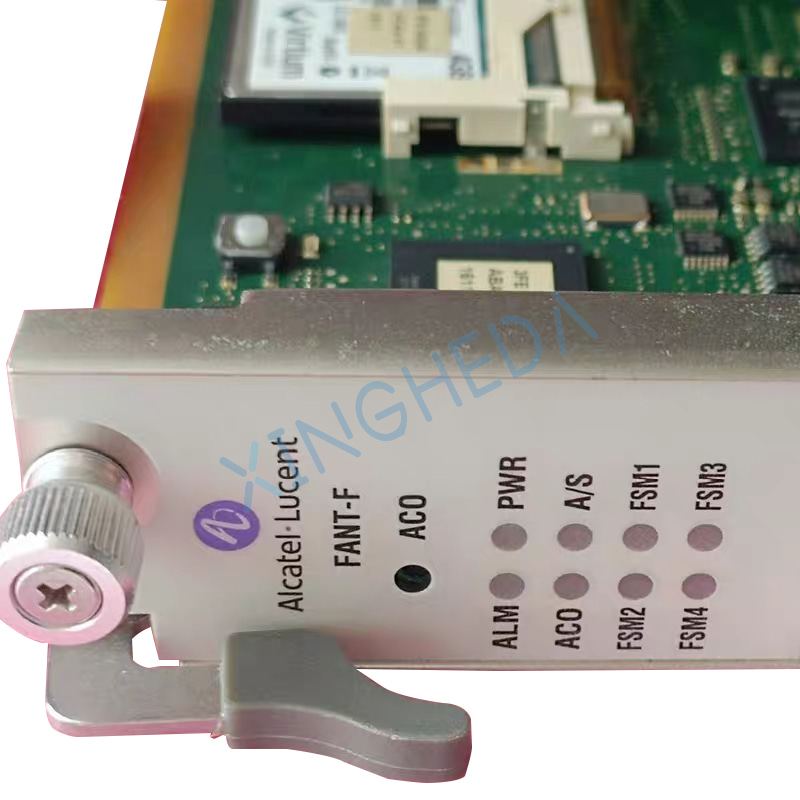

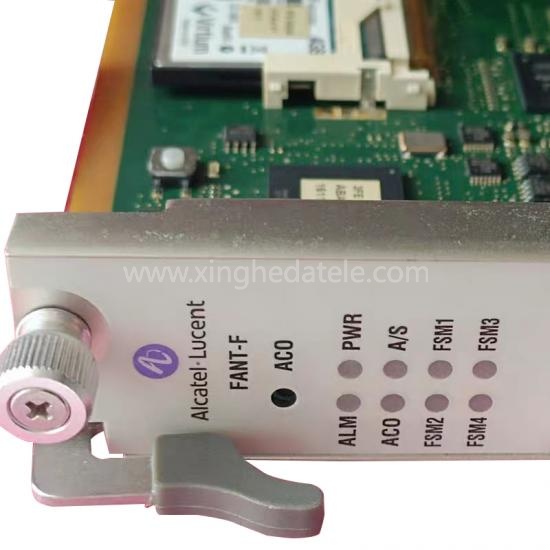

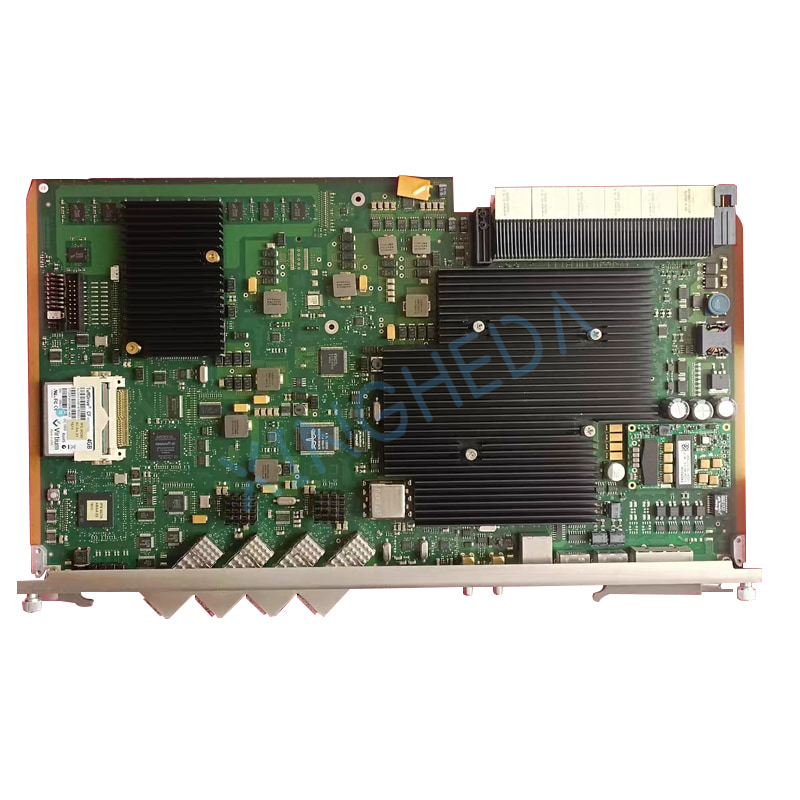

Alcatel-Lucent FANT-F Main Control Board 3FE53701AD for 7360 ISAM FX Series OLT

Alcatel-Lucent FANT-F Main Control Board 3FE53701AD for 7360 ISAM FX Series OLT

Product Details

Key Specifications & Features

1. Switching Capacity: 480 Gbps bidirectional matrix; 40 Gbps per line card (FX-4/FX-8), 20 Gbps for FX-12. Supports active-active redundancy (dual FANT-F cards for failover, total 960 Gbps system capacity).

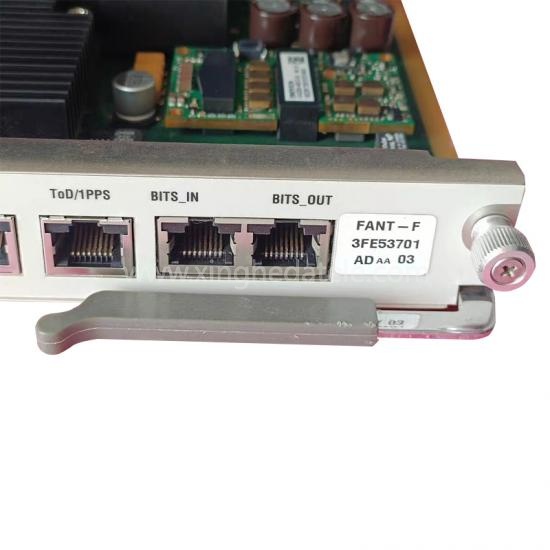

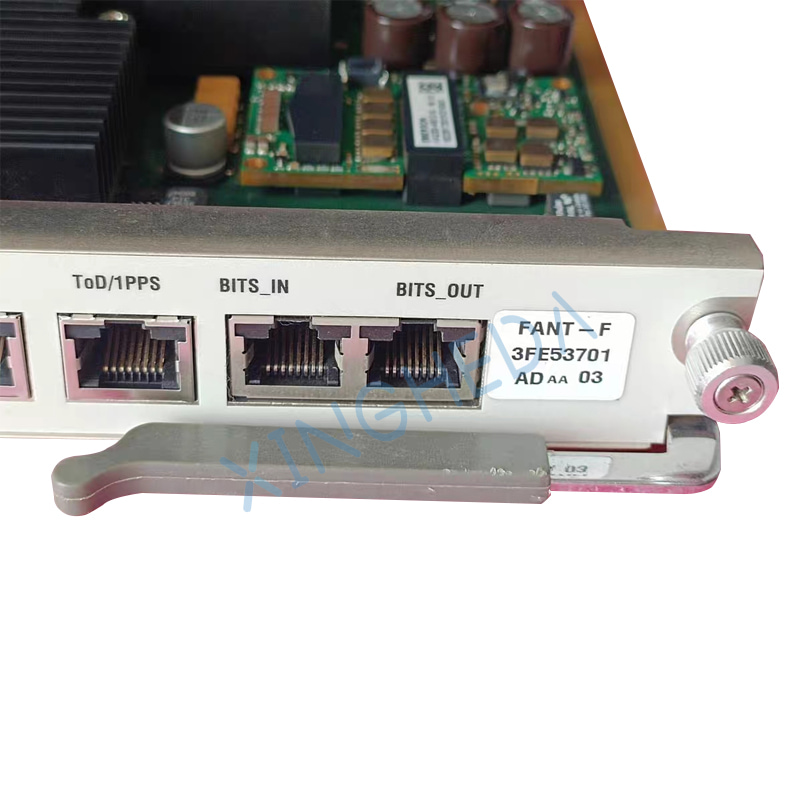

2. Uplink Interfaces: 4 SFP+ ports (configurable for 10GbE/1GbE fiber links) + 1 RJ45 10/100/1000Base-T management port + BITS timing interfaces.
3. Scale: 128k MAC address table, full IPv4/IPv6/MPLS, QoS, and carrier-grade reliability features.
4. Compatibility: Works with 7360 ISAM FX-4, FX-8, FX-12 chassis; paired with GPON/XG(S)PON line cards (FGLT, FWLT, NGLT series).

Physical & Application

• Used as the core control and switching engine in fiber access networks, aggregating traffic from thousands of ONTs/ONUs to the IP/MPLS metro core.
• Typical deployments: ISP FTTH networks, 5G backhaul aggregation, enterprise fiber access.

FAQ

Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.

Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
