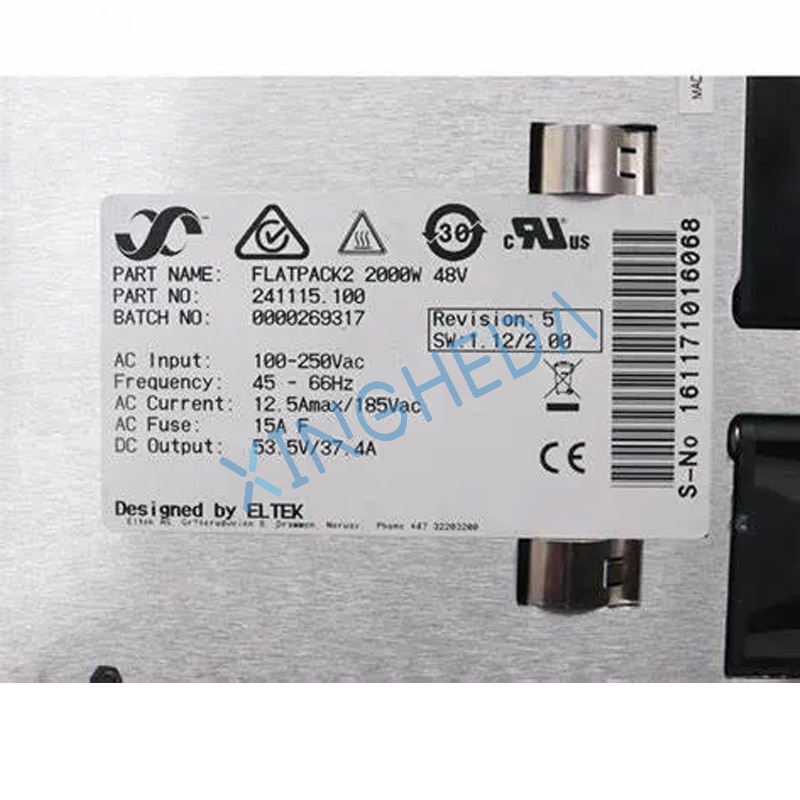

Eltek 241115.100 Flatpack2 48/2000
Product Details
| Item | Specification |
| Operating AC Voltage | 85 ~ 300 VAC; Nominal rated 185–275 VAC |
| Input Frequency | 45 ~ 66 Hz |
| Max Input Current (Full Load @185VAC) | 12.5 Arms |
| Power Factor | >0.99 at load ≥50% |
| Input Hold-up Time | >20 ms (output voltage maintained above 43.5 VDC under 1500W load) |
| Input Protection | Dual-line mains fuses, varistor surge suppression, overvoltage lockout above 300 VAC |
| Rated Output Power | 2000 W (full power at nominal AC input) |
| Max Output Current | 41.7 A @ 48 VDC |
| Default Float Charging Voltage | 53.5 VDC |
| Adjustable Voltage Range | 43.5 VDC ~ 57.6 VDC (configurable for float / equalize charging) |
| Static Voltage Regulation Accuracy | ±0.5% (10%–100% load) |
| Dynamic Voltage Deviation | ±5% under 10%↔90% load step; response time < 50 ms |
| Output Ripple & Noise | < 100 mVpp (30 MHz measurement bandwidth); Psophometric noise <0.96 mV RMS |
| Parallel Current Sharing | ±5% of rated current across 10%–100% load |
| Low Voltage Alarm Threshold | 43.5 VDC |
| Operating Temperature | -40°C ~ +75°C; linear power derating above 55°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Cooling System | Dual temperature-variable front fans, front-to-back airflow |
| Fan MTBF | >200,000 hours @ 25°C (Telcordia SR-332 standard) |
| Acoustic Noise | < 55 dBA at full load, ambient temp <30°C |
| Module Dimension (W × H × D) | 109 × 41.5 × 327 mm (standard Flatpack2 half-width 1U module) |
| Weight | ~1.95 kg |
| Maintenance Feature | Full hot-swap support for live replacement |
