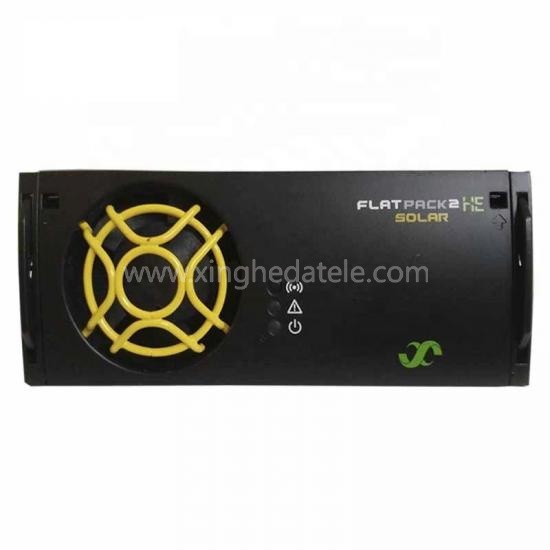

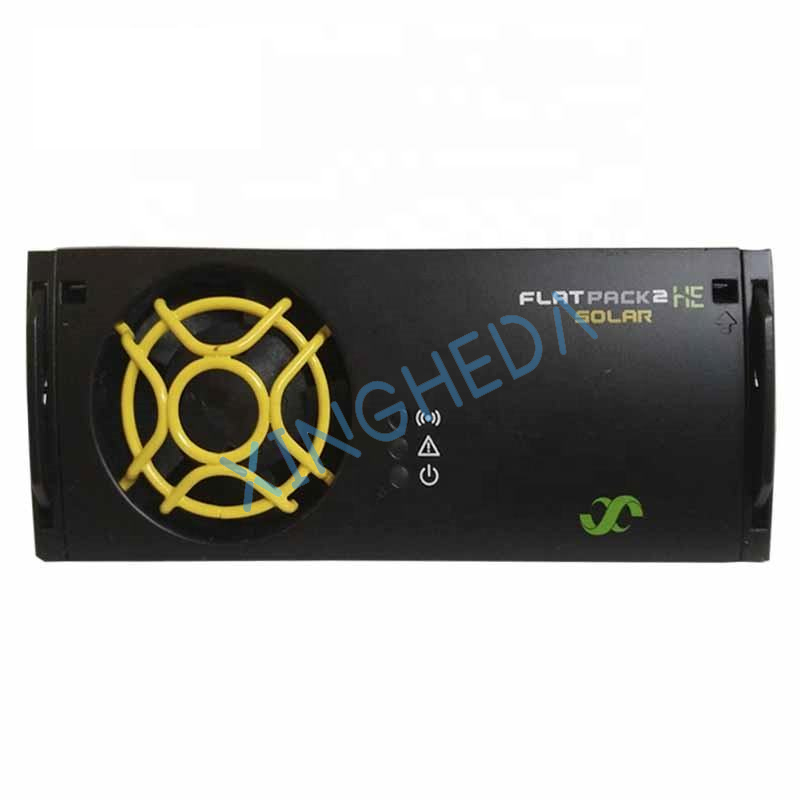

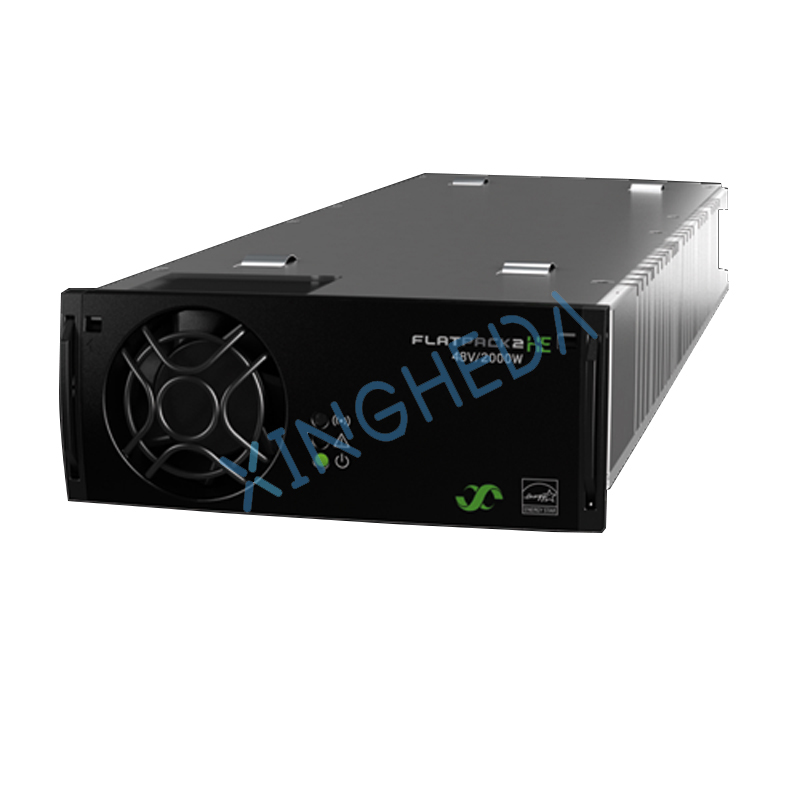

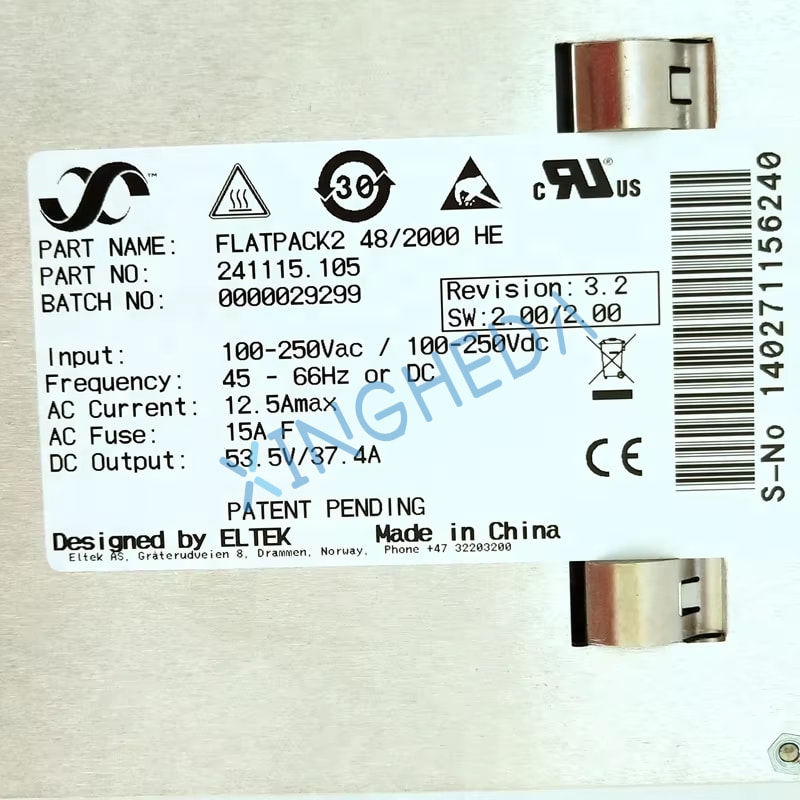

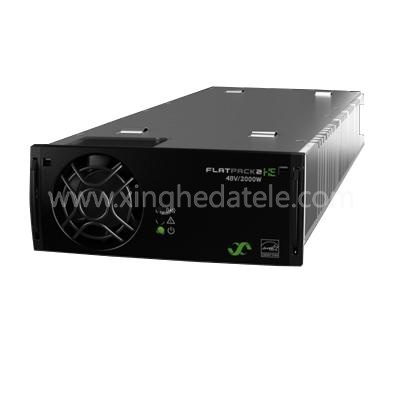

Eltek 241115.105 Flatpack2 48/2000 HE
Product Details
| Item | Parameter |
| AC Input | |
| Nominal Input Voltage | 185 – 275 VAC |
| Operating AC Voltage Range | 85 – 300 VAC |
| DC Input Range | 85 – 275 VDC |
| Operating Frequency | 45 – 66 Hz |
| Power Factor | ＞0.99 (≥50% load) |
| DC Output | |
| Rated Output Power | 2000 W |
| Nominal Output Voltage | 48 VDC |
| Adjustable Voltage Range | 43.5 VDC ~ 57.6 VDC |
| Default Float Voltage | 53.5 VDC |
| Maximum Output Current | 41.7 A |
| Static Voltage Regulation | ±0.5% (10%–100% load) |
| Current Sharing Accuracy | ±5% rated current (10%–100% load) |
| Output Ripple & Noise | ＜100 mVpp (30 MHz bandwidth) |
| Efficiency & Cooling | |
| Peak Efficiency | 96% ~ 96.2% |
| Cooling Mode | Variable speed fan, front-to-rear airflow |
| Noise Level | ＜52 dBA (full load, ≤30°C ambient) |
| Protection | Over Voltage Protection(OVP), auto-recovery short-circuit protection, over-temperature derating/shutdown, fan fault alarm, input under/over voltage lockout |
| Mechanical Data | |
| Dimensions (W × H × D) | 109 × 41.5 × 327 mm |
| Weight | 1.95 kg |
| Installation | Hot-swappable, standard Flatpack2 slot |
| Environment & Certifications | |
| Operating Temperature | -40°C ~ +65°C (power derating at high temperature) |
| MTBF | ＞314,000 hours @25°C (Telcordia SR-332) |
| Approvals | CE, UL, NEBS GR-1089, ETSI telecom standards |
| Typical Applications | 5G base stations, telecom power rooms, 48V battery charging systems, industrial DC power supplies, edge data center power systems |
FAQ
Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.
Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.
Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
Q:Can you provide test reports before shipping?
A:In addition to brand new products in their original packaging, all other used products will be tested and a test report will be provided.
