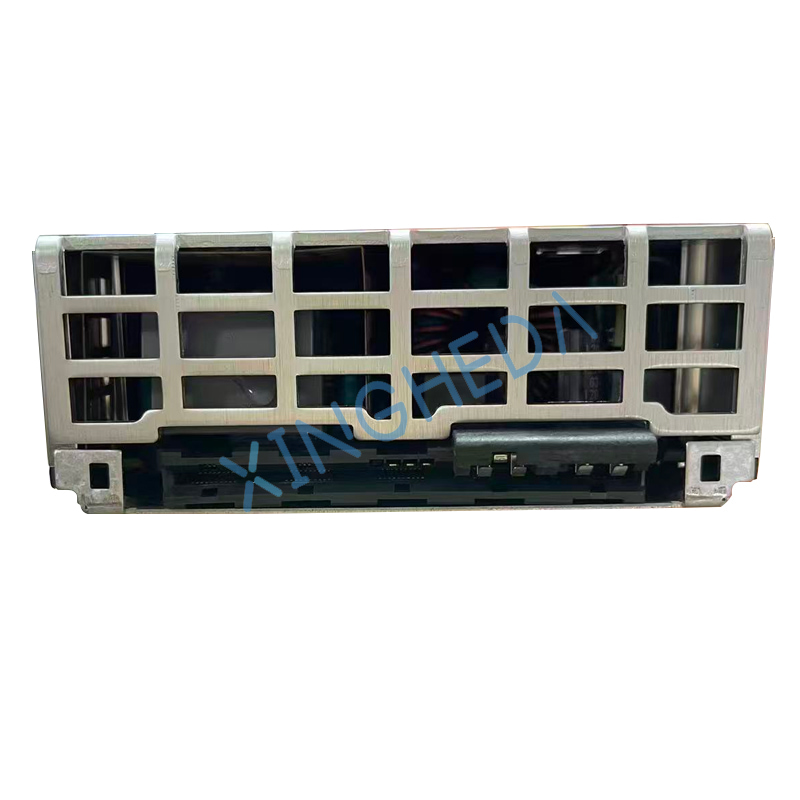

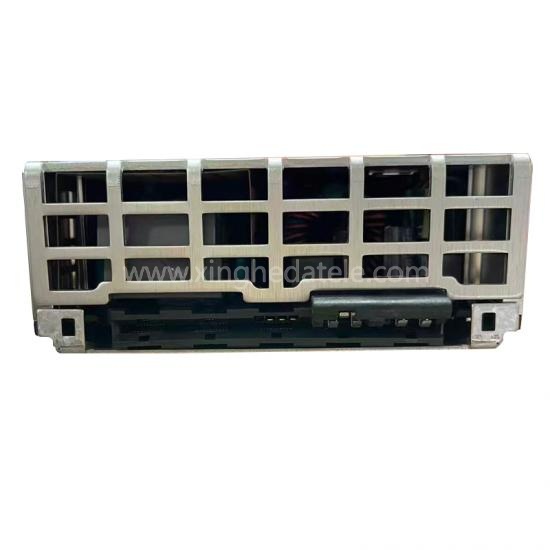

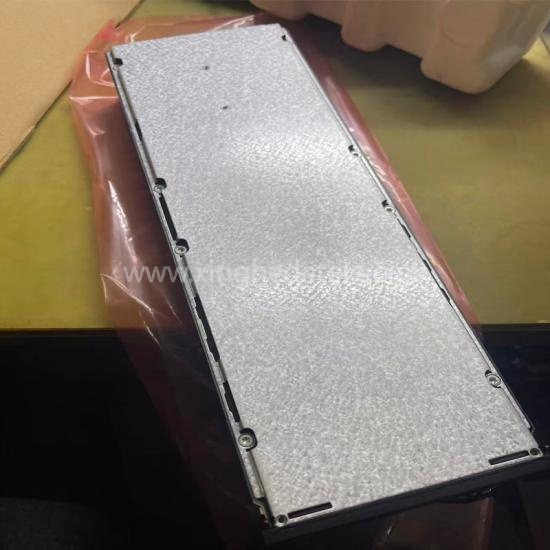

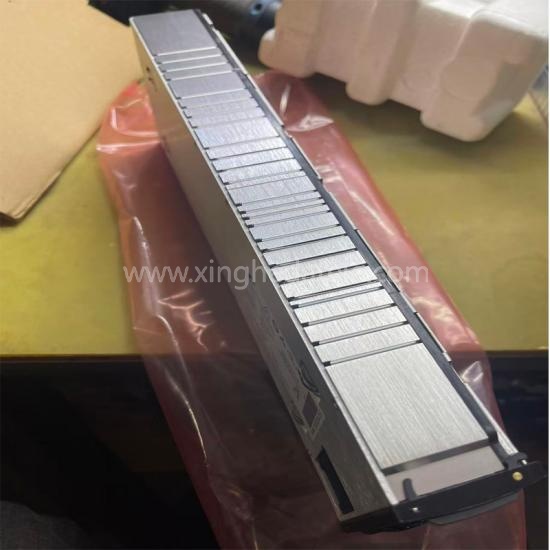

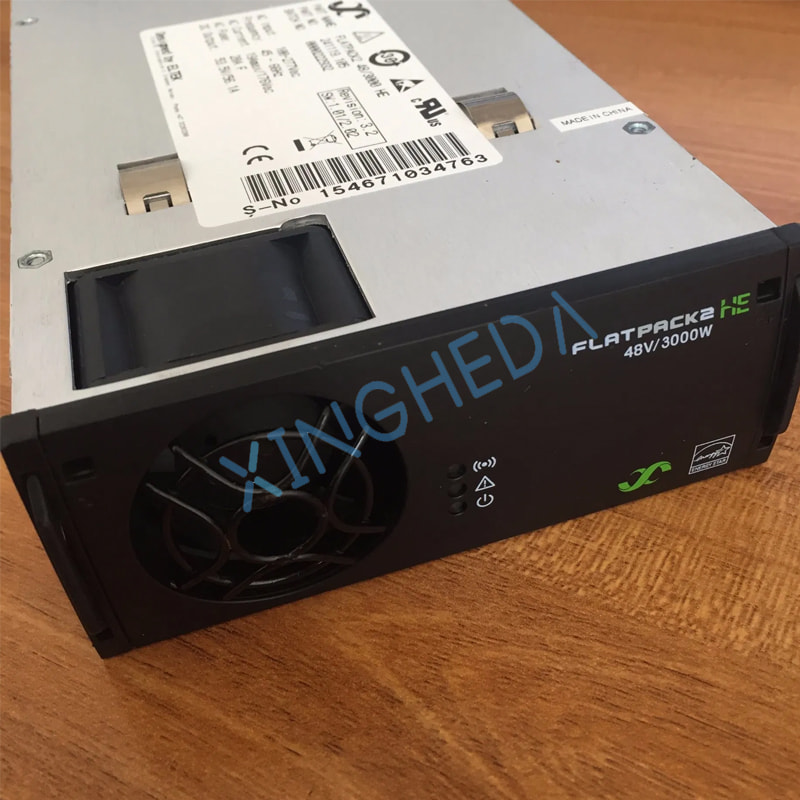

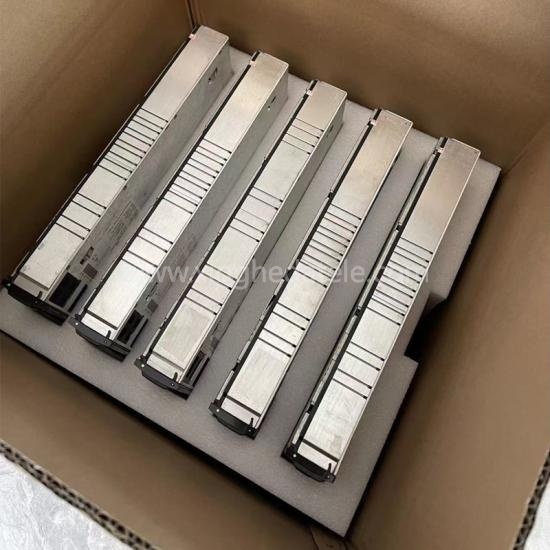

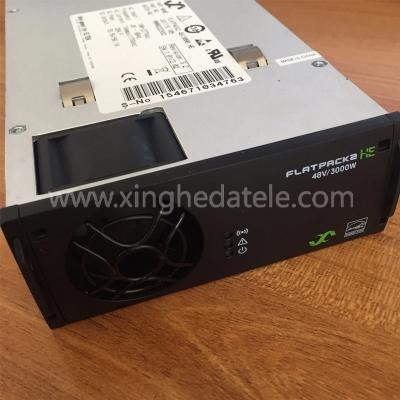

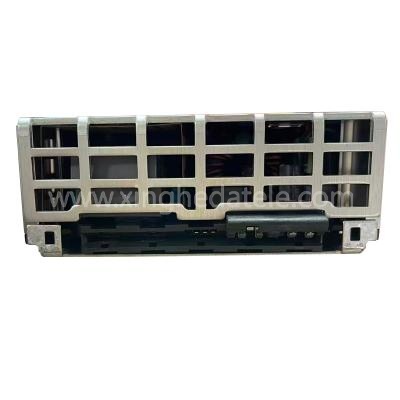

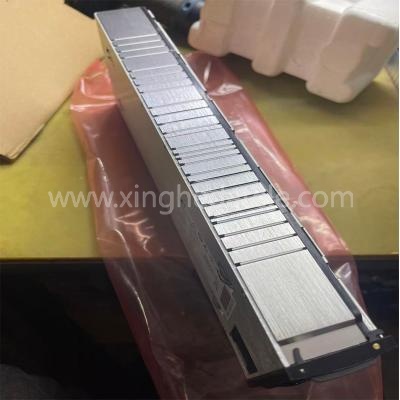

Eltek 241119.100 Flatpack2 48/3000
Product Details
| Item | Parameter |

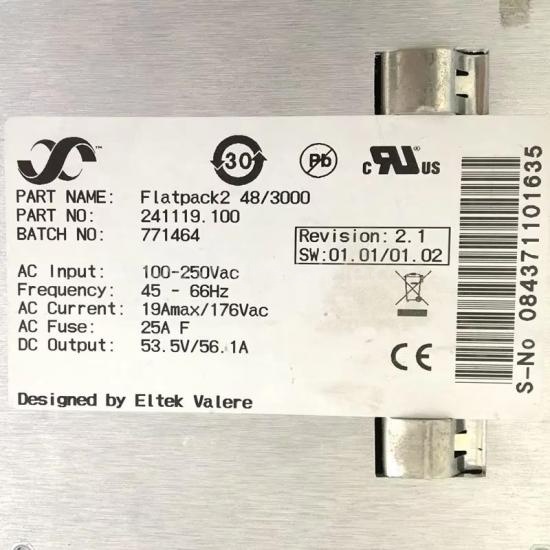

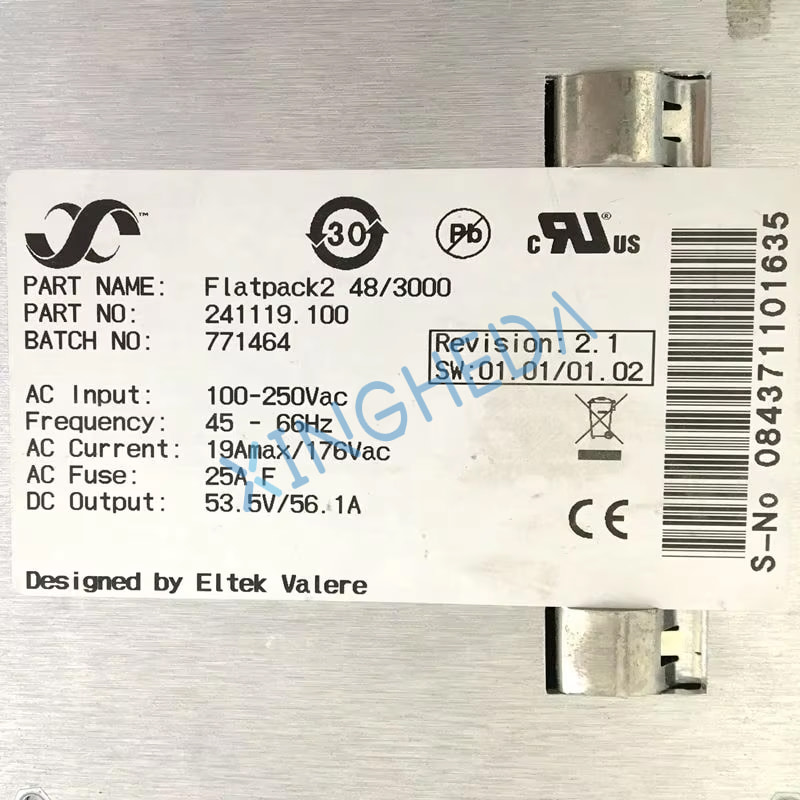

| Model | Flatpack2 48/3000 |
| Part Number | 241119.1 |
| AC Input Voltage | 100 ~ 250 VAC |
| Rated AC Frequency | 45 ~ 66 Hz |
| Max Input Current | 19 A @ 176 VAC full load |
| Power Factor | ≥0.99 above 50% rated load |
| Input Fuse | 25 A |
| Rated Output Power | 3000 W |
| Default Output Voltage | 53.5 VDC |
| Adjustable Voltage Range | 43.2 ~ 57.6 VDC |
| Max Output Current | 56.1 A |
| Output Characteristic | Constant power mode 48–57.6 V; constant current below 48 V |
| Static Voltage Regulation | ±0.5% (10% ~ 100% load) |
| Dynamic Voltage Regulation | ±5.0%, recovery time ＜50 ms |
| Ripple & Noise | ＜150 mVpp (30 MHz bandwidth) |
| Current Sharing Accuracy | ±5% of rated current |
| Cooling | Dual variable speed axial fans |
| Operating Temperature | -40 ℃ ~ +55 ℃ (full power); power derating above 55℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Dimensions (H × W × D) | 41.5 mm × 109 mm × 327 mm |
| Communication | CAN bus for Smartpack2 monitoring unit |
| Safety Certifications | CE, cULus recognized |
