Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918

Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918
Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918
Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918
Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918
Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918

Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918

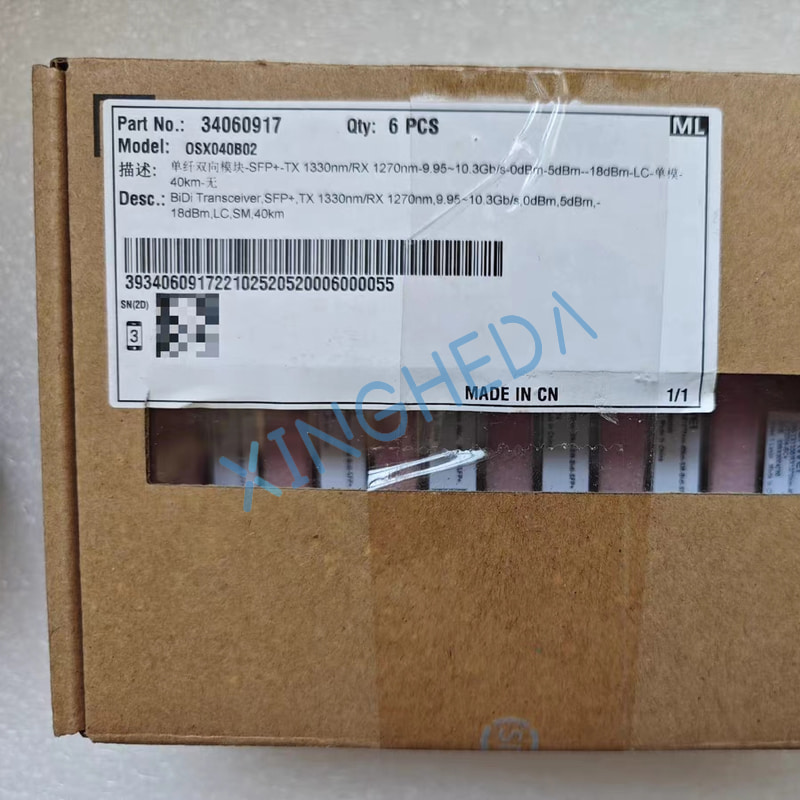

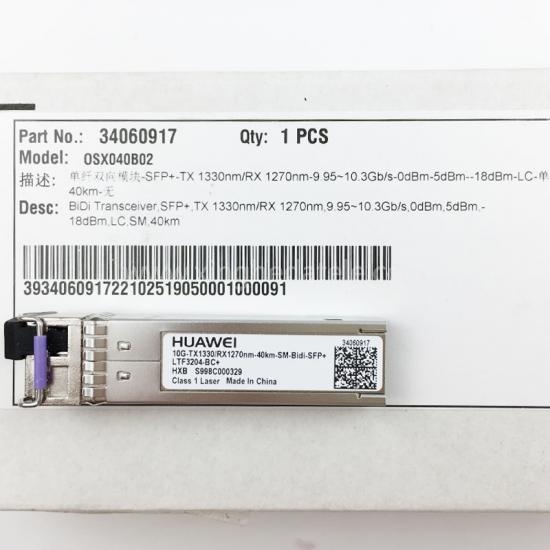

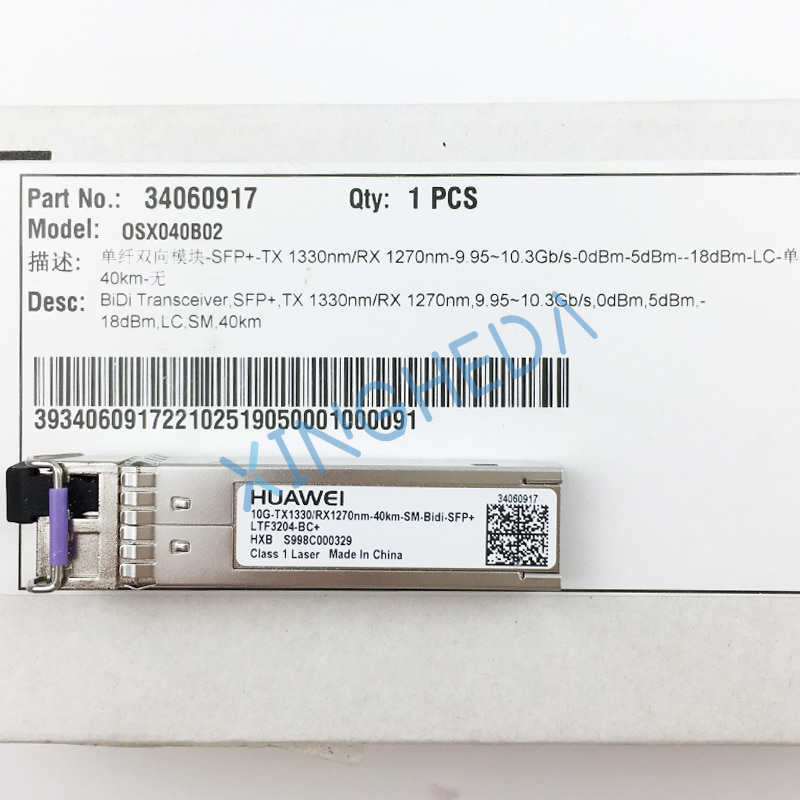

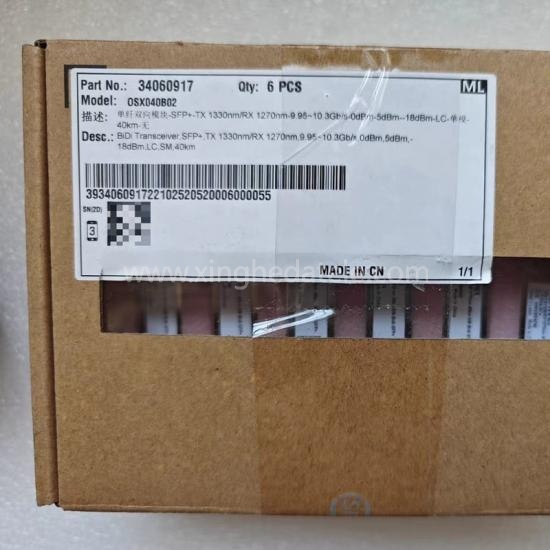

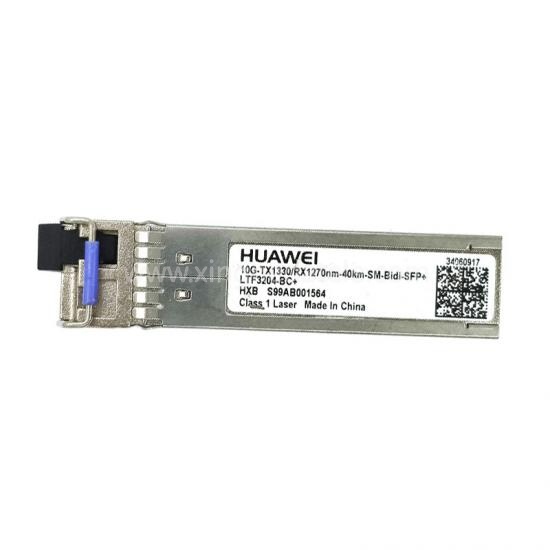

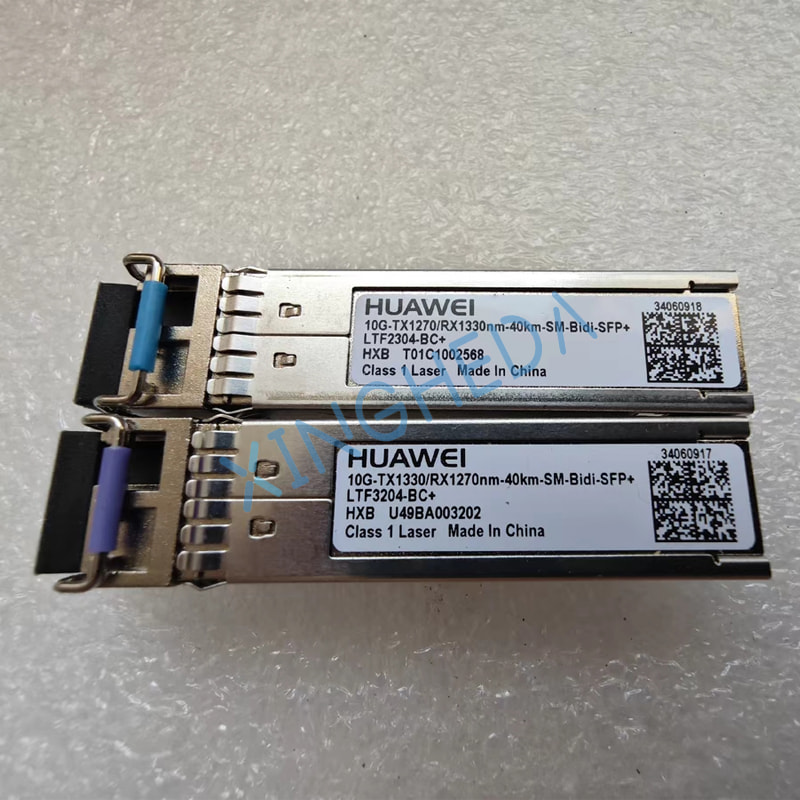

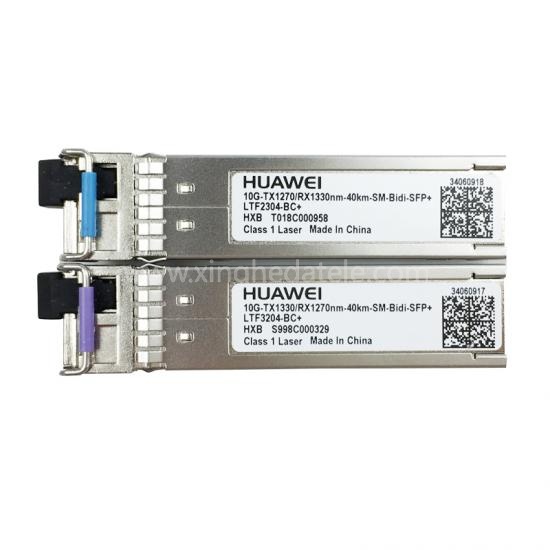

Huawei 34060917, with part number OSX040B02, is a 10G SFP+ BiDi optical transceiver for commercial applications. It adopts single-fiber bidirectional transmission over single-mode fiber with a maximum reach of 40 km.

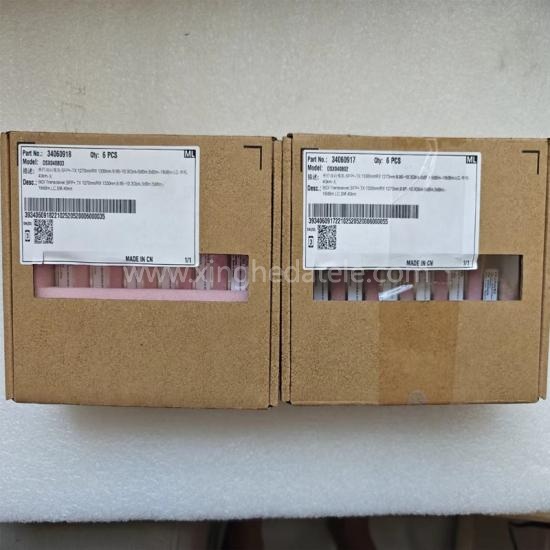

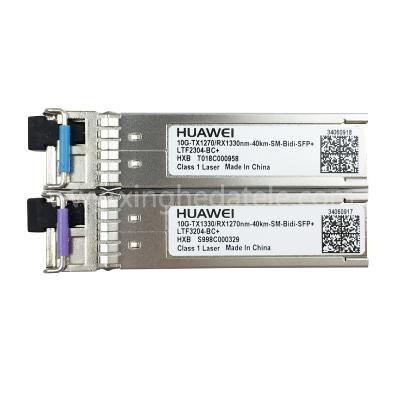

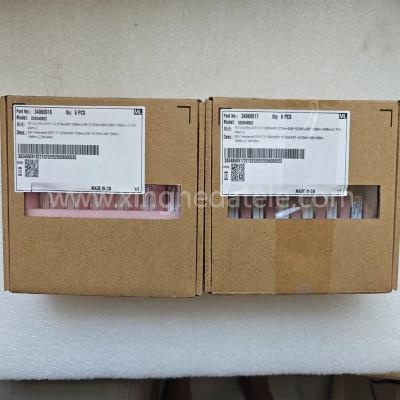

This module features hot-pluggable design and built-in digital optical monitoring (DOM/DDM) function. It complies with international safety and environmental standards. For single-fiber bidirectional communication, it must be paired with Huawei 34060918 as a matched set.
Typical deployment scenarios include metropolitan area networks, enterprise networks and data center interconnections.


Large stock available for immediate shipping. Contact us now to get a real-time quote and technical data sheet within 24 hours!


  • Min.Order Quantity:

    1 pc

  • Price:

    Negotiable

  • Delivery Time:

    3-5 days

  • warranty time:

    six months

  • Place of Origin:

    China

  • Payment Terms:

    T/T, Western Union, MoneyGram
Inquiry now
  • Share To :
  • Facebook
  • Linkedin
  • Youtube
  • Pinterest

Huawei 34060917 OSX040B02 10G-TX1330/RX1270nm-40km-SM-Bidi-SFP+ 34060917/34060918


Product Details

Parameter Specification
Form Factor SFP+
Data Rate 9.953 Gbps / 10.3125 Gbps (10GBase-BX)
Fiber Type Single Mode Fiber (SMF)
Maximum Transmission Distance 40 km
Connector Type LC Duplex
Operating Wavelength Transmit (Tx): 1330 nm; Receive (Rx): 1270 nm
Transmit Optical Power -1 ~ +2 dBm (Typical)
Receiver Sensitivity ≤ -14 dBm
Extinction Ratio ≥ 8.2 dB
Bit Error Rate (BER) < 1×10⁻¹²
Supply Voltage 3.3 V DC
Operating Temperature Range 0 °C ~ 70 °C (Commercial Grade)
Storage Temperature Range -40 °C ~ 85 °C
Relative Humidity 5% ~ 95% (Non-condensing)
ESD Protection 500 V (Human Body Model, HBM)
Digital Optical Monitoring Compliant with SFF-8472 (DOM/DDM)
Hot Pluggable Supported
Safety Standards IEC 60825-1 Class 1, FCC Class B
Matched Pair Model Huawei 34060918 (OSX040B01)
34060917 Configuration Tx 1330 nm / Rx 1270 nm (End A)
34060918 Configuration Tx 1270 nm / Rx 1330 nm (End B)
Usage Note The two models must be used in pairs to achieve 40 km single-fiber bidirectional transmission




FAQ

Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.

Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.


Q:Can you provide test reports before shipping?

A:In addition to brand new products in their original packaging, all other used products will be tested and a test report will be provided.
