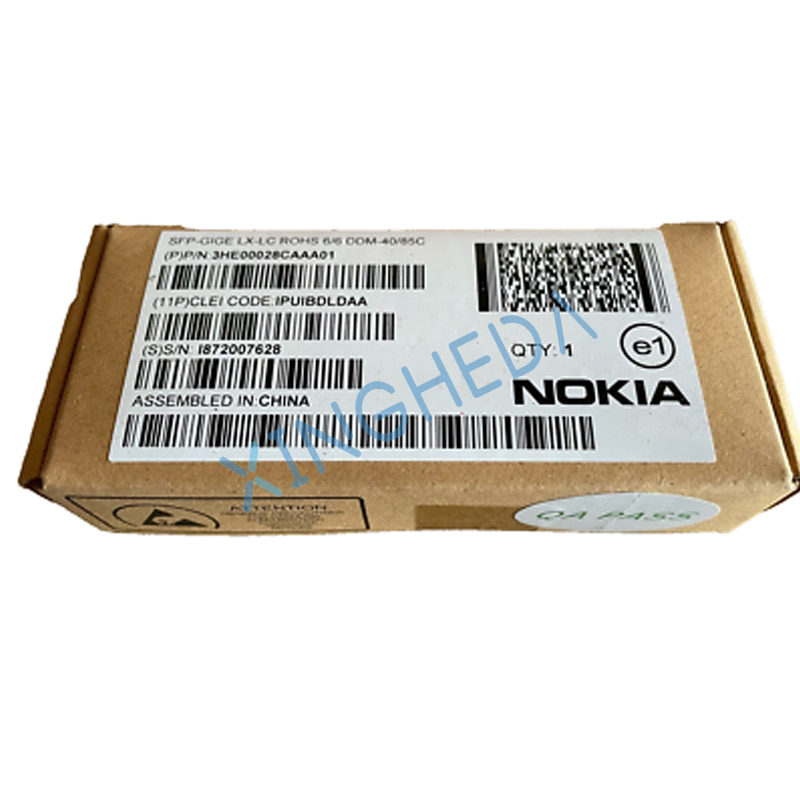

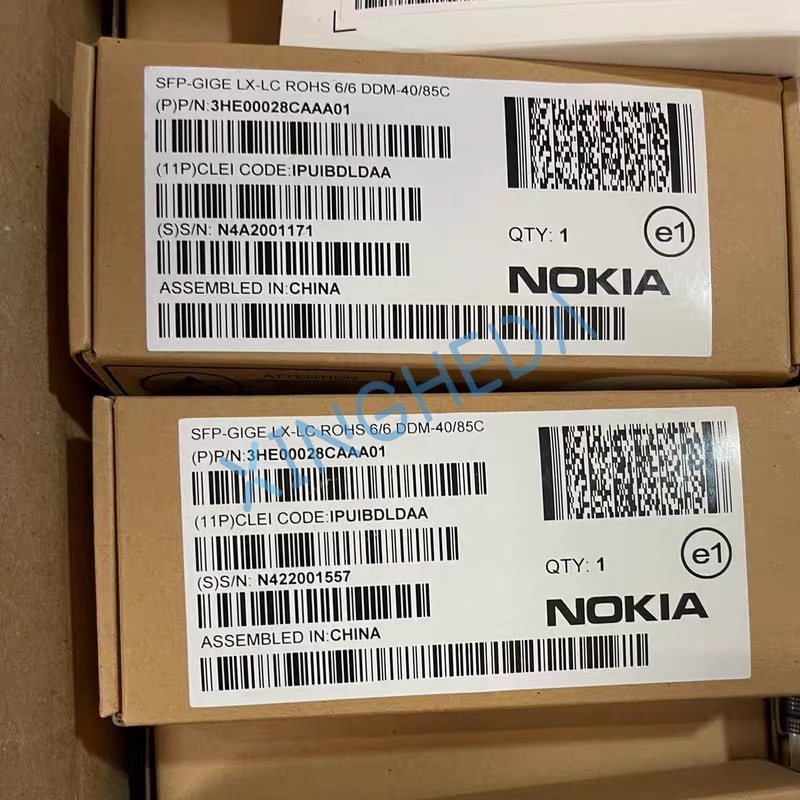

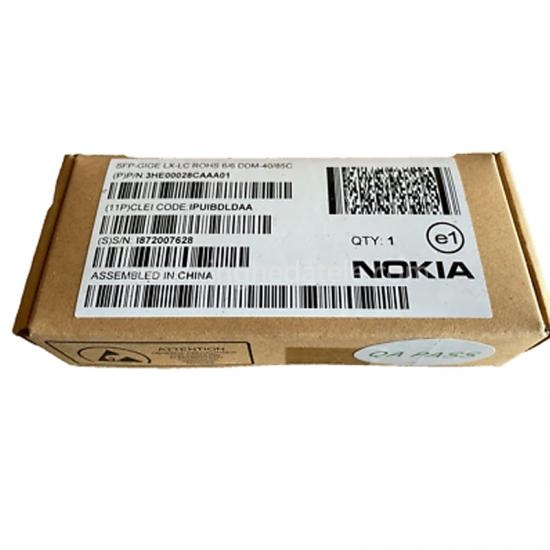

Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01

Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01
Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01
Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01
Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01

Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01

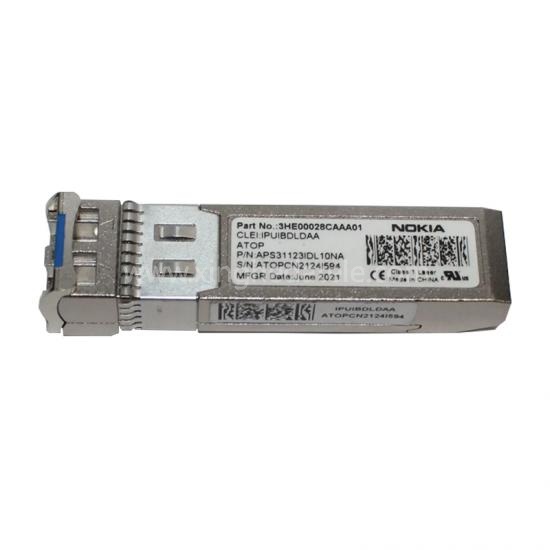

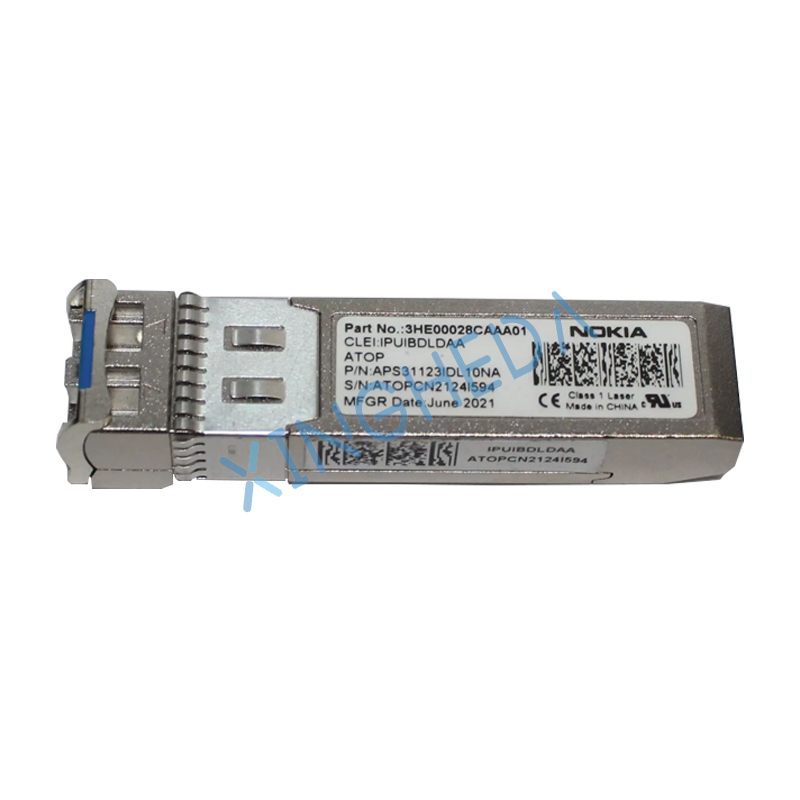

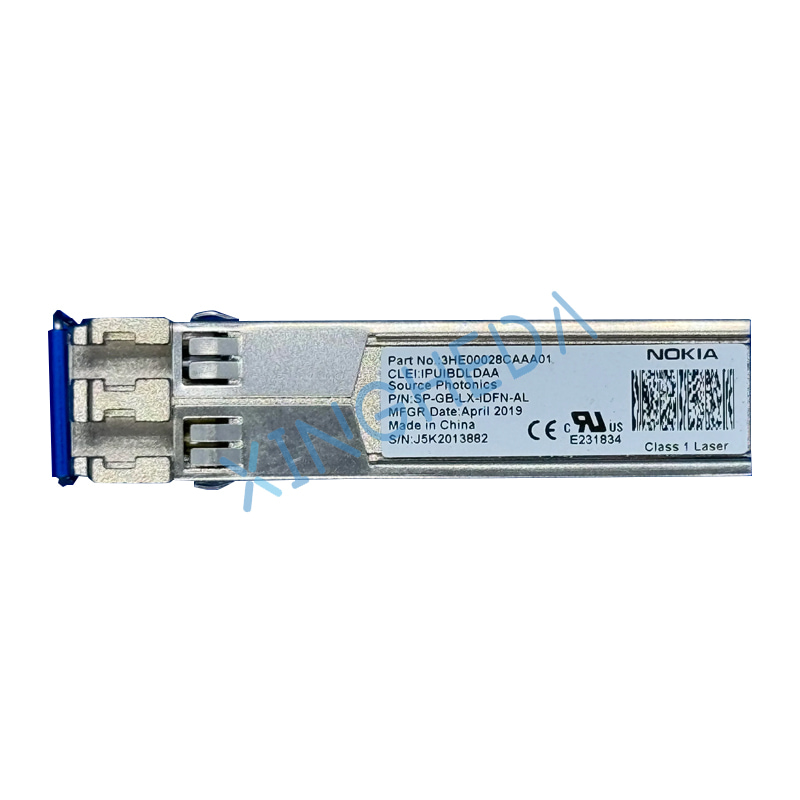

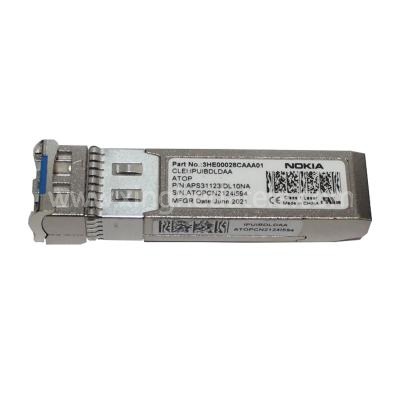

  • The 3HE00028CA is an original Nokia (Alcatel-Lucent) hot-pluggable SFP optical transceiver, compliant with 1000BASE-LX Gigabit Ethernet standard. It adopts 1310nm FP laser transmitter and PIN photodiode receiver, designed for 1.25G bidirectional data transmission over single-mode fiber (SMF) with maximum 10km transmission distance via duplex LC connector.
    This module fully supports DDM/DOM (Digital Diagnostic Monitoring) defined by SFF-8472, enabling real-time monitoring of operating temperature, supply voltage, transmit optical power and receive optical power on Nokia network devices. It is a native OEM optical module for Nokia carrier & enterprise routing/switch platforms, guaranteeing full identification and complete diagnostic functions without alarms.


    • Large stock available for immediate shipping. Contact us now to get a real-time quote and technical data sheet within 24 hours!


    • Min.Order Quantity:

      1 pc

    • Price:

      Negotiable

    • Delivery Time:

      3-5 days

    • warranty time:

      six months

    • Place of Origin:

      China

    • Payment Terms:

      T/T, Western Union, MoneyGram
    Inquiry now
    • Share To :
    • Facebook
    • Linkedin
    • Youtube
    • Pinterest

    Nokia 3HE00028CA Transceiver SFP-GIGE LX-LC 1000BASE-LX 1310nm 3HE00028CAAA01


    Product Details



    Item Parameter Value
    Part Number 3HE00028CA (Commercial Temp); 3HE00028CAAA01 (Industrial Wide Temp)
    Form Factor SFP (INF-8074i MSA standard)
    Data Rate 1.25 Gbps (1000BASE-LX Gigabit Ethernet)
    Fiber Type Single Mode Fiber (SMF)
    Transmit Wavelength 1310 nm (1260~1360 nm bandwidth)
    Max Transmission Distance 10 km
    Optical Connector Duplex LC
    Transmitter Type FP Laser
    Receiver Type PIN Photodiode
    Transmit Optical Power -9 ~ -3 dBm
    Receiver Sensitivity ≤ -22 dBm (BER=1×10⁻¹²)
    Receiver Overload Power > 0 dBm
    Extinction Ratio > 9 dB
    Supply Voltage 3.3 V DC
    Max Power Consumption ≤ 0.9 W
    DDM Support Yes (SFF-8472)

    Key Features

    • Hot-swappable SFP form factor, plug-and-play without power off
    • 1.25Gbps full-duplex bandwidth, IEEE 802.3z compliant
    • 1310nm central wavelength for single-mode fiber
    • Duplex LC fiber interface, compact and reliable connection
    • Built-in DOM digital optical monitoring function
    • Stable optical indexes with high extinction ratio
    • Excellent ESD & surge protection
    • Lead-free, RoHS & CE laser safety certified
    • MSA (Multi-Source Agreement) standard compatible
    • Commercial temperature version for indoor equipment deployment

    Environmental Specifications

    • Commercial version (3HE00028CA): Operating temperature 0 ℃ ~ +70 ℃
    • Industrial version (3HE00028CAAA01): Operating temperature -40 ℃ ~ +85 ℃
    • Storage temperature: -40 ℃ ~ +85 ℃
    • Humidity: 5% ~ 95% non-condensing



    Compatible Nokia Hardware Platforms

    The module is natively recognized by Nokia/Alcatel-Lucent carrier and enterprise network equipment:
    1. Core Routers: 7750 SR Series Service Routers
    2. Aggregation Switches: 7450 ESS Series
    3. Access Routers: 7705 SAR Series
    4. Access Switches: 7210 SAS Series
    5. Enterprise Switches: OS6860, OS6900, OS10K Series
    Third-party generic SFP modules may trigger unrecognized device alarms or disable DOM monitoring functions.





    FAQ

    Q: Are your products original and brand new?
    A: We offer both new and used products with complete factory serial numbers.

    Q: Do you provide technical specifications or data sheets?
    A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

    Q: What is the warranty period for this product?
    A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.


    Q:Can you provide test reports before shipping?

    A:In addition to brand new products in their original packaging, all other used products will be tested and a test report will be provided.
