Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W

Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W
Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W
Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W
Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W
Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W

Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W

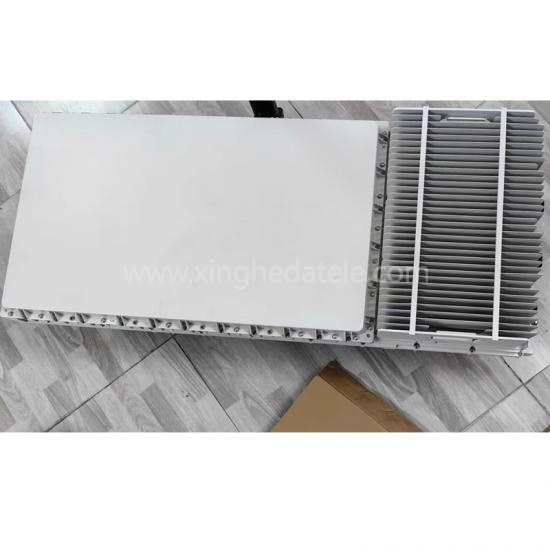

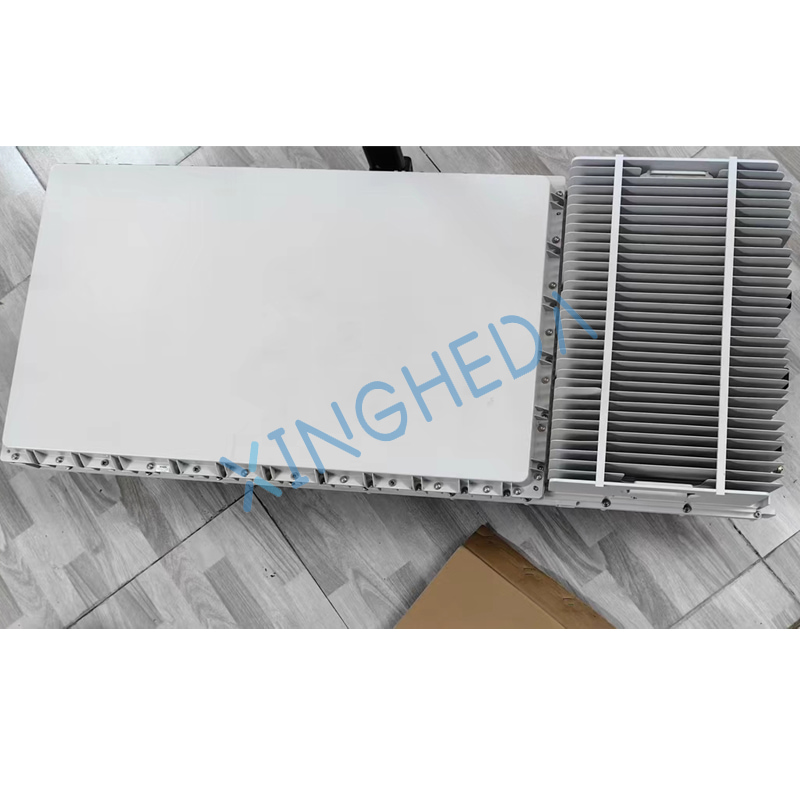

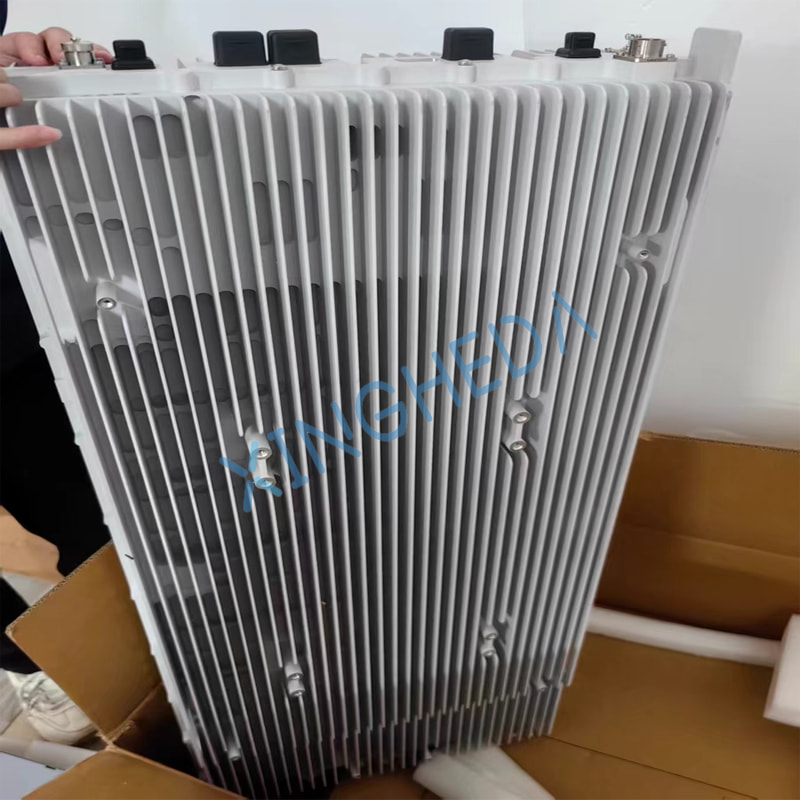

  • Full commercial name: AirScale MAA 64T64R 192AE Band 42 200W Integrated Massive MIMO Radio
  • Core definition: All-in-one outdoor active antenna unit integrating power amplifiers, digital transceivers and dual-polarized antenna array, designed for TDD 4G LTE & 5G NR high-capacity macro deployment



    • Large stock available for immediate shipping. Contact us now to get a real-time quote and technical data sheet within 24 hours!


    • Min.Order Quantity:

      1 pc

    • Price:

      Negotiable

    • Delivery Time:

      3-5 days

    • warranty time:

      six months

    • Place of Origin:

      China

    • Payment Terms:

      T/T, Western Union, MoneyGram
    Inquiry now
    • Share To :
    • Facebook
    • Linkedin
    • Youtube
    • Pinterest

    Nokia AirScale Nokia AEQA 474212A MAA 64T64R 192AE B42 200W


    Product Details


    Item Parameter
    Transceiver Channel 64 Transmit / 64 Receive (64T64R) Massive MIMO
    Antenna Elements 192 dual-polarized antenna elements (192AE array)
    Operating Band Band 42 (3400 MHz – 3600 MHz TDD), compatible with NR n41 similar spectrum deployment
    Duplex Mode TDD (Time Division Duplex)
    Total RF Output Power 200 W total (5 W per transmit channel)
    Supported Modulation QPSK, 16QAM, 64QAM, 256QAM high linearity
    Max Instantaneous Bandwidth 100 MHz single carrier; supports 60/80/100 MHz carrier aggregation
    Digital Beamforming Full 2D digital beam steering (horizontal + vertical); up to 16 parallel MU-MIMO data streams; interference suppression & cell splitting capability

    1.Core Value & Application Scenarios

    AEQA 474212A is a high-density 64-channel Massive MIMO radio for mid-band TDD spectrum. It eliminates separate RRU + external antenna architecture, reduces tower load, feeder loss and site space occupation.
    • 1.1 Urban dense residential areas, central business districts, main traffic corridors
    • 1.2 Campus, industrial park 5G private networks
    • 1.3 Co-site LTE & NR capacity expansion, network densification
    • 1.4 Operators’ 5G mid-band mass rollout for high user throughput

    2. Fronthaul & Electrical Interface

    • 2.1 Fronthaul Interface: CPRI optical port, interconnection with Nokia AirScale BBU baseband chassis (ASIB / ABIL baseband boards)
    • 2.2 Power Supply: Standard outdoor -48 V DC telecom power

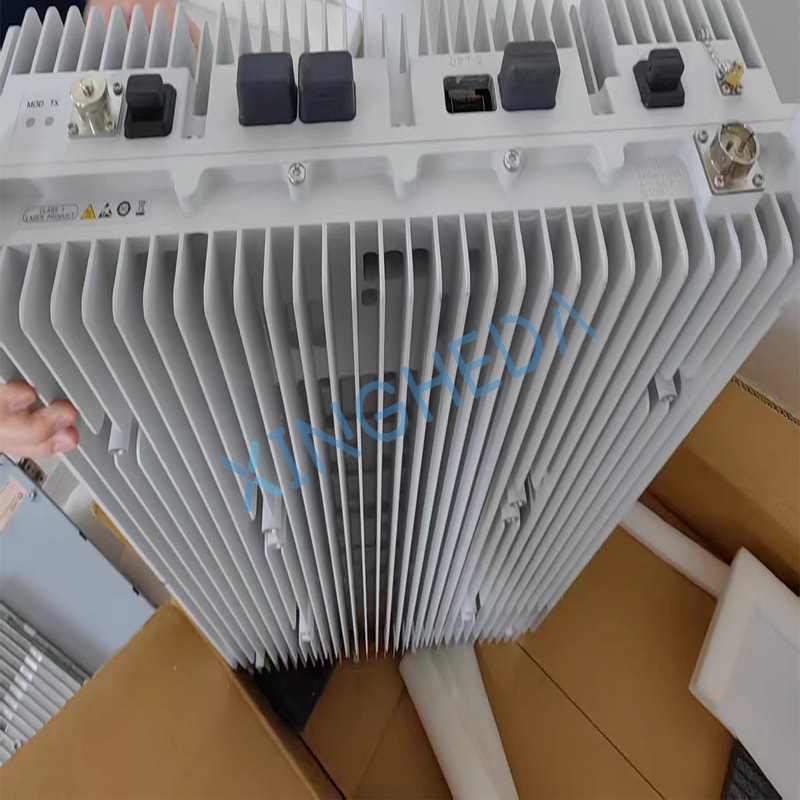

    • 2.3 Auxiliary Ports: Ground terminal, local maintenance debug port, alarm interface

    3. Mechanical & Environmental Specifications


    • 3.1 Enclosure Protection Class: IP65 waterproof & dustproof for all-weather outdoor operation
    • 3.2 Operating Temperature Range: -40 ℃ ~ +55 ℃
    • 3.3 Installation Method: Direct pole-mounted, wall-mounted or tower-mounted without extra outdoor cabinet
    • 3.4 Origin: Manufactured in China

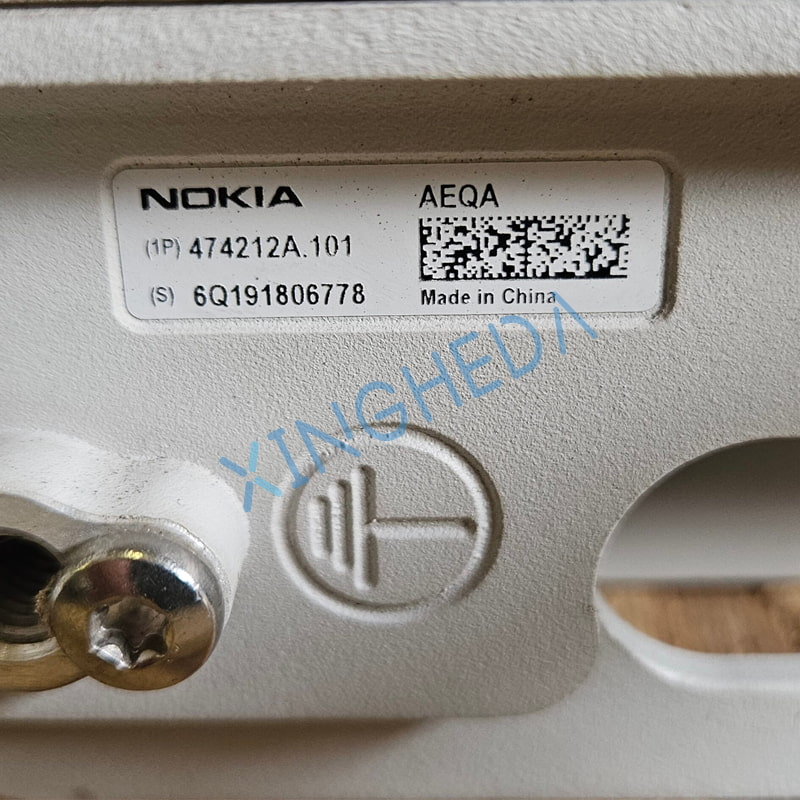

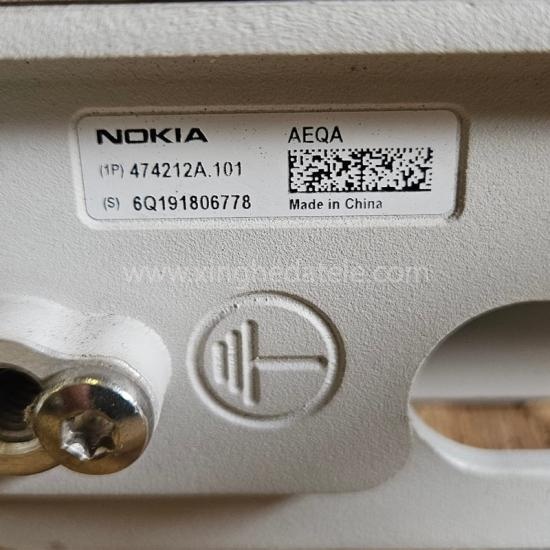

    • 3.5 Hardware Versions: 474212A.101, 474212A.103
    • 4.Network Compatibility


    • 4.1 Radio Access Technologies: 5G NR + TDD LTE co-mode concurrent operation
    • 4.2 3GPP Standard Compliance: Release 15 / Release 16 NR mid-band specifications

    5. Product Advantages

    1. 5.1 Integrated all-in-one design: No jumper cables between RRU and antenna, significantly lower insertion loss and higher energy efficiency
    2. 5.2 Ultra-high spectral efficiency via 64T64R Massive MIMO, boosting single-site user capacity and peak throughput
    3. 5.3 Compact outdoor unit, lower tower weight load, reducing site transformation cost
    4. 5.4 Adaptive digital beam shaping improves coverage edge signal strength and mitigates cross-cell interference
    5. 5.5 Single hardware supports LTE and NR multi-standard coexistence, smooth 4G-to-5G upgrade






    FAQ

    Q: Are your products original and brand new?
    A: We offer both new and used products with complete factory serial numbers.

    Q: Do you provide technical specifications or data sheets?
    A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

    Q: What is the warranty period for this product?
    A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.


    Q:Can you provide test reports before shipping?

    A:In addition to brand new products in their original packaging, all other used products will be tested and a test report will be provided.
