Nokia Power Cord 995297A For FBBA NSN

Nokia Power Cord 995297A For FBBA NSN
Nokia Power Cord 995297A For FBBA NSN
Nokia Power Cord 995297A For FBBA NSN
Nokia Power Cord 995297A For FBBA NSN

Nokia Power Cord 995297A For FBBA NSN

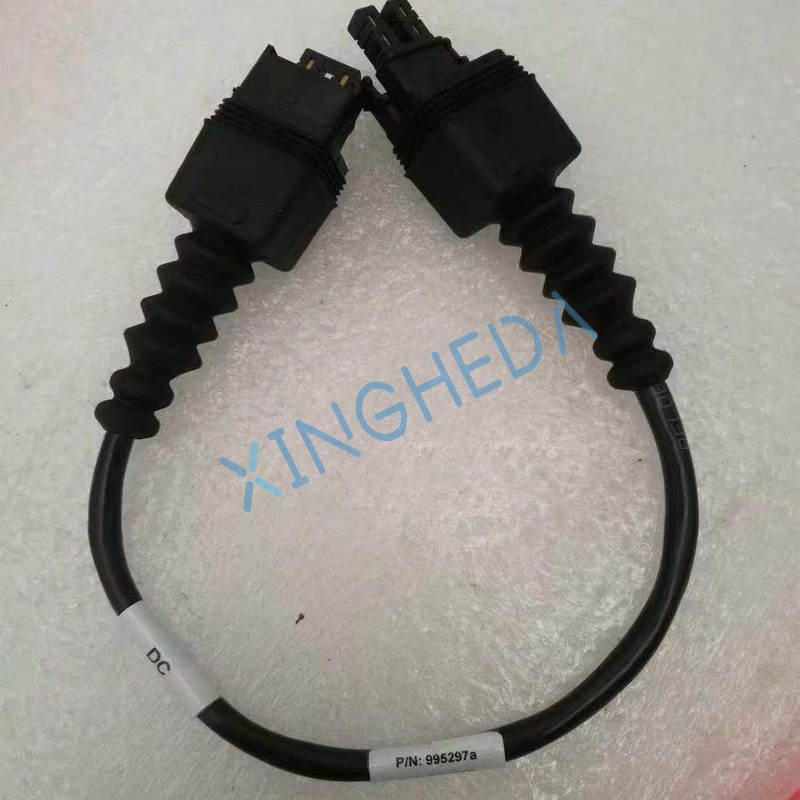

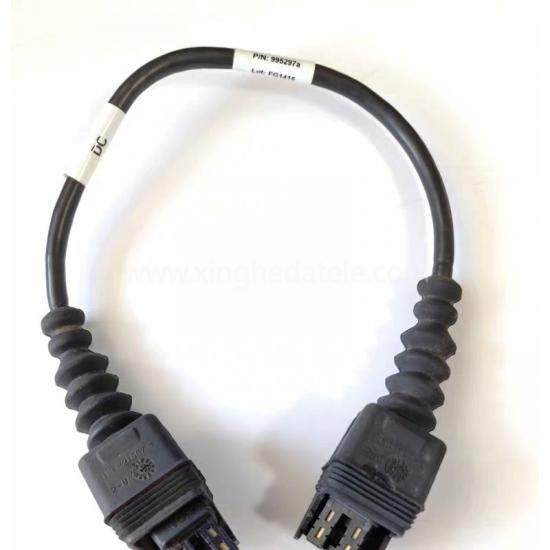

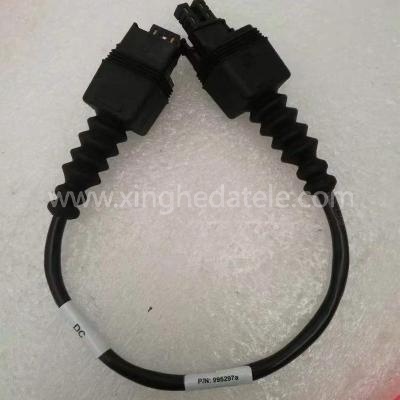

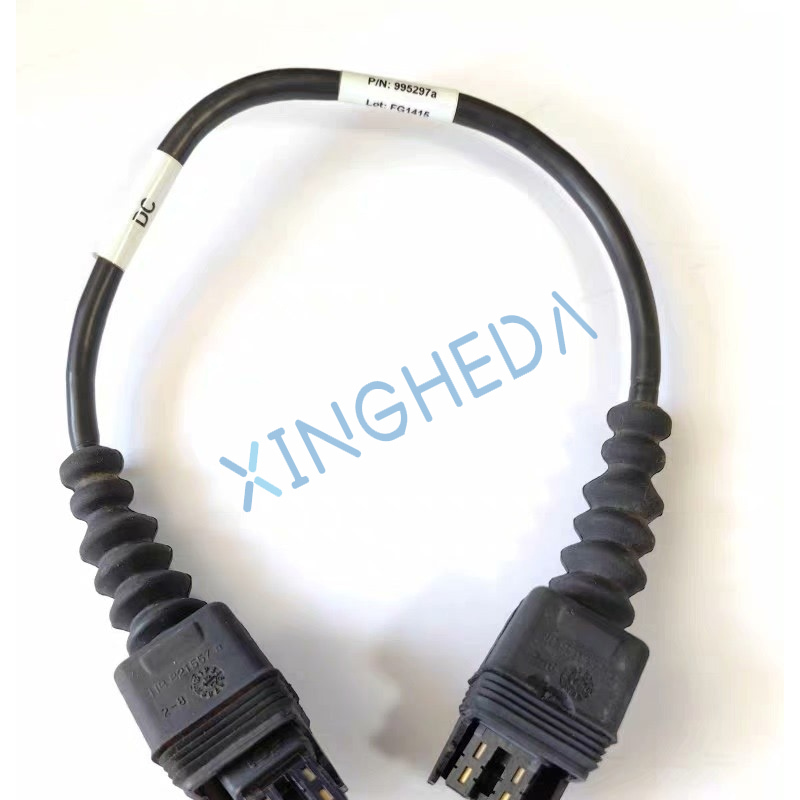

Part Number: 995297A, Nokia (NSN Ericsson) Base Station Dedicated DC Power Adapter Cable. Compatible with base station units FBBA and FBBC. It is a standard cable included in the 085101A kit.


Large stock available for immediate shipping. Contact us now to get a real-time quote and technical data sheet within 24 hours!


  • Min.Order Quantity:

    1 pc

  • Price:

    Negotiable

  • Delivery Time:

    3-5 days

  • warranty time:

    six months

  • Place of Origin:

    China

  • Payment Terms:

    T/T, Western Union, MoneyGram
Inquiry now
  • Share To :
  • Facebook
  • Linkedin
  • Youtube
  • Pinterest

Nokia Power Cord 995297A For FBBA NSN


Product Details



1. Basic Information

Part Number: 995297A

Full Name: DC Power Jumper Cable for FBBA / FBBC Baseband Modules
Supporting Kit: Standard cable included in kit 085101A
Brand: Nokia Networks

Product Category: Internal power interconnection jumper for Flexi BBU cabinet


2. Main Application

This cable is exclusively designed for power cascading of FBBA and FBBC baseband processing units inside Nokia Flexi series BBU cabinets:

  1. Power interconnection between multiple FBBA/FBBC baseband boards within the cabinet
  2. Mandatory accessory for capacity expansion when adding extra baseband boards in indoor macro stations and distributed base stations
  3. Transmits standard telecom -48V DC power only; no service or monitoring signals carried

3. Electrical & Physical Specifications

  1. Conductor: 2-core stranded pure copper, optimized for high DC current power supply
  2. Rated Voltage: Standard telecom -48V DC
  3. Cable Jacket: Industrial PVC insulation with excellent resistance to low temperature, abrasion, dust and oil contamination in equipment rooms
  4. Connectors: Molded original 4-pin male power connectors on both ends; corrugated strain relief at connector roots to prevent wire breakage from frequent bending and plugging
  5. Standard Length: 20–30 cm, short jumper for internal cabinet wiring
  6. Identification Mark: White label printed with part number 995297A on cable surface

4. Distinction from Similar Cable

  • 995297A: Pure power jumper with 2 power cores
  • 995298A: Multi-core signal & monitoring control cable, same appearance but different pin assignment inside connectors
