Huawei SmartAX MA5800 X7 OLT

The MA5800-x7 is the industry's first intelligent aggregation OLT with a

distributed architecture that is positioned as the next generation OLT for NG-PON.

  • Min.Order Quantity::

    1 pc
  • Price::

  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Huawei SmartAX MA5800 X7 OLT

Product Description

MA5800-X7 Multi-service Access Module
Main Equipment
H90Z1BPMB IEC Service Shelf, 6 fan
Main Control Board & Pinch Board Module
H901MPLB Main Processing Board MPLB
PON Access Board Module
H901GPHF 16-port Advanced GPON OLT Interface Board
H901GPSF 16-port GPON OLT Interface Board
10G G/EPON Board Module
H901XGHD 8-port Advanced 10G GPON OLT Interface Board
H901TWED 8-port Enhanced TWDM PON OLT Interface Board
Optical Module
10GE Optical Module(SFP+)
OMXD30001 Optical transceiver,SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km
GPON Optical Module
OSX002003 PON Transceiver,SFP,1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),                                                                            3dBm,7dBm,-32dBm,SC/UPC Compatible with SC/PC,SM
10G GPON Optical Module
OSG10G3001 PON Transceiver,SFP+,1270nm(RX)/1577nm(Tx),2.488Gbps(Up)/9.95328Gbps(Down),                                4dBm,8dBm,-29.5dBm,SC/UPC Compatible with SC/PC,SM
OSG10G3003 PON Transceiver,XFP,1577nm(Tx)/1270nm(RX),9.953Gb/s(Down)9.953Gb/s(Up)&2.488Gb/s(Up),   2dBm,6dBm,-28dBm,SC/UPC,SM,20km
Power Module
H901PILA Connect Power Board
Installation Material
Fiber Suite,MA5800,External Fiber Cable Suite
External Optical Fiber Set(LC-LC)
SS-OP-D-LC-M-10 Patch cord-LC/PC-LC/PC-Multimode-A1b-2mm-10m-PVC-Orange
External Optical Fiber Set(SC-SC)
SS-OP-D-SC-S-20 Patch cord-SC/PC-SC/PC-Single mode-G.652D-3mm-20m-PVC-Yellow
External Cable Suite,MA5800,External Power Cable
C0DF1D800 Power Cable,1.8m,10mm^2,2*T10^2W,H07Z-K-10^2B+H07Z-K-10^2BL,2*OT10-6,LSZH
CPOWCAB02 Power Cable,0.85m,16mm^2,Yellow&Green,OT16-6,H07Z-K-16^2Y&G,OT16-6,LSZH
Blank Panel
H80XBP0YWB01 Air Deflector Panel for Service Board Slot (Shielded)
H80XBPGPIO01 Blank Panel for GPIO Slot (Shielded)
Rack Mounting & Other Auxiliary Materials
H80B000DFK02 Cabling Channel
Software Charges  (Software&License)
NDSSMULSUB22 Per Multicast Subscriber License
H80S000ONT09 ONT Access License, Based on Per ONT
H80S00GPON09 GPON Port License,Based on per GPON Port
H80S010GPON12 10G PON Port License,Based on per 10G PON Port
H90MPLB017 MPLB V100R017 System Software Package

Huawei SmartAX MA5800 X7 OLT Product Features

Huawei MA5800 X7 uses PON/P2P to realize unified access and convergence of any media of optical fiber, copper wire and cable, and evolve the independent access network of multiple media into a unified access network to achieve unified access, convergence and management , Simplify network architecture and operation and maintenance.

Support PON/P2P full service access, one optical network supports full scene access such as home, enterprise, and mobile backhaul.

The functions of OLT and aggregation switches are integrated to simplify the network hierarchy, reduce space and energy consumption, and reduce OPEX.

The service board adopts programmable NP architecture, supports SDN-based intelligent services, and supports rapid deployment of new services.

Support virtual access network function, realize multi-service intelligent operation or develop network wholesale business, and provide better business experience.

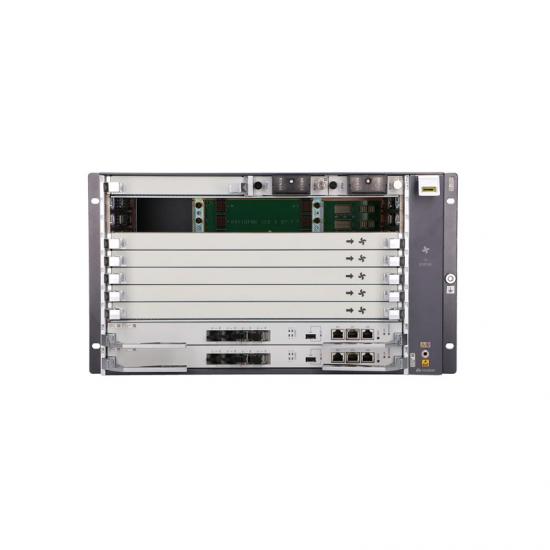

The MA5800-X7 service frame provides 12 slots, including 2 main control board slots, 2 power supply board slots, 1 general interface board slot, and 7 service board slots.

The backplane supported by the MA5800-X7 service frame is H901BPMB.

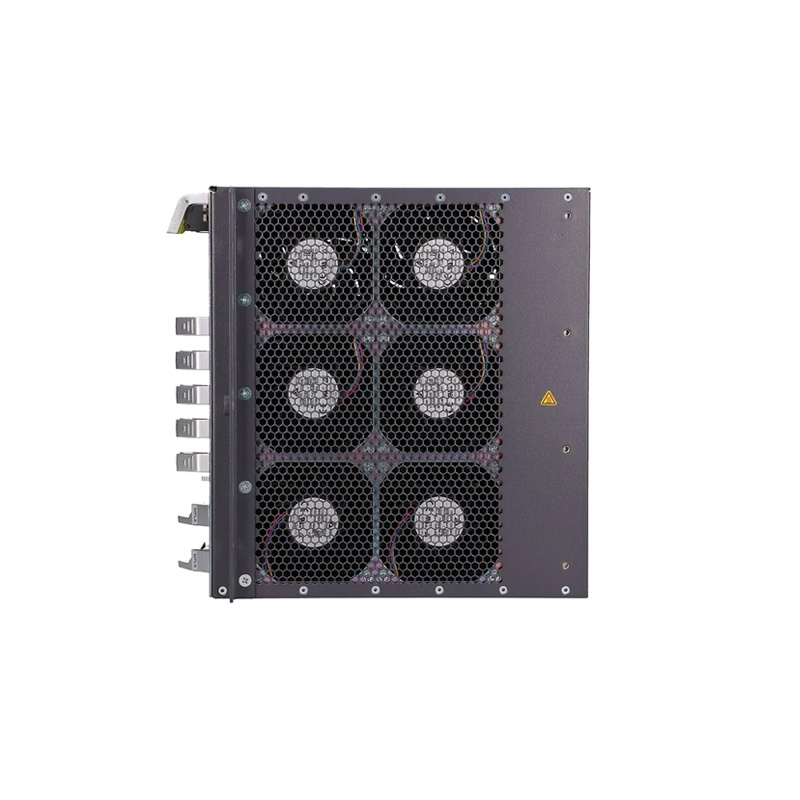

The fan frame of the Huawei MA5800 X7 business frame is equipped with 6 fans and the H901FMMA fan monitoring board, which has the functions of heat dissipation, monitoring, and speed regulation to ensure that the device works at a stable temperature.

Product Details

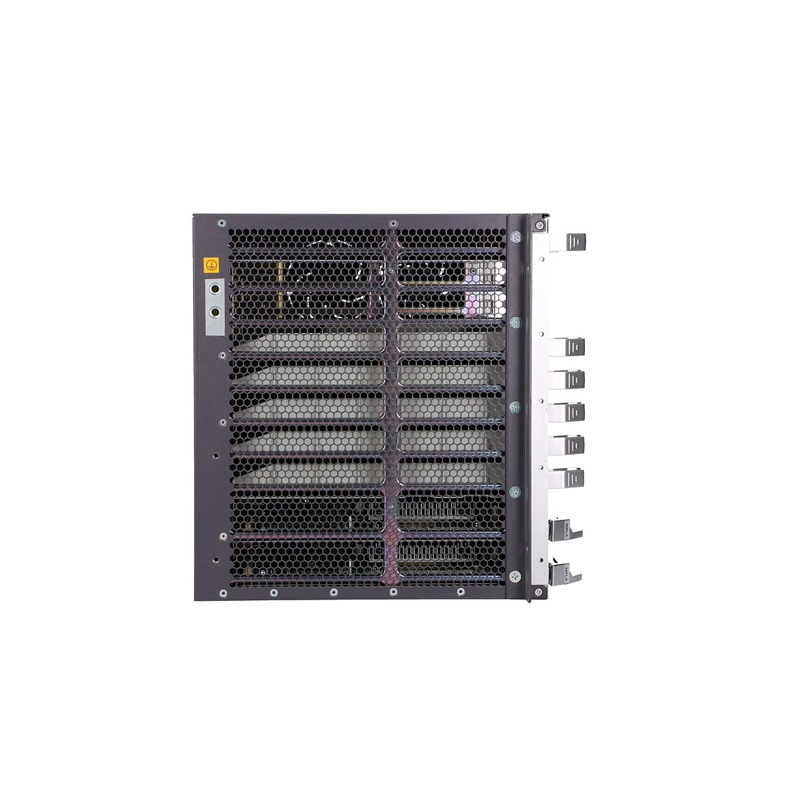

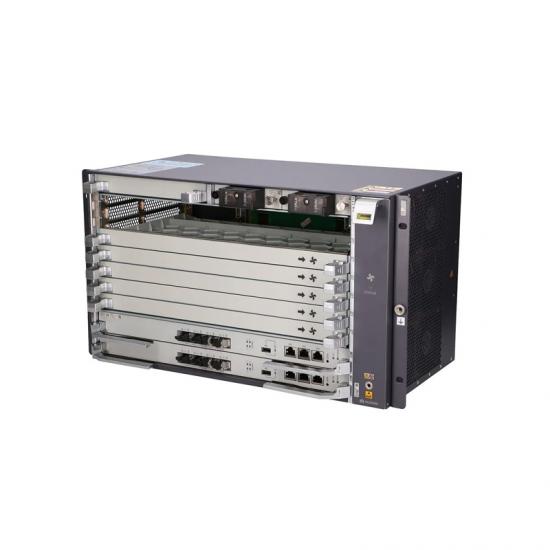

Huawei MA5800- X7

Huawei MA5800- X7

Our Advantages

We have Huawei MA5800 X7 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei MA5800 X7, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei MA5800 X7 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
