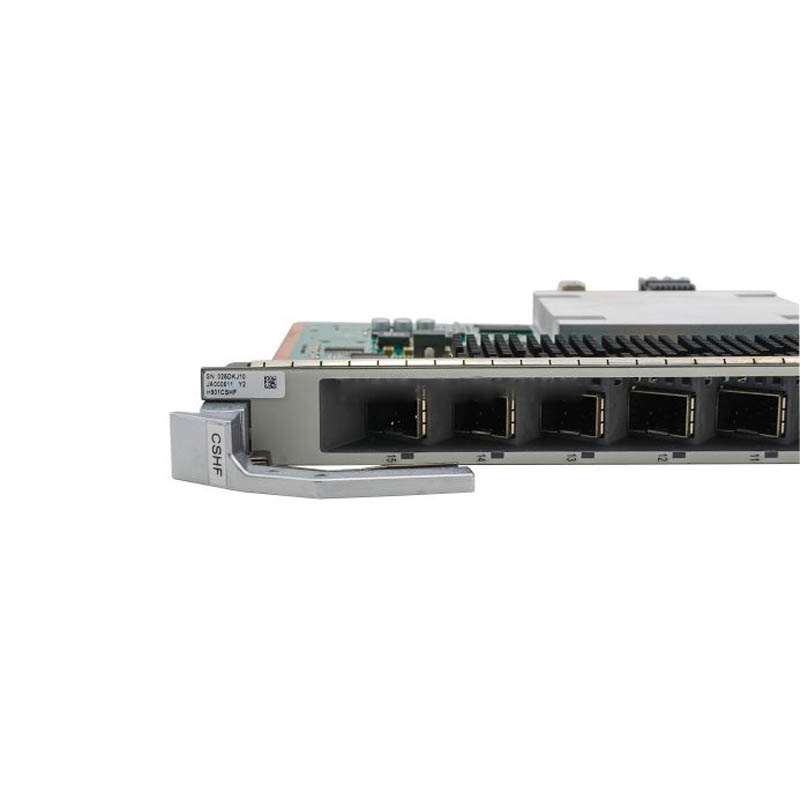

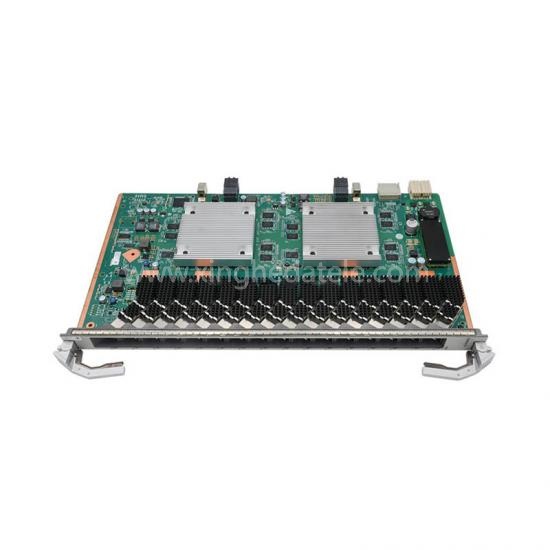

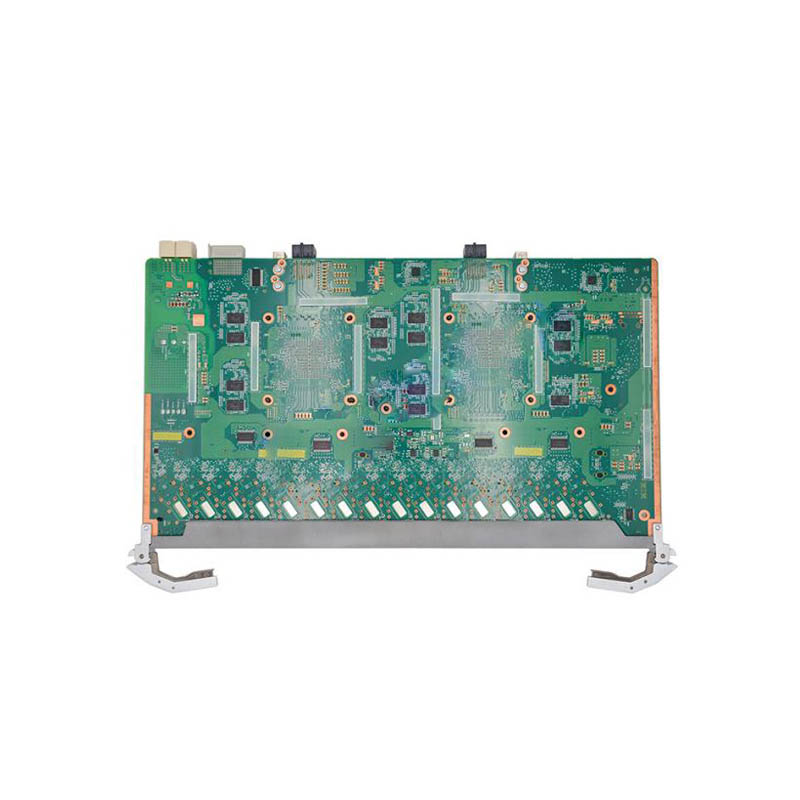

H901CSHF XGSPON GPON C+ 03025DKJ Huawei MA5800 series 16-port XGS-PON and GPON combo OLT Interface Board with XGSPON
Product Description
| Specification | |
| Service ports | |
| GPON Port | 16 XGS-PON & GPON ports |
| XGS-PON&GPON Combo PON Class C+ Module | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength |
GPON channel:
Tx: 1490 nm Rx: 1310 nm
XG-PON & XGS-PONchannel: Tx: 1577 nm Rx: 1270 nm
|
| Encapsulation Type | SFP+ |
| Port Rate |
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XGS-PON channel: Tx: 9.953 Gbit/s Rx: 9.953/2.488Gbit/s |
| Minimum Output Optical Power |
GPON channel: 3 dBm XGS-PON channel: 5 dBm |
| Maximum Output Optical Power |
GPON channel: 7 dBm XGS-PON channel: 8 dBm |
| Maximum Receiver Sensitivity |
GPON channel: -32 dBm XG-PON channel: -30.5 dBm XGS-PON channel: -29 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power |
GPON channel: -12 dBm XG-PON channel: -10 dBm XGS-PON channel: -8 dBm |
| Extinction Ratio | 8.2 dB |
|
Function |
|
| Forwarding capability | 200 Gbit/s |
| Rate mode | Symmetric rate |
| T-CONTs per PON port |
GPON: 1024 XG(S)-PON: 2048 |
| Service flows per PON board | 16352 |
| Maximum frame size |
2052 bytes 9216 bytes (jumbo frame enabled) |
| Maximum number of MAC addresses | 131072 |
|
Maximum distance difference between two ONUs under the same PON port |
40 km |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption |
Static: 48 W Maximum: 98 W |
| Operating temperature | -40°C to +65°C |
Huawei 16-port Symmetric 10G GPON and GPON combo OLT Interface Board with XGSPON & GPON C+ Optical Module
Support XGS-PON, XG-PON and GPON
Max split radio: 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XGS-PON channel: Tx: 9.953Gbit/s, Rx: 9.953/2.488Gbit/s
Interface Type: SC
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Software version requirements: V100R018C00SPH313 / V100R018C10SPH108 / V100R019C00 and later versions
H901CSHF is a 16-port XGS-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XGS-PON XG-PON and GPON access services.
Product Details
Our Advantages
We have Huawei H901CSHF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei H901CSHF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei H901CSHF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
