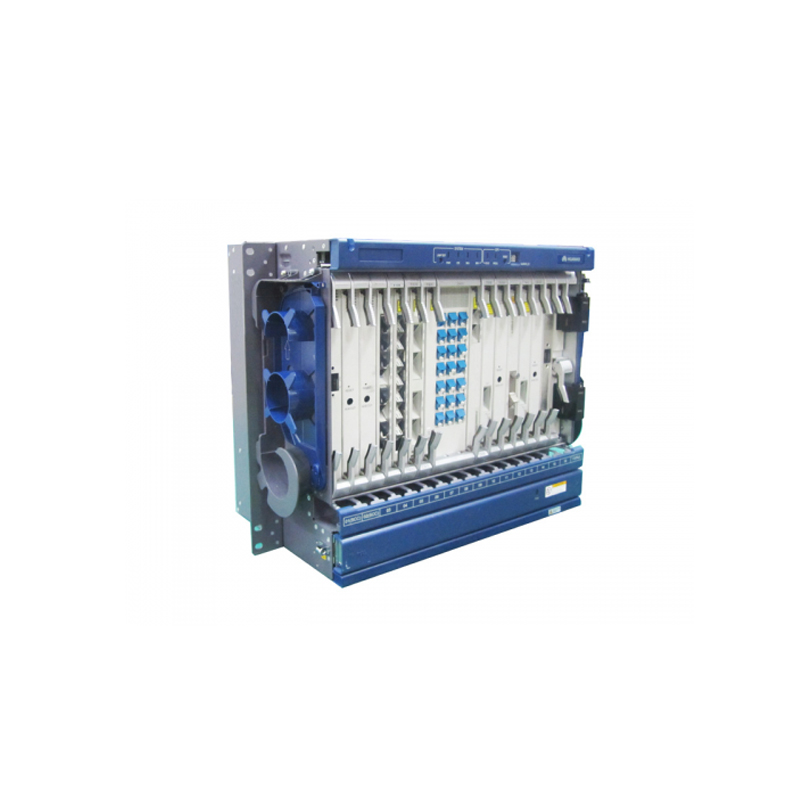

Huawei OptiX OSN 6800

OptiX OSN6800 is Huawei's next generation intelligent optical transmission

platform. It has the ability of convergence, transmission and crossover,

and supports two-layer dynamic traffic grooming structure (optical cross connection)

  • Min.Order Quantity::

    1 pc
  • Price::

  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Huawei OptiX OSN 6800

Product Description

The OptiX OSN6800 platform adopts the ITU-T standard digital packet protocol, and can transparently access various protocols such as IP/Ethernet, ATM, SDH, ESCON, and services at various speeds such as 16Mbps, 5Gbps, 10Gbps, and 40Gbps. OptiX OSN6800 wavelength division equipment adopts multi-protocol wavelength technology, and the system can transmit different types of services (voice, data, storage and video), which is more in line with the development trend of the evolution from TDM to Ethernet/data services. Dynamic optical cross connection (multi-dimensional ROADM), flexible electric layer scheduling (Any ADM) and two-level data processing and other traffic scheduling mechanisms can be provided.

◆ Line speed: OptiX OSN6800 adopts DWDM technology to realize multi-service, large-capacity and all-transparent transmission function.

◆ OTN characteristics: through the application of OTN technology, the flexibility of E2E scheduling of services is guaranteed, and the sharing of bandwidth between different services is realized. With abundant OTN overhead and simple network management operation, network maintenance and fault location can be easily completed.

◆ Ethernet features: OptiX OSN6800 supports a variety of Ethernet services, and provides a variety of complete bearing schemes.

◆ CWDM features: adopting CWDM technology, OptiX OSN6800 can provide C-band 8-wave CWDM transmission scheme in accordance with ITU-T G.694.2 standard, with single-wave access rate of 2.5Gbit/s or 5Gbit/s.

Electric cross- connect GE/ODU1/2/Any, L2 switch on VLAN, Stack VLAN
Optical cross connect ROADM: WSS at 40/80 λ, 4 to 9 degrees
FOADM : 80 λ MUX/DMUX, 2/4/8 λ DWDM OADM, 1/2/4 λ CWDM OADM
ASON Traditional WDM networks were statically configured by maintenance engineers on the NMS. Manual intervention is still needed to satisfy certain requests, such as connection set-up or tear-down, which results in a long response time. The ASON allows for automatic establishment/release of switching and connections to achieve quick service provisioning.
The OptiX OSN 6800 supports 2M, 1588v2, and synchronous Ethernet clocks, meeting the clock precision requirements of WCDMA, TD-SCDMA, CDMA2000, and LTE/LTE-A.
Service type STM-1/4/16/64/256
Any service at a rate ranging from 100 Mbit/s to 100 Gbit/s
FE/GE/10 GE/40 GE/100 GE
Capacity 80 DWDM λ /8 CWDMλ
Mount Method ETSI 300/600 cabinet, 23-inch rack
Protection Optical line 1+1 protection (1+1 OMSP)
Intra-card dual feeding /OLP dual feeding (O-UPSR)
ODU1/ODU2 SNCP & tributary SNCP protection
ODU1/ODU2 SPRing protection
Optical Wavelength Shared Protection (OWSP)
GE/ANY service SW SNCP
OTU client side 1+1 protection
SCC/XCS/PIU 1+1 protection, secondary power 1:N protection
Network topology Point-to-point, Chain, Ring, and Mesh
Transport technology DWDM (G.694.1), CWDM (G.694.2)
2.5G, 5G, 10G, 40G, and 100G line speed
5,000 km at 10G; 4,000 km at 40G/100G without regeneration
Power Supply DC: –48/–60V
Dimensions (mm) 400 (W) x 487 (D) x 295 (H)

Product Details

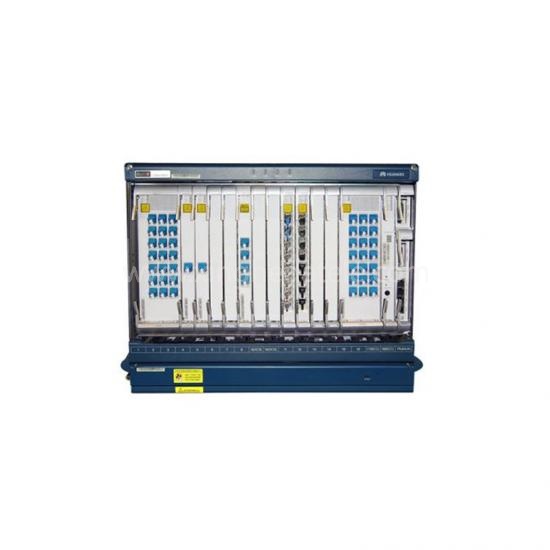

Huawei OSN6800

Our Advantages

We have HUAWEI OSN6800 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI OSN6800, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI OSN6800 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
