Huawei RRU5502 02312BSJ is a high-performance Remote Radio Unit (RRU) designed for wireless communication networks, dedicated to signal transmission and processing.
Large stock available for immediate shipping. Contact us now to get a real-time quote and technical data sheet within 24 hours!
Min.Order Quantity:
1 pcPrice:
NegotiableDelivery Time:
3-5 dayswarranty time:
six monthsPlace of Origin:
ChinaPayment Terms:
T/T, Western Union, MoneyGram

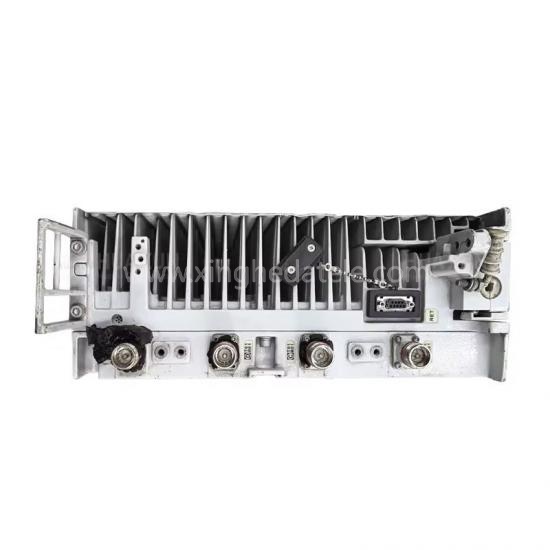

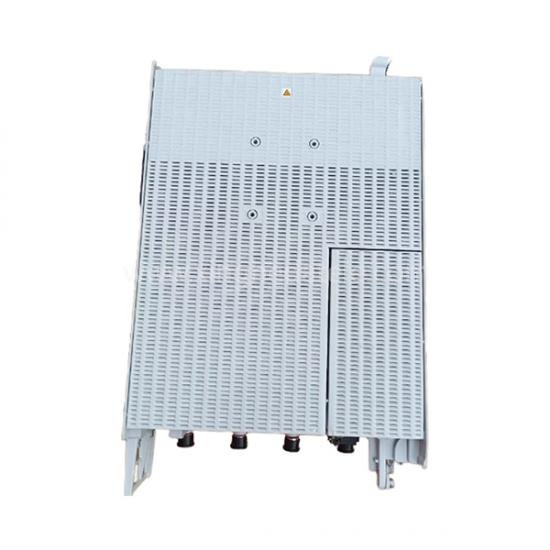

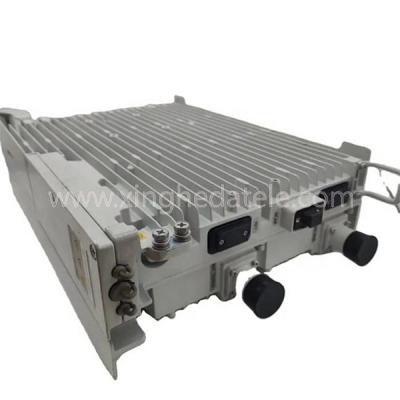

Huawei RRU5502 02312BSJ Wireless Radio Remote Unit for DBS5900
Product Description
|
Parameter |
Details |
|
Model |
RRU5502 (PN: 02312BSJ) |
|
Frequency Band |
1800 MHz (TX: 1805–1880 MHz; RX: 1710–1785 MHz; IBW: 40 MHz) |
|
Antenna Configuration |
4T4R (4 transmit, 4 receive) |
|
Typical Output Power |
4×40W (LTE FDD, 1 carrier, MIMO) |
|
Carrier Capacity |
3 carriers in single band; 4 carriers in dual bands (1800+2100 MHz) |
|
LTE Bandwidth |
5/10/15/20 MHz |
|
Input Power |
–48 V DC (–36 V to –57 V range) |
|
CPRI Ports |
2 DLC connectors; rates: 1.25/2.5/4.9/9.8 Gbit/s; topologies: star/chain/dual‑star |
|
RF Ports |
4×4.3‑10 connectors (antenna interface) |
|
RET Port |
1×DB9 (remote antenna tuning) |
|
Dimensions |
480 mm × 356 mm × 140 mm |
|
Weight |
25 kg |
|
Protection Level |
IP65 (dust/waterproof) |
|
Power Consumption |
~735 W (typical, 50% load, 25°C) |
Core Functions:
1.Baseband‑RF Conversion: Modulates/demodulates digital baseband signals to/from analog RF signals for air interface transmission.
2.Power Amplification: Boosts transmit power to 4×40W (per carrier) for extended coverage and link reliability.
3.Multi‑Mode Operation: Supports GL (GSM+LTE), UL (UMTS+LTE), GUL (GSM+UMTS+LTE), LM (LTE+NB‑IoT), etc., via software configuration.
4.VSWR Monitoring: Real‑time voltage standing wave ratio tests to detect antenna/feeder faults.
5.CPRI Connectivity: Low‑latency digital interface to BBU, supporting cascading (up to 4 levels) and flexible network topologies.
6.RRH Integration: Enables distributed deployment near antennas, reducing feeder loss and improving network efficiency.
FAQ
Q: Are your products original and brand new?
A: Yes, we only provide 100% original and brand-new products with complete factory serial numbers.
Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.
Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
