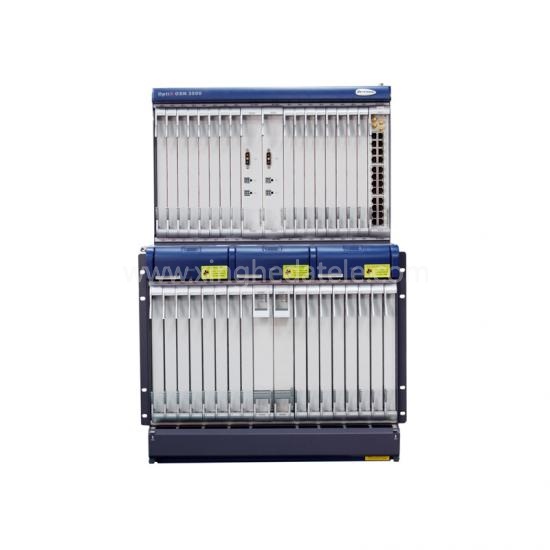

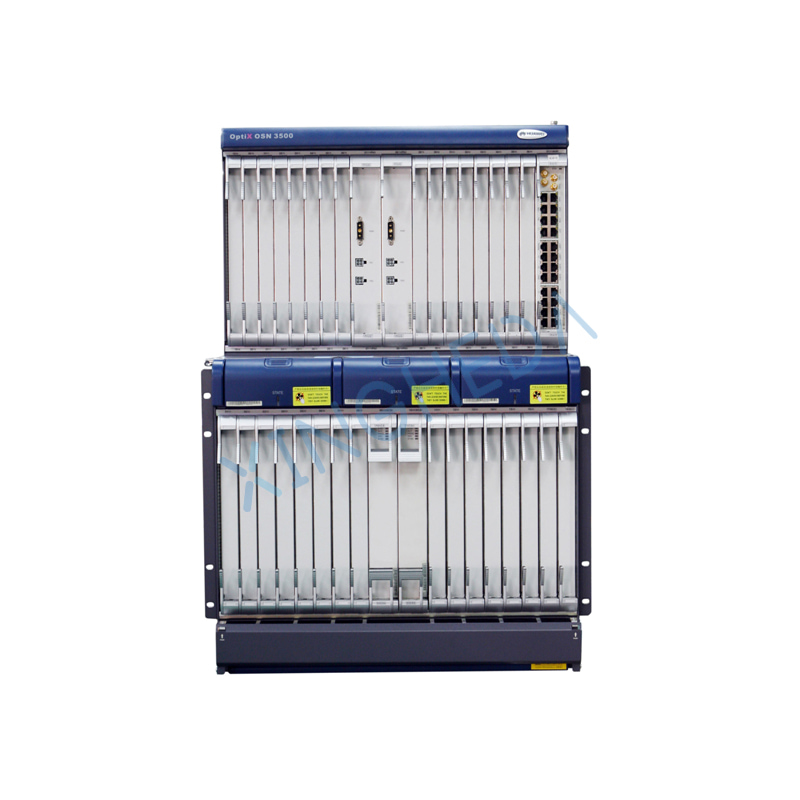

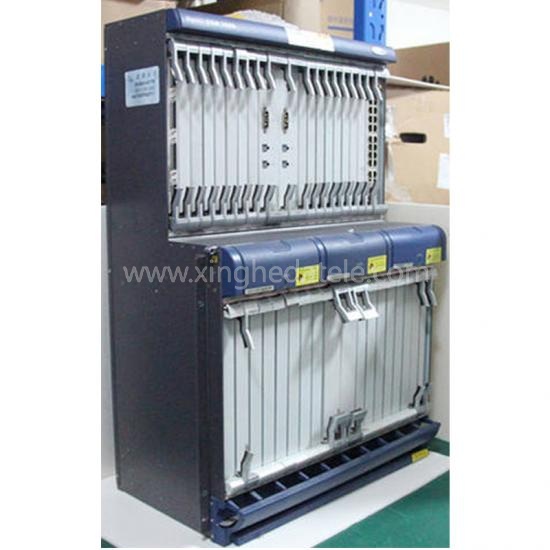

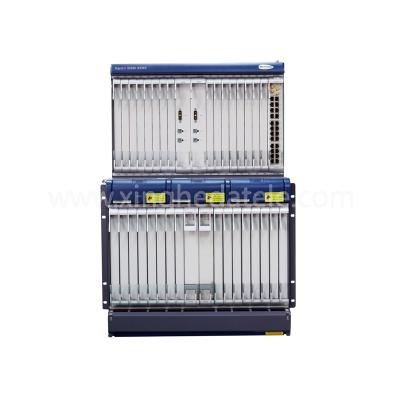

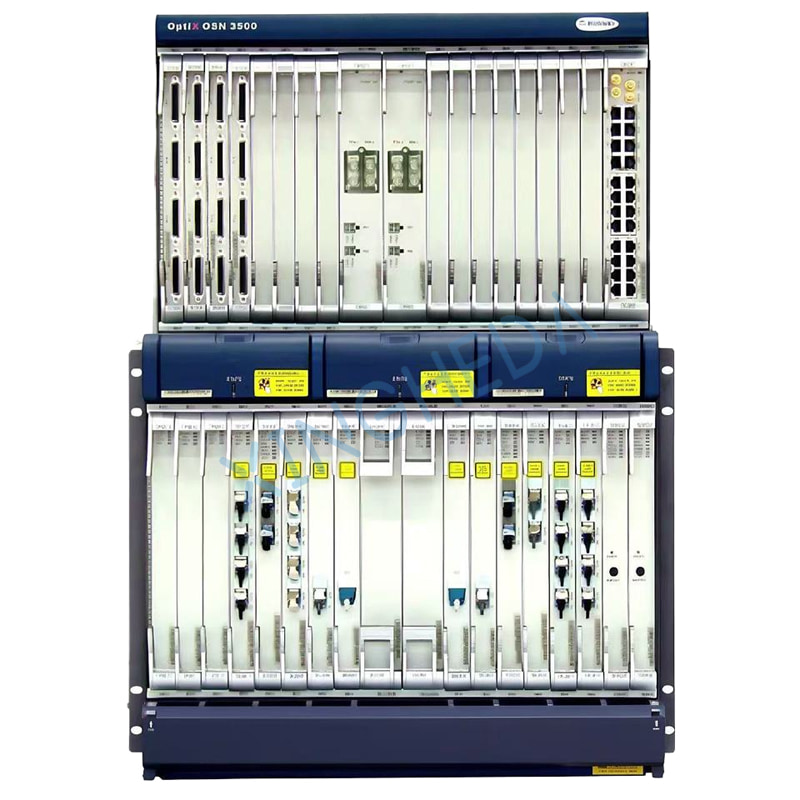

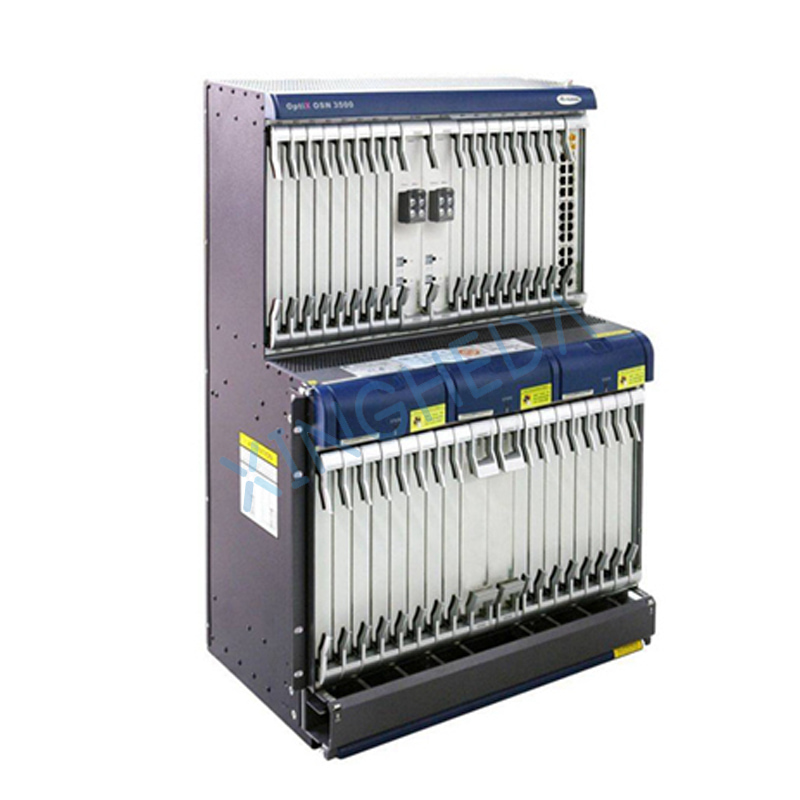

Huawei SDH Optical Transmission MSTP OptiX OSN3500

Huawei SDH Optical Transmission MSTP OptiX OSN3500

Product Description

Core Specifications

1. Switching Capacity: TDM (200Gbps higher-order, 20Gbps lower-order); Packet (160Gbps, MPLS/MPLS-TP).
2. Slots & Form Factor: 15 processing board slots + 16 interface board slots; Subrack dimensions: 722 mm (H) × 497 mm (W) × 295 mm (D).
3. Supported Services & Interfaces: SDH (STM-1/4/16/64), PDH (E1/T1), Ethernet (FE/GE/10GE), WDM (internal wavelength multiplexing), ATM, SAN (FC), 1588v2 precision time synchronization, etc.
4. Networking Flexibility: Supports chain, ring, tangent ring, intersecting ring, mesh topologies; works in pure TDM, pure packet, or hybrid (TDM+packet) modes; compatible with Huawei OSN 9500/7500/2500/1500 series for mixed networking.
5. Reliability & Maintenance: 1+1 hot-swappable power and control boards; TP-Assist tool for instrument-free commissioning, end-to-end visual configuration, automatic fault location, and comprehensive performance monitoring.
6.


Key Features

• Unified switching architecture: Seamlessly handles legacy voice (TDM) and growing data (Ethernet/MPLS) traffic on one platform, protecting existing investments while enabling IP evolution.
• Built-in WDM: Allows multi-wavelength transmission over a single fiber, reducing fiber deployment costs and enabling flexible interconnection with external WDM systems.
• ASON capabilities: Supports automatic service provisioning, protection switching, and traffic engineering, improving network resilience and operational efficiency.
•


Typical Applications

• Metro aggregation/backbone for telecom operators, carrying 5G/LTE mobile backhaul, fixed broadband, and enterprise private line services.
• Dedicated networks for finance, energy, transportation, providing high-reliability, low-latency transmission with precise time synchronization (1588v2).

Product Details

FAQ

Q: Are your products original and brand new?
A: We offer both new and used products with complete factory serial numbers.

Q: Do you provide technical specifications or data sheets?
A: Absolutely. Contact us and we will send the full PDF technical data sheet for this specific model within 24 hours.

Q: What is the warranty period for this product?
A: We offer a standard warranty (typically 6-12 months) and full technical support for all our industrial equipment.
