Whether you need new products or renovated products, takes comprehensive
warranty as the standard.we only purchase green market equipment of the
highest quality . All these are provided at the best possible price.
Min.Order Quantity::
1 pcPrice::
NegotiableDelivery Time::
3-5 dayswarranty time::
six monthsPlace of Origin::
ChinaPayment Terms::
T/T, Western Union, MoneyGram

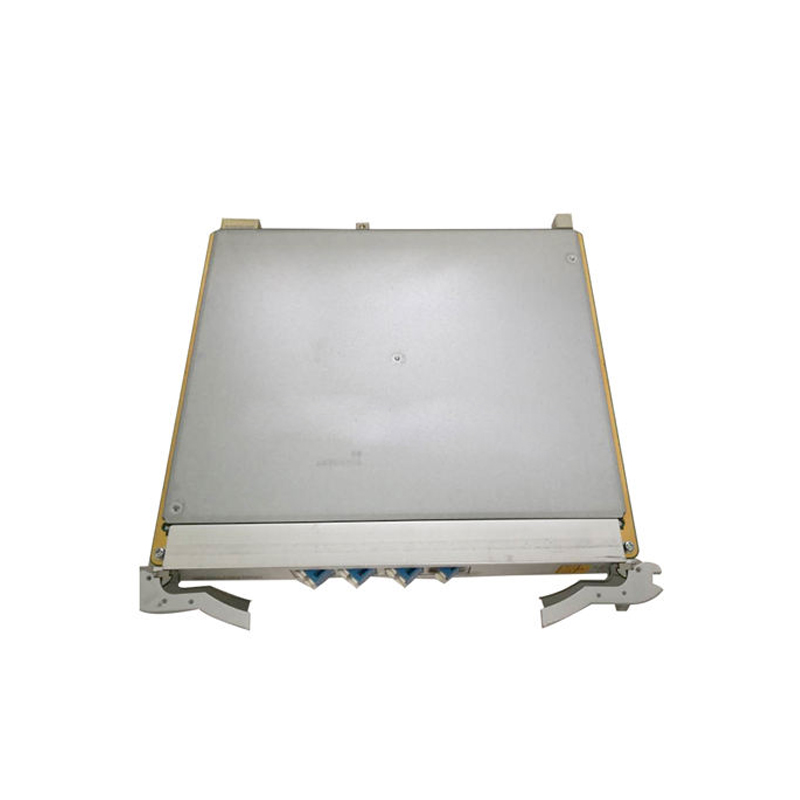

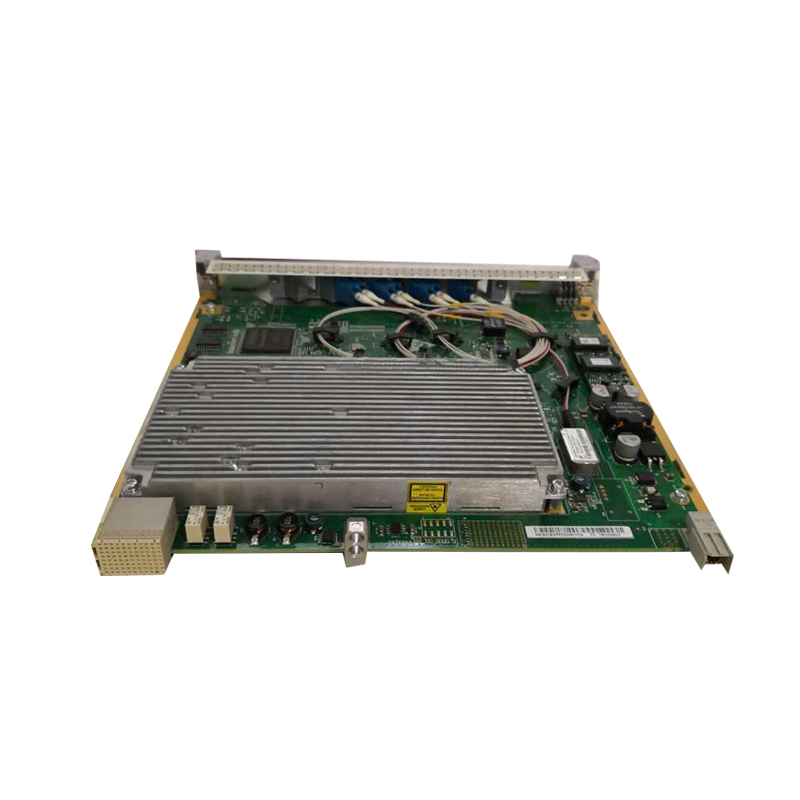

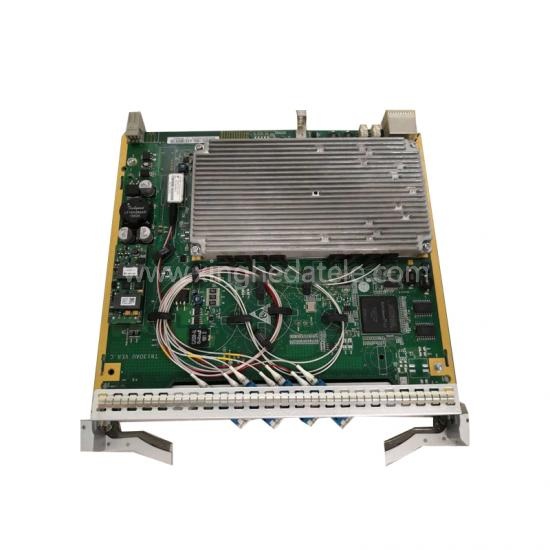

OAU1 TN13OAU105 03030NHM huawei osn 6800 OSN8800 C-BAND Optical Amplifier Unit(MAX 0dBm IN and 20dBm OUT,Gain 23-34dB) OAU1
Product Description
The OAU1 is mainly used for gain adjustment, online optical performance monitoring, gain lock, and transient control.
For detailed functions and features, refer to Table 1.
Table 1 Functions and features of the OAU1 board
| Function and Feature | Description |
|---|---|
| Basic function |
|
| Gain adjustment |
The OAU1 continuously adjusts the gain continuously based on the input optical power:
NOTE:
OAU1 Specifications only provides the value of nominal gain. Actual gain includes the noise, and the value is bigger than that of nominal gain. |
| Online optical performance monitoring |
Provides an in-service monitoring port (MON). This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic. |
| Gain lock function | The EDFA inside the board has the gain lock function. Adding or dropping one or more channels or optical signal fluctuation does not affect the signal gain of other channels. |
| Working mode |
Supports the gain locking and power locking modes.
|
| Transient control function | The EDFA inside the board has the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion. |
| Alarms and performance events monitoring |
|
| Optical-layer ASON |
Supported
NOTE:
The TN11OAU1 board does not support the setting of Equalization Based OD for Optical Signal-Wavelength Commissioning.
|
Product Details
Our Advantages
We have Huawei OAU1 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei OAU1, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei OAU1 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
