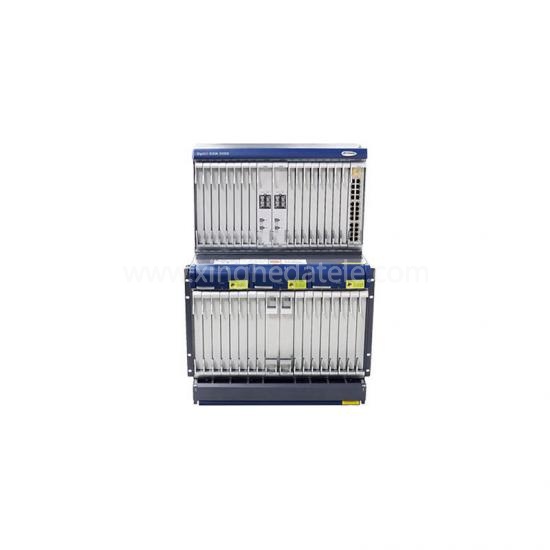

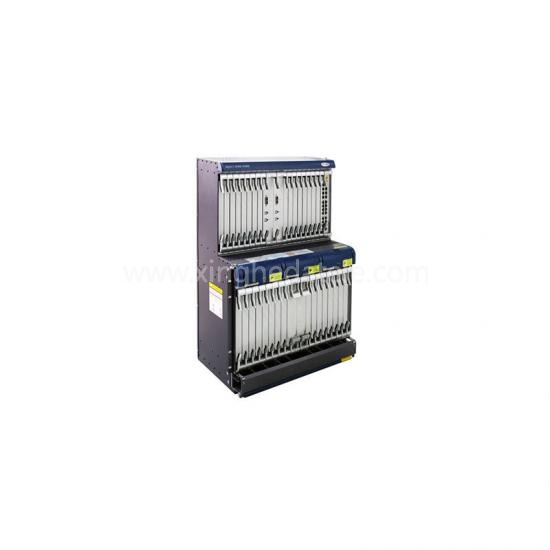

Huawei OptiX OSN 3500

Huawei OptiX OSN 3500 intelligent optical transmission system, the next

-generation intelligent optical transmission equipment.

  • Min.Order Quantity::

    1pc
  • Price::

    Negotiable
  • Delivery Time::

    3-5 days
  • warranty time::

    six months
  • Place of Origin::

    China
  • Payment Terms::

    T/T, Western Union, MoneyGram
  • Share To :
  • Facebook
  • Twitter
  • Linkedin
  • Youtube
  • Pinterest

Huawei OptiX OSN 3500

Product Description

OptiX OSN 3500

System Features

Subrack dimensions

498mm(W) X 287mm (D)X 700mm (H)

Switching capacity

Packet: 100 Gbit/s. TDM: 200 Gbit/s (high order), 20 Gbit/s (low order)

Service slots

15 slots for processing boards and 16 slots for interface boards

Highly reliable design

1+1 hot backup for power supply modules
1+1 hot backup for system control boards
1+1 hot backup for cross-connect and synchronous timing boards
Redundancy protection for fan modules

Supported interfaces

Packet transport interfaces

E1, STM-1, FE/GE/10GE

MSTP interfaces

STM-64/16/4/1, E1/E3/E4/T1/T3, FE/GE/10GE, DDN, IMA/ATM, SAN

WDM interfaces

40-channel DWDM interfaces, compliant with ITU-T G.694.1
8-channel CWDM interfaces, compliant with ITU-T G.694.2

Power Supply

48V DC; 110/220V AC (External module)

Operation Environment

Temperature Relative Humidity
Long term: 0°C to 45°C 10% to 90%
Short term: –5°C to 55°C 5% to 95%

Packet Transport Features

Service features

E-Line and E-LAN
QinQ
MPLS-TP based VPWS and VPLS
TDM PWE3: CESoPSN and SAToP, compression of idle timeslots
ETH PWE3
IGMP SNOOPING V2
Blacklist
Broadcast packet suppression
ACL

QoS features

H-QoS scheduling and traffic shaping
DiffServ mode based on traffic classification
Simple traffic classification, complex traffic classification, per hop behavior (PHB), and ACL
Committed access rate (CAR)
PQ scheduling priority, weighted fair queuing (WFQ), and PQ+WFQ queuing
Tail drop and weighted random early detection (WRED)
Eight priority queues
Shaping based on port scheduling priority

The Huawei OSN 3500 is a versatile and flexible optical transport platform designed for building and maintaining high-performance, reliable, and scalable communication networks. It supports a wide range of services, including voice, data, video, and multimedia, and is a popular choice for telecommunications companies, internet service providers (ISPs), and large enterprises worldwide.

The OSN 3500 offers several key features such as:

High scalability: It can be easily expanded from a single card up to a multiple-shelf configuration, which allows operators to flexibly deploy the system in any network scenario.

Flexibility: The OSN 3500 supports a wide range of networking topologies, from point-to-point and ring to mesh networks, making it suitable for a variety of applications.

High availability: The system has a range of protection mechanisms, including protection for card levels, service channels, and access paths, which ensures that the network remains highly available.

Product Details

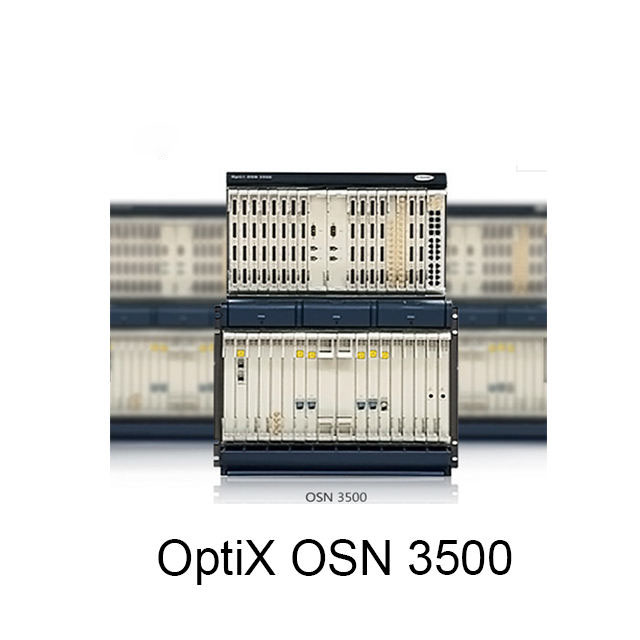

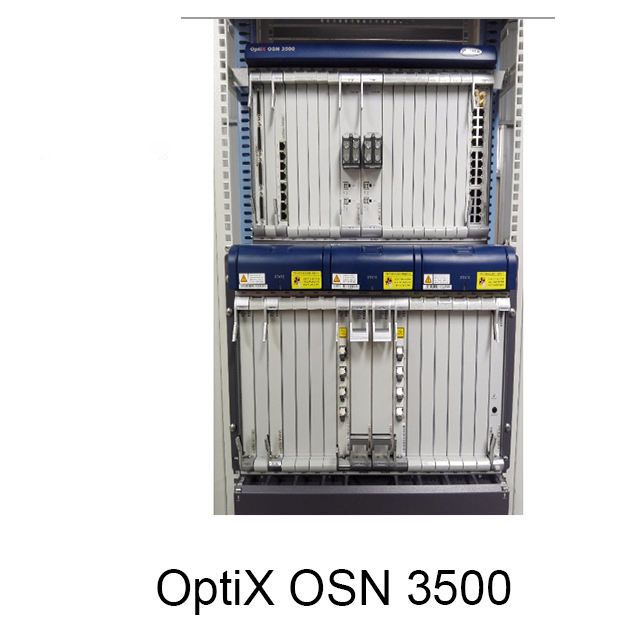

HUAWEI OSN3500


HUAWEI OSN3500


Our Advantages

We have Huawei OSN 3500 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.



Huawei OSN 3500, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.



Huawei OSN 3500 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
