Huawei RRU5304w is a 4T4R remote radio unit in the Huawei RRU5000 series, designed for the 700 MHz FDD band, widely deployed for LTE FDD and 5G NR FDD low-band coverage. It supports multi-RAT coexistence: LTE, NR, LN, LM, LMN and SUL (Supplementary Uplink), compatible with DBS3900 / DBS5900 distributed base station platforms, paired with Huawei BBU for mobile broadband coverage.
As a low-frequency RRU, the 700 MHz spectrum features long propagation distance and strong penetration. RRU5304w is ideal for rural coverage, suburban wide-area coverage, indoor deep coverage and large-area continuous 5G deployment. It adopts outdoor IP65 enclosure, supports pole / wall mounting, built-in calibration port, supports internal & external antenna calibration under new software versions, and comes with integrated power amplifier, duplexer and filtering modules to simplify site construction and reduce tower space consumption.
Large stock available for immediate shipping.Contact us now to get a real-time quote and technical data sheet within 24 hours!
Min.Order Quantity:
1 pcPrice:
NegotiableDelivery Time:
3-5 dayswarranty time:
six monthsPlace of Origin:
ChinaPayment Terms:
T/T, Western Union, MoneyGram

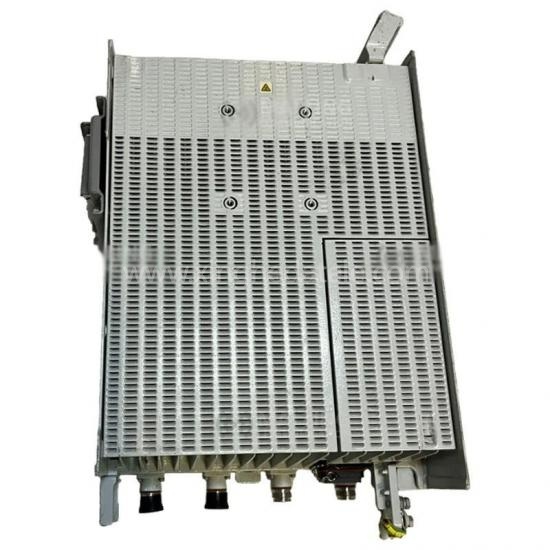

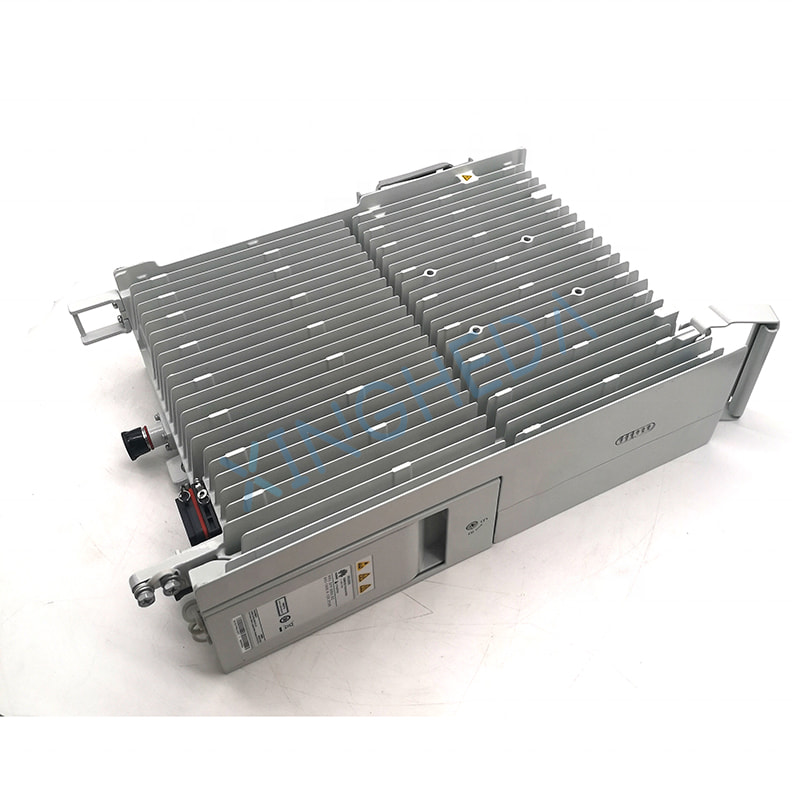

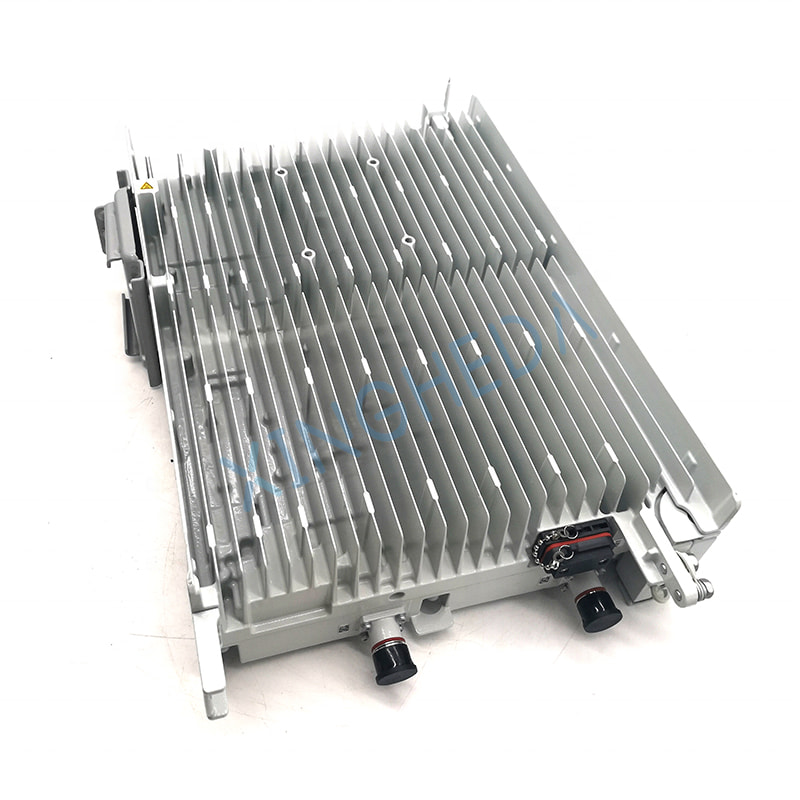

Huawei RRU5304w 02312GCS Remote Radio Unit 700MHz Band28 n28 4T4R LTE 5G NR SUL
Product Description
| Item | Parameter |
|---|---|

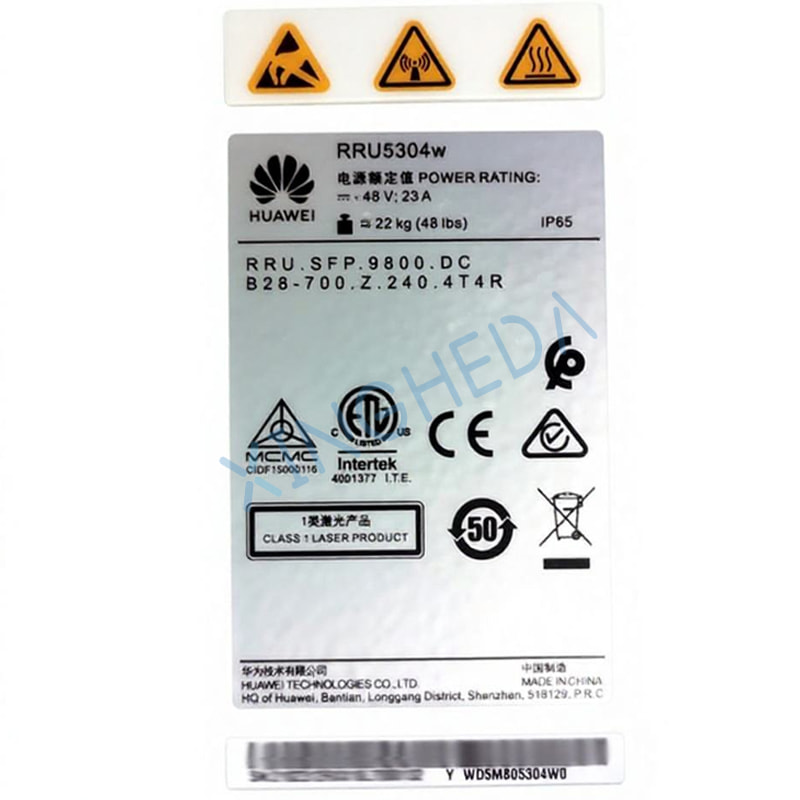

| Model | RRU5304w (Part No.: WD5MLRUMH70 / 02312GCS, 02313EHD) |
| Antenna Configuration | 4T4R |
| Operating Band | 700 MHz FDD |
| Supported RAT | LTE FDD, NR FDD, LN, LM, LMN, NR SUL |
| Compatible Platform | DBS3900, DBS5900 |
| Software Requirement | 5G RAN3.0 / SRAN12.1 / eRAN12.1 and later |
| Calibration Mode | External calibration (old version); Internal + External calibration (SRAN16.1+) |
| Cal Port | CAL port for OOK calibration signal output |
| Enclosure Rating | IP65, outdoor deployment |
| Installation | Pole mount, wall mount |
| Cooling | Natural convection cooling, fanless |
| Power Supply | -48V DC |
| Application Scenarios | Rural wide coverage, suburban coverage, deep indoor penetration, 700MHz 5G / LTE co-site networking |
Product Details
FAQ
Q1: What is the main advantage of RRU5304w?
A1: 700MHz low band with excellent propagation and penetration, 4T4R, multi-mode LTE & 5G NR co-work, fanless low failure rate, suitable for wide-area coverage.
Q2: Which BBU can match RRU5304w?
A2: It works with Huawei DBS3900 and DBS5900 BBU, need to confirm RAN software version compatibility.
Q3: Does RRU5304w support SUL?
A3: Yes, it supports NR Supplementary Uplink (SUL) for uplink capacity improvement.
