Huawei RRU5509t is a multi-band 2T4R remote radio unit from Huawei RRU5000 series, supporting combined 700 MHz (n28/Band28) + 800 MHz (n20/Band20) + 900 MHz (n8/Band8) FDD spectrum in one single radio module. It is built on Huawei SingleRAN architecture and supports multi-RAT coexistence: GSM, UMTS, LTE FDD, NR FDD and NR SUL, which helps operators reuse existing sites and realize smooth evolution from 2G/3G/4G to 5G.
This integrated triple-band RRU greatly reduces the quantity of radio units, tower space, feeder cables and installation workload. It adopts outdoor IP65 enclosure, fanless natural cooling design, pole or wall mounting, and connects with Huawei DBS3900 / DBS5900 BBU via CPRI interface. It is widely used for rural wide-area coverage, suburban continuous coverage, indoor deep penetration and low-band 5G overlay networking.
Large stock available for immediate shipping.Contact us now to get a real-time quote and technical data sheet within 24 hours!
Min.Order Quantity:
1 pcPrice:
NegotiableDelivery Time:
3-5 dayswarranty time:
six monthsPlace of Origin:
ChinaPayment Terms:
T/T, Western Union, MoneyGram

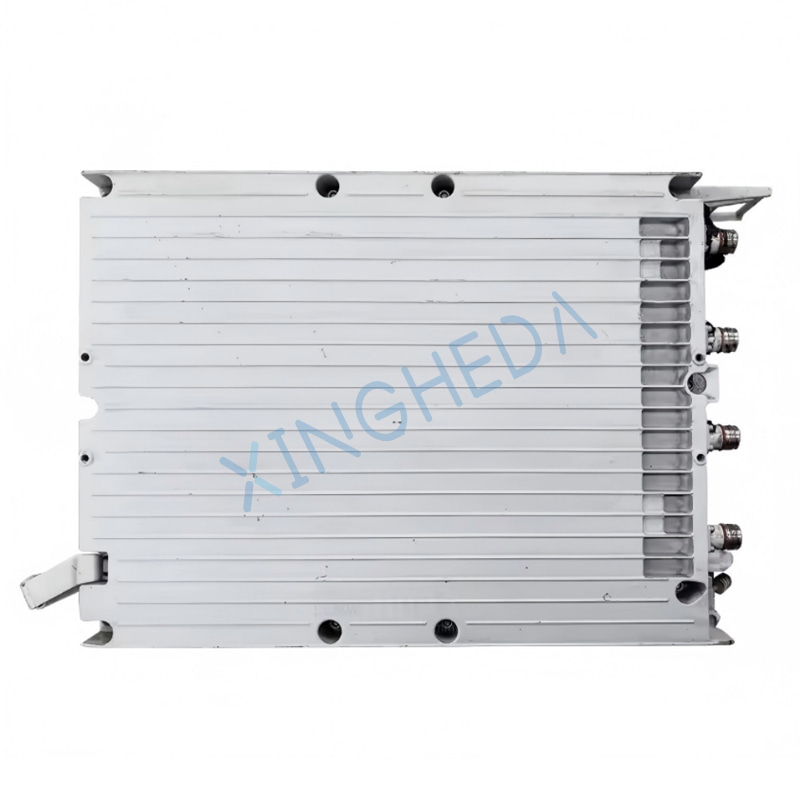

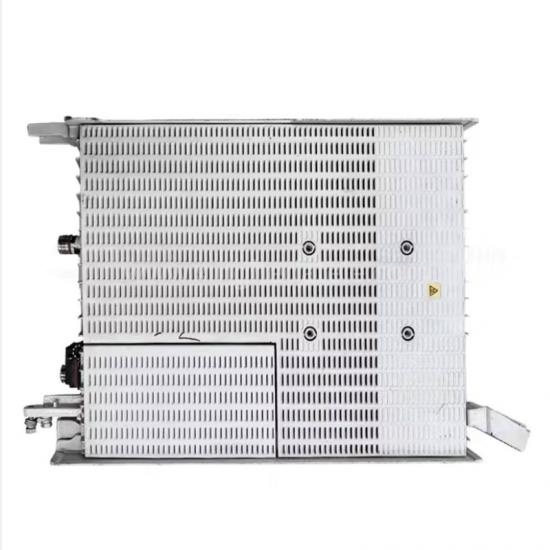

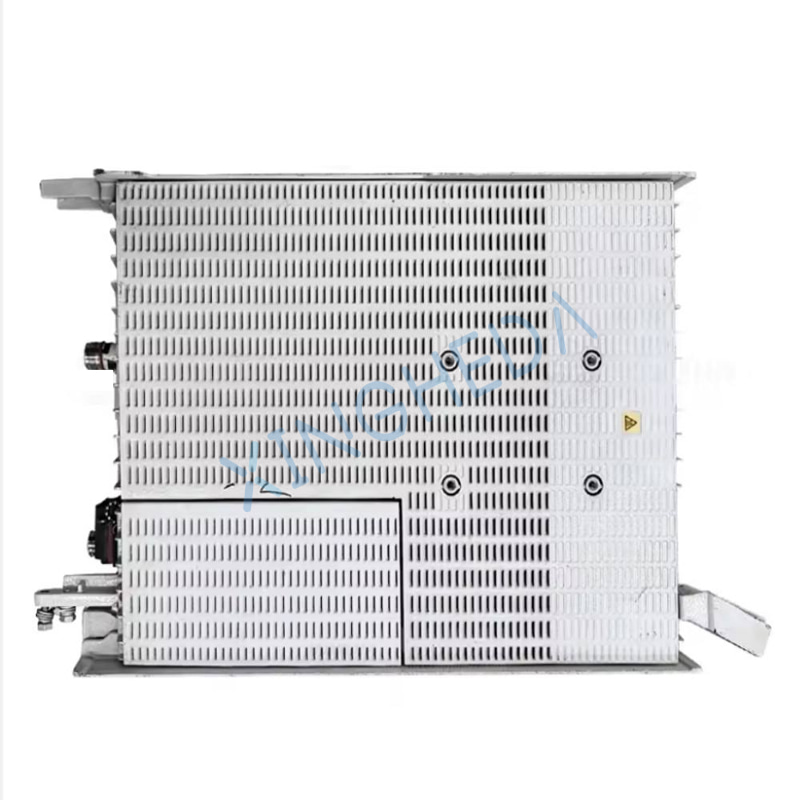

Huawei RRU5509t 02312GEB Triple-band 700/800/900MHz 2T4R Remote Radio Unit for DBS3900 DBS5900
Product Description
| Item | Parameter |
|---|---|

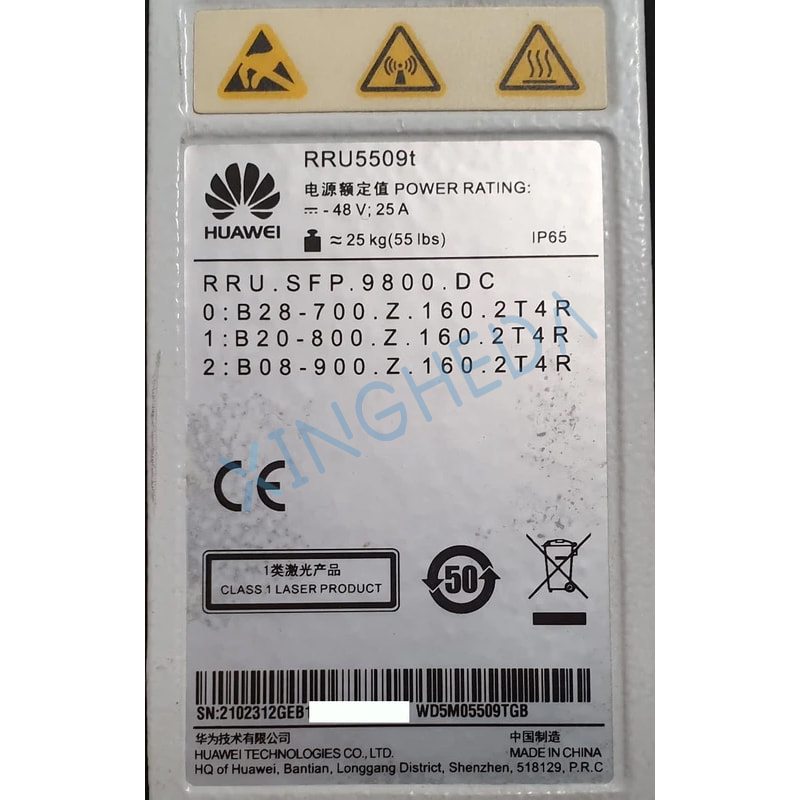

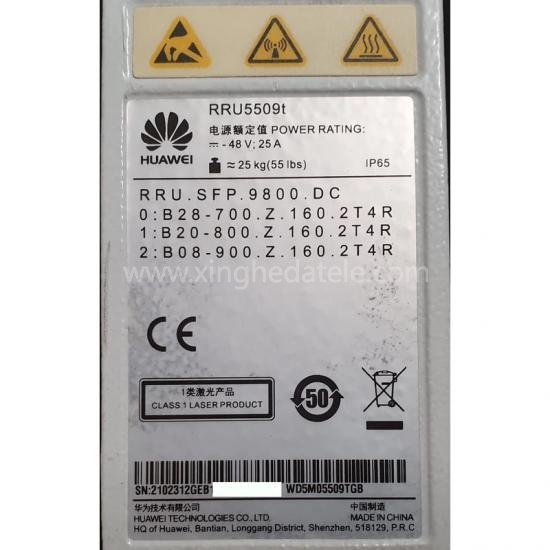

| Model | RRU5509t, Part No.: 02312GEB |
| Antenna Configuration | 2T4R |
| Operating Bands | 700MHz Band28 n28 + 800MHz Band20 n20 + 900MHz Band8 n8, FDD |
| Supported RAT | GSM, UMTS, LTE FDD, NR FDD, NR SUL, multi-RAT combination (GU/GL/LM/LN/LMN etc.) |
| Max Transmit Power | 700MHz: 2×80W; 800MHz:2×80W; 900MHz:2×80W |
| Compatibility Platform | DBS3900, DBS5900 Distributed Base Station |
| Interface | CPRI |
| Enclosure Grade | IP65, outdoor macro deployment |
| Cooling Mode | Passive natural cooling, fanless |
| Power Supply | -48V DC |
| Installation | Pole mount, wall mount |
| Typical Scenarios | Rural coverage, suburban wide coverage, low-band 5G overlay, deep indoor penetration |
Product Details
FAQ
Q1: What is the biggest advantage of RRU5509t compared with single-band RRUs?
A1: It integrates 700/800/900 three low frequency bands into one RRU. Only one radio is required instead of three separate RRUs, saving tower space, cables, power supply and site rental cost, ideal for low-band refarming and 5G overlay.
Q2: Which BBU can work with RRU5509t?
A2: It matches Huawei DBS3900 and DBS5900 BBU platforms. You need to verify the SRAN software version before configuration.
Q3: Does RRU5509t support SUL?
A3: Yes. It supports NR Supplementary Uplink (SUL) on 700MHz and 800MHz bands to improve uplink coverage and uplink data rate.
Q4: Is RRU5509t fanless? What about reliability?
A4: It uses natural convection cooling without fans. No fan wear-out risk, lower failure rate and less maintenance for outdoor remote sites.
Q5: Can RRU5509t run GSM, LTE and NR at the same time?
A5: Yes, it supports multi-RAT co-running such as GSM+LTE+NR under SRAN, flexible for gradual network upgrade.
